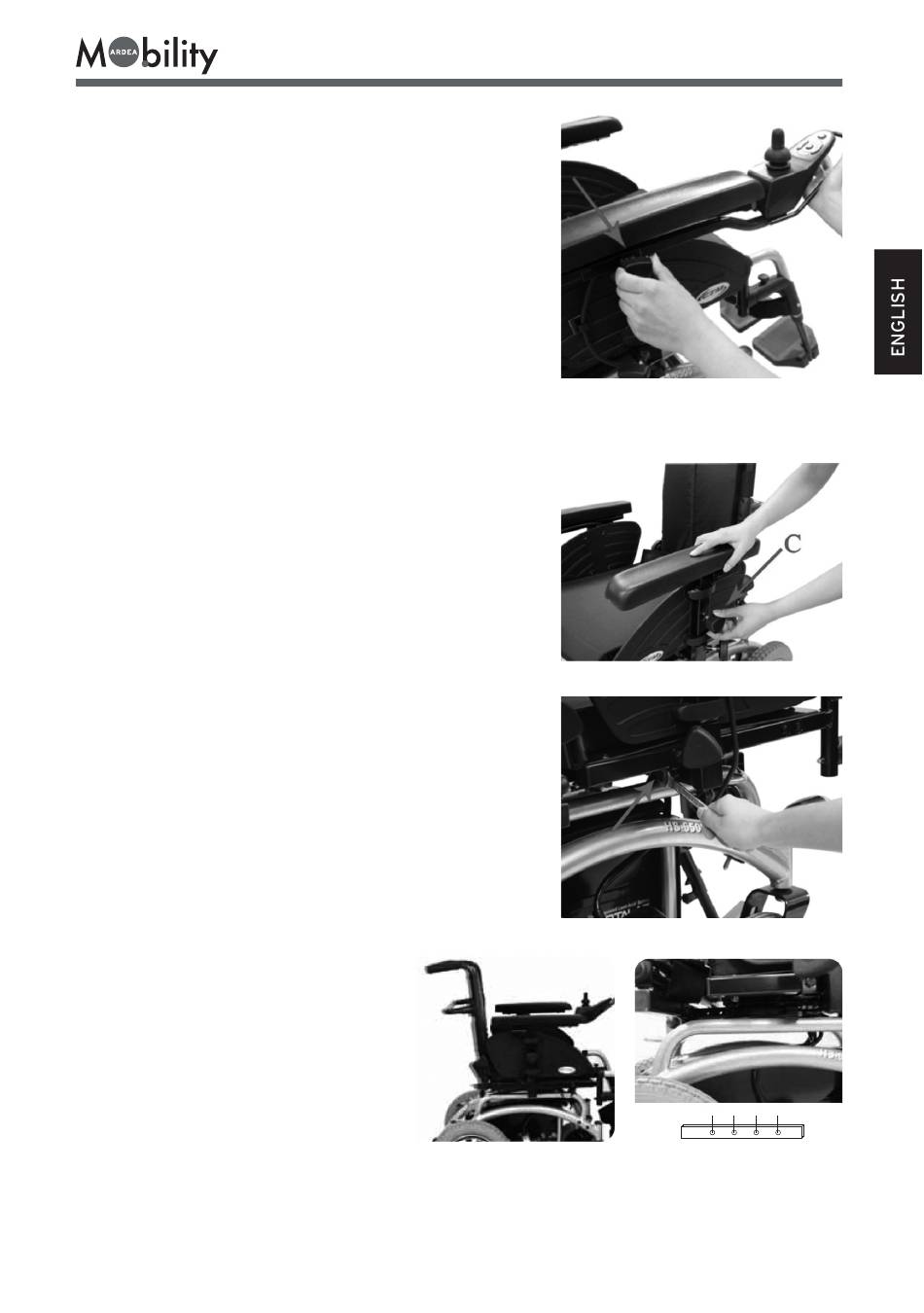

1. Position of the control joystick
1. Unscrew the knob indicated in the figure
2. Adjust the position of the control joystick support
3. Tighten the knob again
N.B. During adjustment, take care with the electric cable of the joystick, assisting it in sliding
into place
2. Armrest height
1. Unscrew the armrest locking knob (ref. C)
2. Adjust the armrest height
3. Tighten the knob firmly
N.B. Take care with the controller cables
3. Armrest width
1. Unscrew the bolt indicated in the figure
2. Adjust the armrest width
3. Tighten the bolt again
4. Seat depth
1. Remove the four screws
positioned underneath the seat
2. Choose the positioning hole
according to need
3. Tighten the four screws in the
positioning hole chosen
11
1
2
3
4
