Demtech Pro-Wedge XL Operator's Manual page 19

Geo-membrane wedge welder
Table of Contents

Advertisement

Rev. D, January 2021

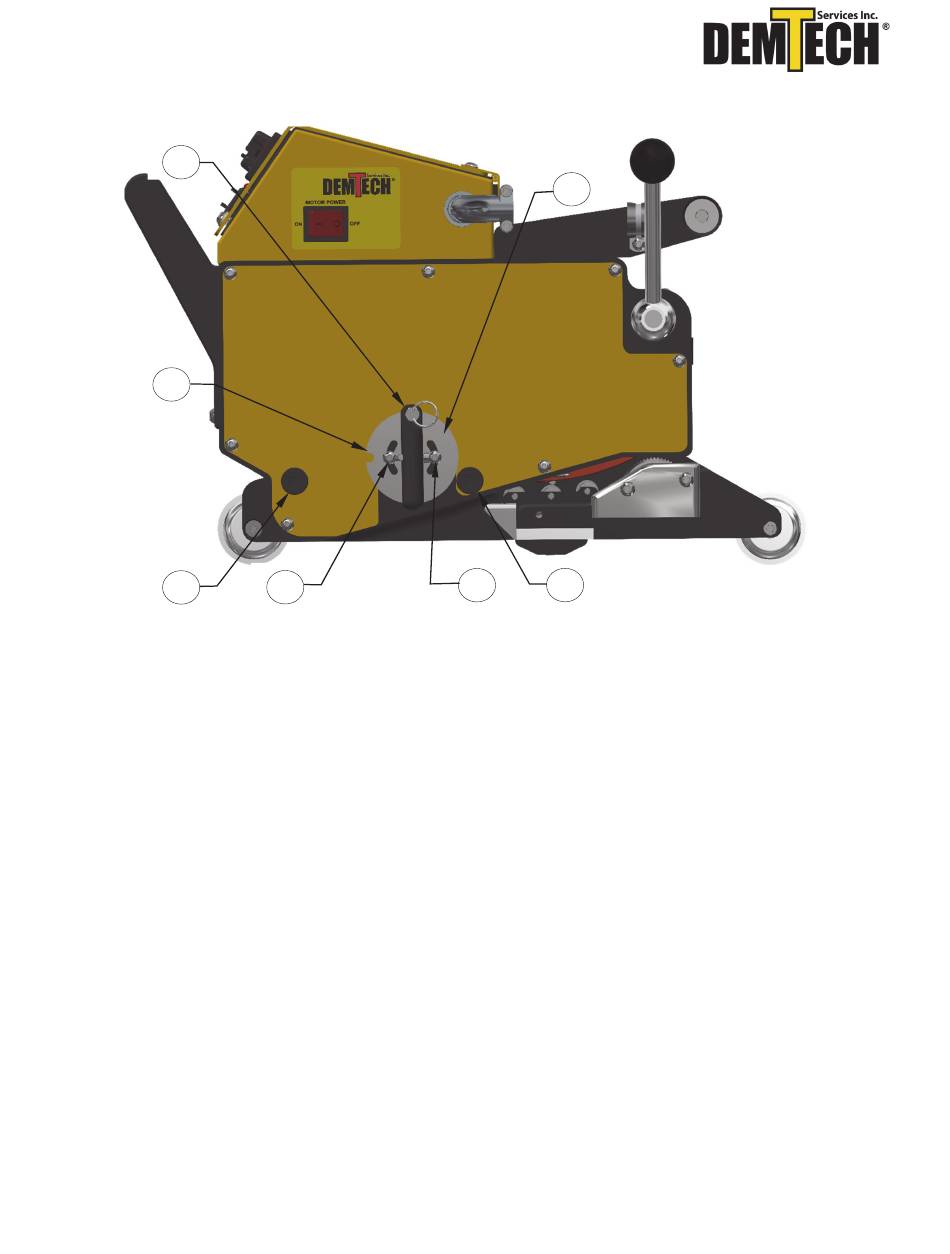

Figure 6
c. Once adjusted the Lock-In Disc must be tightened in place. Firmly hold down the
Lock-In Disc, pull out the Wedge Engagement Handle Lock-In Plunger and rotate the
Handle to a central position between the two Hold-Down Screws. Do not allow the
Lock-In Disc to move during this procedure. Firmly tighten both Hold-Down Screws
then rotate the Wedge Engagement Handle counter-clockwise until the Lock-In
Plunger drops into the Lock-In Hole. Verify that the Wedge engaged position did not
change during this procedure.
