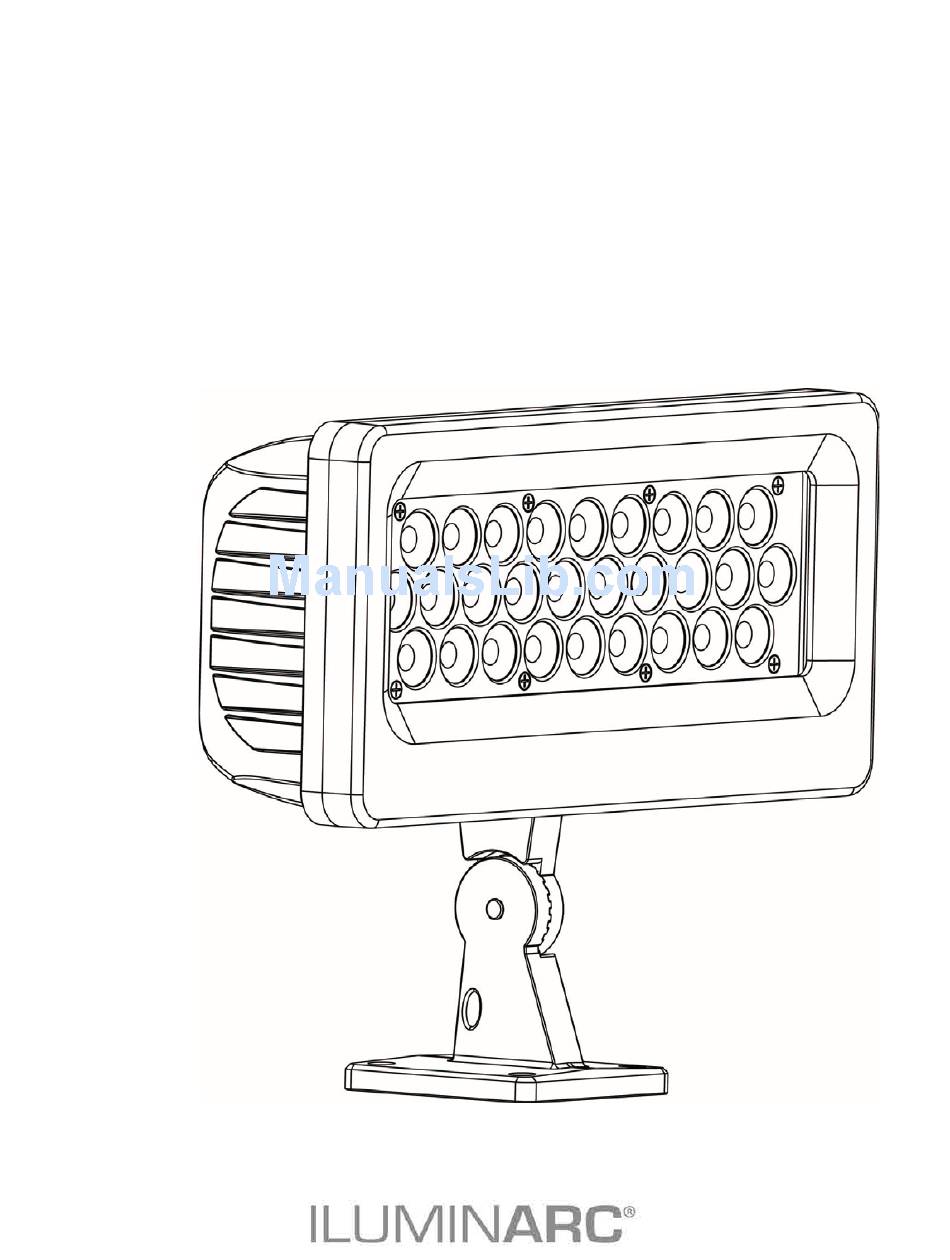

Iluminarc Ilumipanel 28 User Manual

Ip optic rgb
Hide thumbs Also See for Ilumipanel 28:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
I
l
u
m
i
p
a
n
e
l
2
8
I
P
O
p
t
i
c
I
l
u
m
i
p
a
n
e
l
2
8
I
P
O
p
t
i
c
R
G
B
R
G
B
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ilumipanel 28 and is the answer not in the manual?

Questions and answers

Related Manuals for Iluminarc Ilumipanel 28

Summary of Contents for Iluminarc Ilumipanel 28

  • Page 1 User Manual...
  • Page 2 Document Revision The Ilumipanel 28 IP Optic RGB User Manual Rev. 7 supersedes all previous versions of this manual. Please discard any older versions of this manual you may have, whether in printed or electronic format, and replace them with this version.

  • Page 3: Table Of Contents

    4. OPERATING INSTRUCTIONS ............................8 ) ............................8 LUMICODE REMOTE ADDRESSER Operation .................................. 8 DMX C ..................................9 HANNEL ALUES ARC FULL ................................9 ARC 1 ..................................10 ARC 1+D ................................10 Solid ..................................10 Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)
  • Page 4 ..................................... 11 RIMER Setting the Starting Address ............................ 11 ..................................12 ENERAL AINTENANCE ..................................12 ETURNS ROCEDURE ......................................12 LAIMS CONTACT US ......................ERROR! BOOKMARK NOT DEFINED................................. 14 ECHNICAL PECIFICATIONS Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 5: Before You Begin

    All fixtures must be connected to circuits with a suitable Earth Ground. Power Distribution Connect the bare-ended power cable from the product to a power distribution box as indicated below. Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 6: Safety Instructions

    Use caution when handling this fixture. · The RDM2go, which includes a built in ilumicode addresser along with many other useful features is now available. · The Ilumicoode addresser is required for product configuration (sold separately). Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 7: Introduction

    2. I NTRODUCTION DMX Channel Summary The Ilumipanel 28 IP Optic RGB has multiple personalities, which can be changed using the Ilumicode remote addresser. There are 4 personalities. ARC FULL HANNEL UNCTION Dimmer Green Blue Color Macro Strobe Dimming Speed...

  • Page 8: Product Overview

    Product Overview Power in DMX in/out Safety cable attachment Front of fixture Mounting bracket Bracket adjustment Cable tie location Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 9: Product Dimensions

    Product Dimensions Length Width Height Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 10: Setup

    Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Signal Distribution Connect the bare-ended signal cable from the product to a signal distribution box as indicated below. Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 11: Mounting

    Mount the fixture, using the 4 mounting points. · When selecting installation location, take into consideration programming adjustment(s) and routine maintenance. · When mounting the fixture, be sure that the location can support the weight of the fixture. Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 12: Operating Instructions

    In order to have individual addressing, connect 1 fixture at a time. · The Ilumicode will automatically power off after being idle for 1 minute. Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 13: Dmx Channel Values Arc Full

    Strobe (slow ~ fast) Dimming Speed 000 ó 009 010 ó 069 Speed 1 (fastest) 070 ó 129 Speed 2 130 ó 189 Speed 3 190 ó 255 Speed 4 (slowest) Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 14: Arc 1

    HANNEL ALUE UNCTION Dimmer 000 ó 255 0~100% 000 ó 255 0~100% Green 000 ó 255 0~100% Blue 000 ó 255 0~100% Solid HANNEL ALUE UNCTION Dimmer 000 ó 255 0~100% Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 15: Appendix

    If this is your first time addressing a fixture using the DMX-512 control protocol, we suggest jumping to the Appendix Section and reading the heading “DMX Primer”. It contains very useful information that will help you understand its use. Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 16: Maintenance

    Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will be refused. Call ILUMINARC™ and request RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.

  • Page 17: Contact Us

    Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)

  • Page 18: Technical Specifications

    Construction ..........................Cast aluminum REMOTE ADDRESSER Ilumicode ............................44444001 ORDERING DETAILS Ilumipanel 28 IP Optic 15 RGB (gray housing) ..................13028002 Ilumipanel 28 IP Optic 30 RGB (gray housing) ..................13028001 Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)
  • Page 19 CRI values. Some LED products with CRIs as low as 25 still produce visually pleasing white light. 4. Evaluate LED systems in person and, if possible, on-site when color fidelity or color appearance are important issues. Source: DOE publication: PNNL-SA-56891, January 2008 Ilumipanel 28 IP Optic RGB User Manual (Rev. 7)
