EGO HT5100E Repair Manual Line page 10

Replacing the Front Handle Set
7. Replace the front handle set if broken.
8. To replace the front switch:
(a) Remove the heat-shrinkable sleeves with a scissor, then separate the wires from the trigger
using an electric soldering iron.
(b) Replace with a new switch.

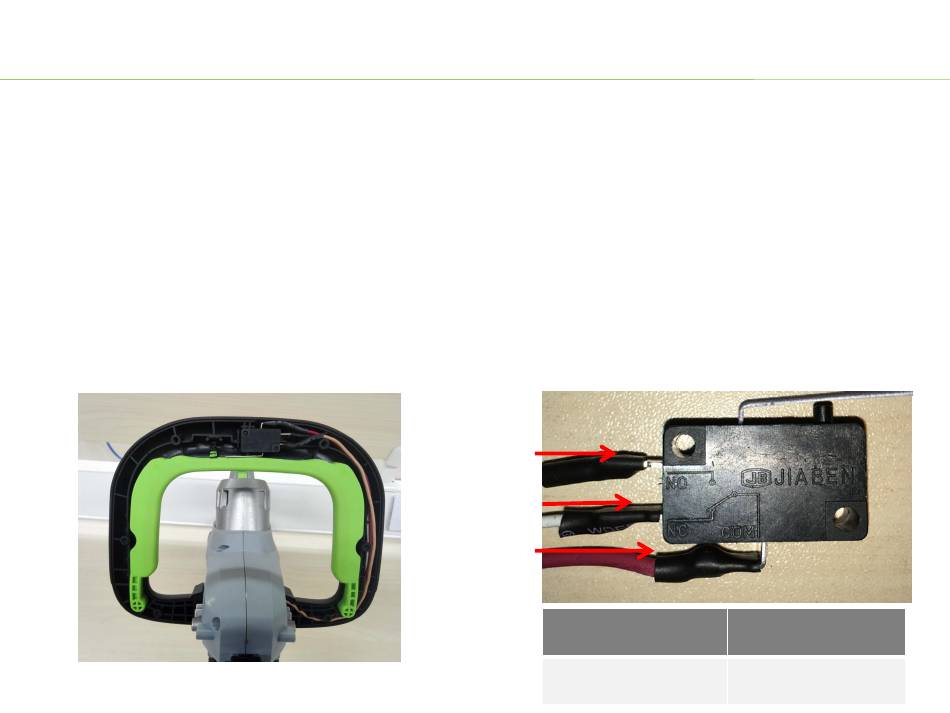

(c) Place new heat-shrinkable sleeves through the wires, then solder the wires to the switch
following the figure below.
(d) Move the heat-shrinkable sleeves to cover the switch feet and use a hot air gun to shrink the
sleeves.
Brown to NO
White to NC
Red to COM
Description
Front Switch
HT5100E/HT6500E Hedge Trimmer
Part Number
4870564001
