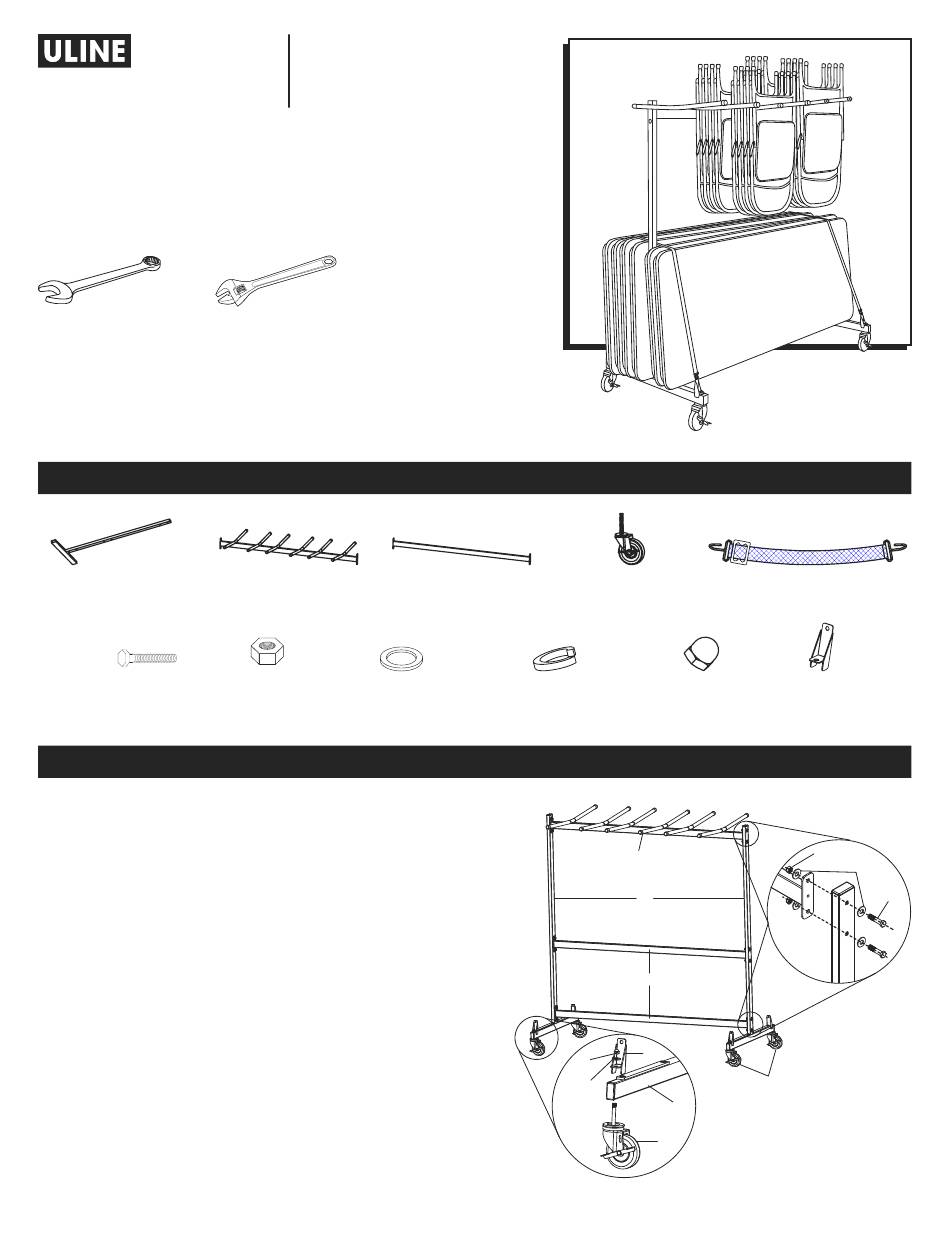

U-Line H-4787 Quick Manual

H-4787
CHAIR AND TABLE
COMBO DOLLY
TOOLS NEEDED
9/16" Wrench
Uprights x 2
Bolt x 12
1. Insert the swivel casters (A) through the base of the
uprights (B). (See Figure 1)
2. Attach the end stops (C) and the swivel casters (A)
to the uprights (B) using the spring washers (D) and
hat nuts (E). (See Figure 1)
3. Attach the cross arm hangers (F) to the uprights (B)
using the nuts (G), washers (H) and bolts (I).
(See Figure 1) Do not fully tighten bolts until
instructed.
4. Attach the cross braces (J) to the uprights (B) using
the nuts (G), washers (H) and bolts (I). (See Figure 1)
Tighten all bolts securely.
PAGE 1 OF 3
1-800-295-5510
uline.com
Adjustable Wrench
Cross Arm Hanger x 1
Nut x 12 Washer x 24
PARTS
Cross Brace x 2 4" Swivel Caster
with Brake x 4
Spring Washer x 4
ASSEMBLY
Figure 1
E
D
Para Español, vea página 2.
Pour le français, consulter la page 3.
Tie Down Strap x 2
Hat Nut x 4 End Stop x 4
F
B
J
C
A
B
A
G
H
I
0721 IH-4787
