Summary of Contents for Lupo Superpanel FULL COLOR 30 Hard

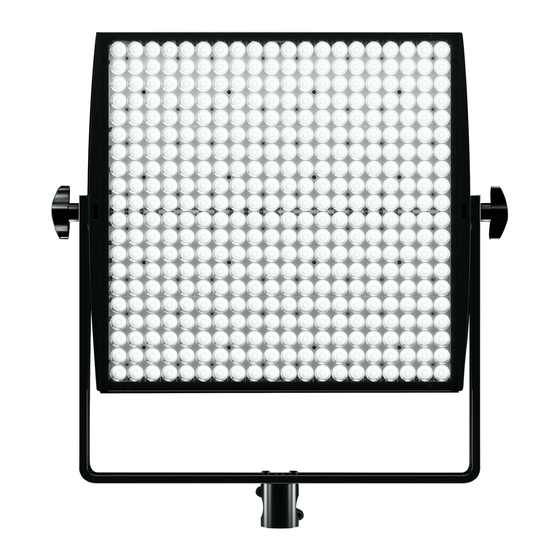

- Page 1 User Manual Superpanel FULL COLOR 30 Hard / Soft Release 4.xx...
- Page 2 Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional.
-
Page 3: Getting Started
Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling. -
Page 4: Control Panel
Functioning CONTROL PANEL - In current mode press the push button to enter the main MENU. - In the sub-menus press the push button to confirm a selection. - Rotate the knob to navigate in the main MENU and sub-menus. - Use the «... -
Page 5: Light Modes
DMX OPERATION - Advanced Settings 1. Press the push button to enter the main MENU. 2. Navigate through the main MENU with the knob and press the push button to confirm selection. 3. Rotate the knob to select DMX ADVANCED, press the push button to confirm selection. - Page 6 B. HSI MODE: Colour composition mode. It allows you to adjust hue of colour (HUE), colour saturation (SAT) and light intensity. C. RGBW MODE: RGBW colour control mode allows to individually set the R, G, B, W, Color Temperature (CT), green/magenta compensation (GN) values and to adjust light intensity D.
-
Page 7: Device Settings
DEVICE SETTINGS 1. Press the push button to enter the main MENU. 2. Navigate through the MENU rotating the button, select DEVICE SETTINGS, press the push button to confirm the selection. 3. Navigate through the FAN / DISPLAY / MENU VIEW / FILTER / LINEARIZATION / CCT LIMIT functions, rotating the button to select the desired function and press the push... -
Page 8: Package Contents
Package Contents AC Power AC Adapter AC Adapter Cord Cable Mounting Bracket AC input: 100 V - 240 V DC output: 24 V ATTENTION: Please keep the original package of the product in a safe place for warranty reasons. Superpanel Full Color 30 USB port Use USB port for firmware updates. -
Page 9: Dmx Protocol
MENU e submenus MANUAL DEVICE SETTINGS BLUETOOTH RESET DEVICE ON/OFF FAN POWER BACK BLE ACTIVE BACK CCT MODE CCT MODE 30 SEC HSI MODE HSI MODE EXIT DISPLAY 1 MIN INFO ALWAYS ON OPTIONS RGBW MODE RGBW MODE BACK MANUAL/DMX FRGBW MODE RELEASE GREEN... - Page 10 ATTENTION: The symbol - ! - on the display indicates that there is no DMX signal. DMX Channel Protocol - 8 bit MODE CHANNELS USED DMX CHANNEL POSITION 1. DIMMER 2. COLOR TEMPERATURE 3. GN COMPENSATION 4. STROBE 1. DIMMER 2.
- Page 11 DMX Channel Protocol - 16 bit MODE CHANNELS USED DMX CHANNEL POSITION 1. DIMMER - byte 1 2. DIMMER - byte 2 3. COLOR TEMPERATURE - byte 1 4. COLOR TEMPERATURE - byte 2 5. GN COMPRENSATION - byte 1 6.
- Page 12 1. DIMMER - byte 1 2. DIMMER - byte 2 3. NUMBER OF COLORS - byte 1 COPCAR 4. NUMBER OF COLORS - byte 2 5. NUMBER OF FLASH - byte 1 6. NUMBER OF FLASH - byte 2 1. DIMMER - byte 1 2.
-
Page 13: Protocol Specification
Protocol Specification COMMAND DESCRIPTION Manufacturer identification number Manufacturer ID 0x0622 (LUPO Lighting). Device Identification Model ID Model identification number 0x0000 Dayled 650 mono color 0x0001 Dayled 650 dual color 0x0002 Dayled 1000 mono color 0x0003 Dayled 1000 dual color 0x0004... - Page 14 0: linear 1: exponential 2: logarithmic 0: full speed 1: normal speed 2: high speed 3: FILTER 0x8007 low speed Lupo srl - Via V. Sassi 28/30 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it / website: www.lupo.it...
