Assembly - Hanging the Fan (continued)
6

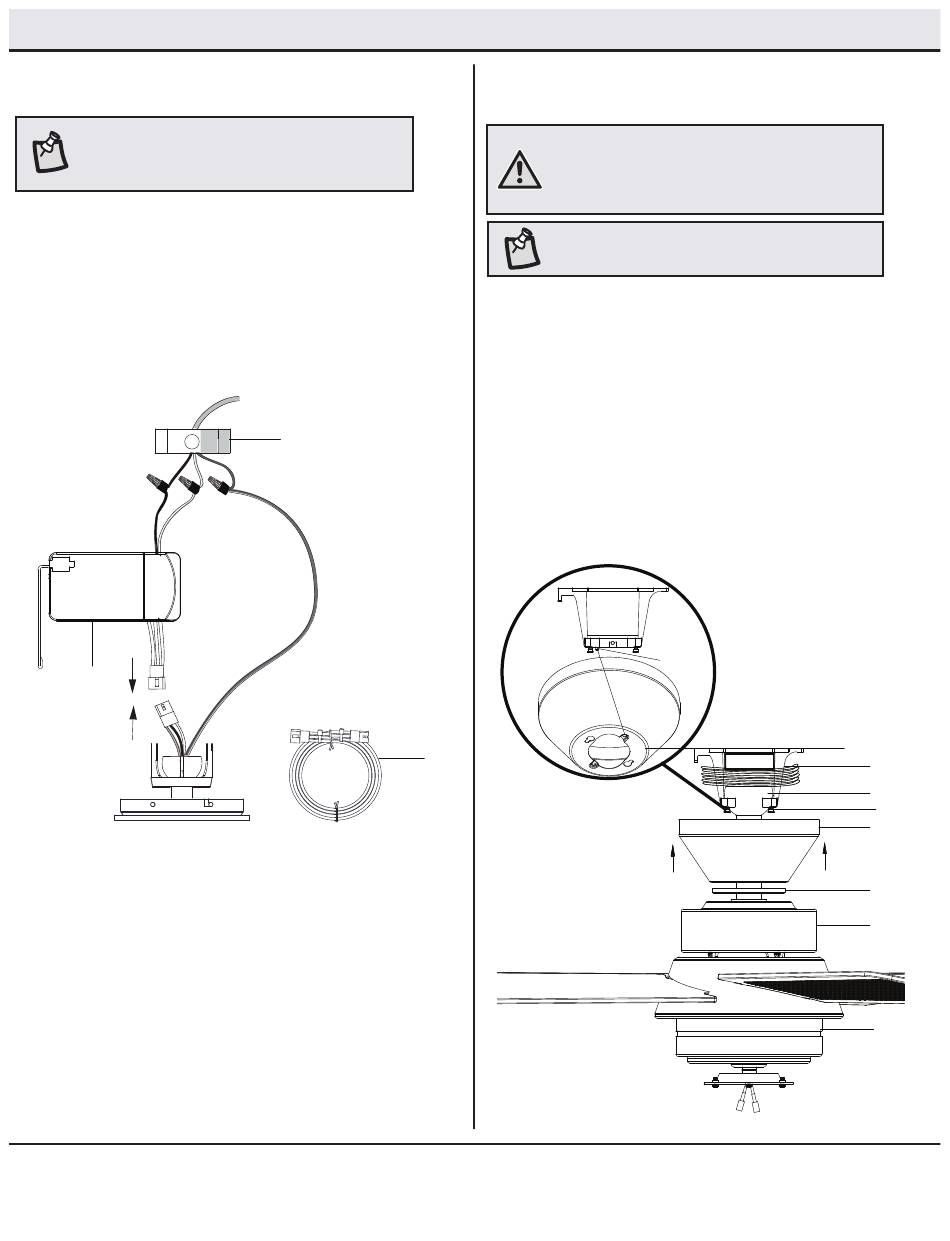

Wiring the fan to the receiver
NOTE: The fan comes with 12 in. lead wires for use with
the provided 6 in. ball downrod assembly (B). If you wish
to use a longer downrod, you can use the extension lead
wire (M) provided.
□
If using the 6 in. ball/downrod assembly (C) provided, wire the
receiver (K) to the fan wires by connecting the molded adaptor
plug from the receiver (K) with the molded adaptor of the fan
motor assembly (E) together.
□
If you wish to use a longer downrod, you can use the extension
lead wire (42 in.) (M) provided by connecting the molded
adaptor together.
K
Outlet box
in the ceiling
(MM)
Green
7
Mounting the fan-motor assembly
(standard mount)
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
□
Align the locking slots of the canopy (B) with the two
screws (CC) and alignment post (KK) in the mounting
bracket (A).
□
Push up the canopy (B) and turn it clockwise until the
alignment post (KK) engages to the round hole and the
screws (CC) engage to the key slots.
□
Firmly tighten the two mounting screws (CC).
□
Align the oval shape on the canopy (B) with the canopy
bottom cover (DD). Push up the canopy bottom cover (DD)
until the screw (CC) heads engage to the slots on the
canopy bottom cover (DD) so that the magnetic canopy
bottom cover (DD) can be attached to the bottom of the
canopy (B) properly.
M
12
KK
A
C
CC
B
DD
D
E
