ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
STEP 5 STEP
We recommend setting this playground set in
concrete for safety and security purposes.
Locate and mark the position for the legs.

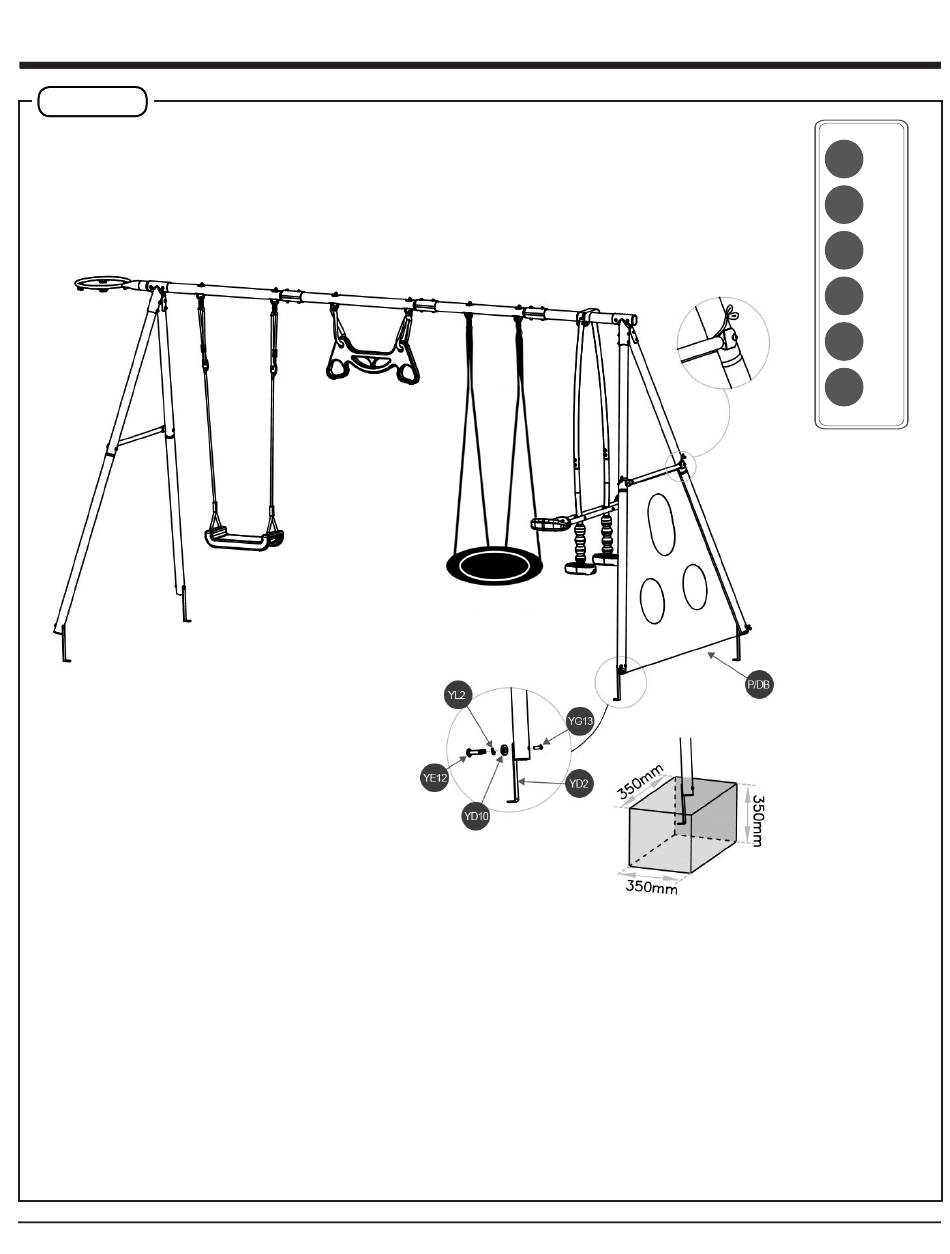

Check the dimensions shown on diagram on
page 9. Dig square holes of 14x14x14 inches
deep and wide and fill with quick set concrete.
(Not Included) The top of the concrete
should not exceed ground level.
While concrete is wet. Insert the Hook end of
the supplied (D2) Leg Bracket into the concrete.
Make sure it is positioned properly with just the
hole about 2 inches above the surface to bolt to
playset before drying.
Allow concrete to dry for 24 hours before
attaching the leg bracket to the frame poles.
Warning: The anchors must be placed under the ground and secured with concrete in order to reduce
tipping hazards
MODEL#9335MDS
Remove bolt
Slide the net over pole
Replace bolt
x4
YL2
x4
YD10
YE12 x4
x4
YD2
x4
YG13
x1
P/DB
