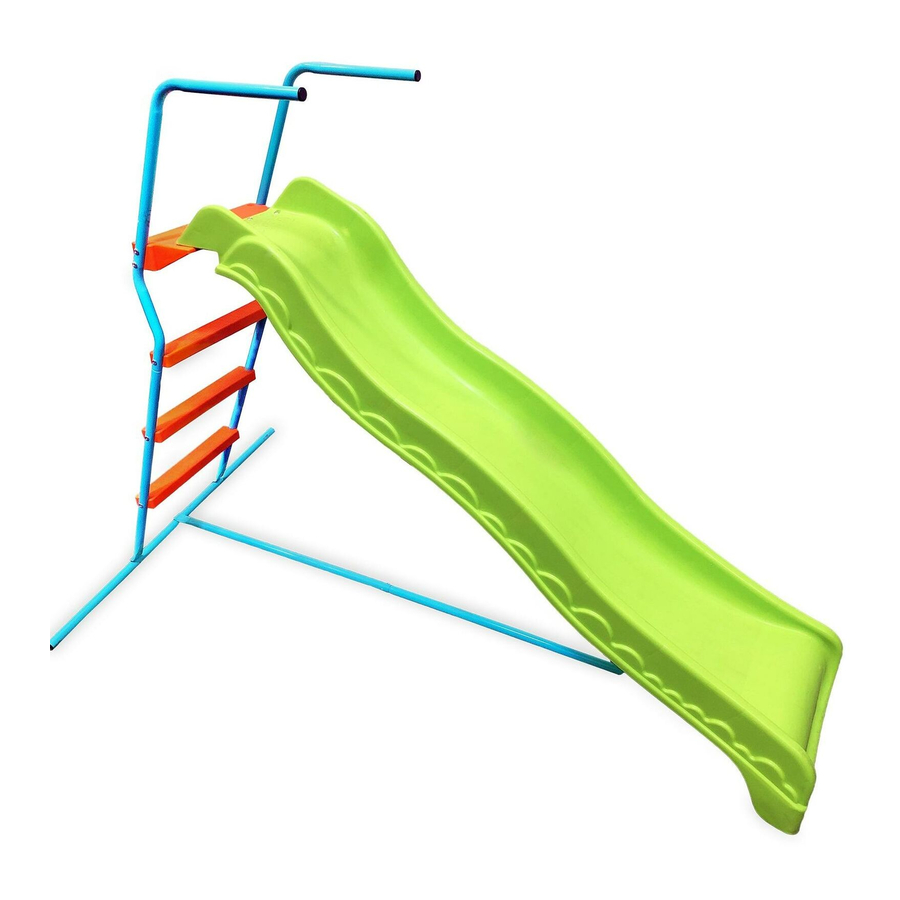

6 ft kids wavy slide
Hide thumbs Also See for 9305WS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Manual
FOR AGES:
3- 7
WEIGHT LIMIT:
75
Lbs
34 Kgs
ADULT(S) NEEDED:
TOOLS NEEDED:
WARNING/ADVERTENCIA
• ADULT ASSEMBLY REQUIRED.
• Do not allow more than one person on this
product at any time.
• Adult supervision is required.
• Please read all the instructions before using
this product.
6 FT KIDS WAVY SLIDE
MODEL# 9305WS
PRODUCT MANUAL - VERSION 03.16.02
• Consult a physician before beginning any
exercise program or strenuous activity.
• The contents of this package are not suitable
for children under 3 years of age. Contains
small parts which may cause choking.
CUSTOMER SERVICE
GQBrands.com
CustomerService@gqbrands.com
1-866-498-5269
4401 Samuell Blvd #150
Mesquite, TX 75149

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9305WS and is the answer not in the manual?

Questions and answers

Related Manuals for Pure Fun 9305WS

Summary of Contents for Pure Fun 9305WS

  • Page 1 6 FT KIDS WAVY SLIDE MODEL# 9305WS PRODUCT MANUAL - VERSION 03.16.02 FOR AGES: 3- 7 WEIGHT LIMIT: 34 Kgs ADULT(S) NEEDED: TOOLS NEEDED: WARNING/ADVERTENCIA CUSTOMER SERVICE • ADULT ASSEMBLY REQUIRED. • Consult a physician before beginning any GQBrands.com exercise program or strenuous activity.

  • Page 2: Customer Service Information

    CUSTOMER SERVICE INFORMATION Thank you for purchasing: 6 FT KIDS WAVY SLIDE MODEL# 9305WS At Global Quality Brands®, we want all of our customers to be To order these parts, or if you have any other questions or concerns completely satisfied with their purchase. Please take time to review...

  • Page 3: Limited Warranty

    TO USE. ALL MERCHANDISE IS SOLD ON THIS CONDITION, WHICH NO products are not covered by the product warranty. No other warranty REPRESENTATIVE OF GQ BRANDS® CAN WAIVE OR CHANGE. beyond that specifically set forth above is authorized by GQBrands®. MODEL# 9305WS...

  • Page 4: Important Message

    WARNINGS IMPORTANT MESSAGE WARNING - PLEASE READ ADULT ASSEMBLY REQUIRED CHOKING HAZARD - Small Parts NOT for children under 3 years of age. WARNING: While every attempt is made to ensure the highest degree of protection in all equipment, we cannot guarantee freedom from injury. The user assumes all risks of injury due to use.
  • Page 5 • At the time of disposal, this item must be and stored inside. completely disassembled and separated into its component types (metals, plastics) for • Owners shall be responsible for maintaining recycling or pick-up according to local the legibility of the warning labels. ordinances for sanitation pickup. MODEL# 9305WS...

  • Page 6: Assembly Warnings

    ASSEMBLY WARNINGS • When you are ready to start, make sure that you have the correct tools • Note: As the 30mm Bolt (1 PC), 35mm Bolts (5 PCS, used to assemble at hand, and adequate space for assembly. Please refer to the table frame) and the 40mm Step Bolts (6 PCS, used to assemble ladder for part descriptions and numbers.
  • Page 7 Hand Rail Tubes M6 25mm Bolt Spanner Wrench M6 Washer Ground Anchor Spring Washer Chute Base Tube Dome Nut End Caps Base Tie Bar (Ladder) 40mm Step Bolt Ladder Step 15mm Bolt Ladder Stabilizer M6 Square Washer Slide Chute MODEL# 9305WS...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 1: A. Insert a M6 Square Washer (S) into each slotted receptacle in the bottom of the 3x Ladder Steps (H) B. Assemble the steps to the Lower Handrail Tubes (L). NOTE: During this assembly step, ensure that the Ladder Steps (H) are oriented correctly, so they will be horizontal when the ladder is assembled.
  • Page 9 B. Secure the Slide Chute (J) to the Ladder Frame using 2x 35mm Bolts (B), 2x Washers (D), 2x Spring Washers (E), and 2x Dome Nuts (F). NOTE: Ensure all bolts are fully tightened and flush to the tubing before continuing. MODEL# 9305WS...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 4: A. Secure the Tie Bars together using 1x 25mm Bolt (C), 1x Washer (D), 1x Spring Washer, and 1x Dome Nut (F). Tie Bar (Chute) K Tie Bar (Ladder) G B. Attach the Base Tie Bar (Chute) (K), to the Chute Bottom Support Tube (P) using 1x 30mm Bolt (A), 1x Washer (D), 1x Spring Washer (E), and 1x Dome Nut (F).
  • Page 11 Ladder Stabilizer Bar (I) securely to the ground using the 2x Ground Anchors (O) as shown below. Ensure that the anchors are inserted into suitable ground and do not come loose easily before allowing use of the Wavy Slide. MODEL# 9305WS...

  • Page 12: Care And Maintenance

    CARE & MAINTENANCE • If any part of the slide requires cleaning, simply wipe with a damp • IMPORTANT: While no regular maintenance is required, you must cloth. inspect the slide before each use and replace any worn, defective, or missing parts. The following conditions could represent •...
