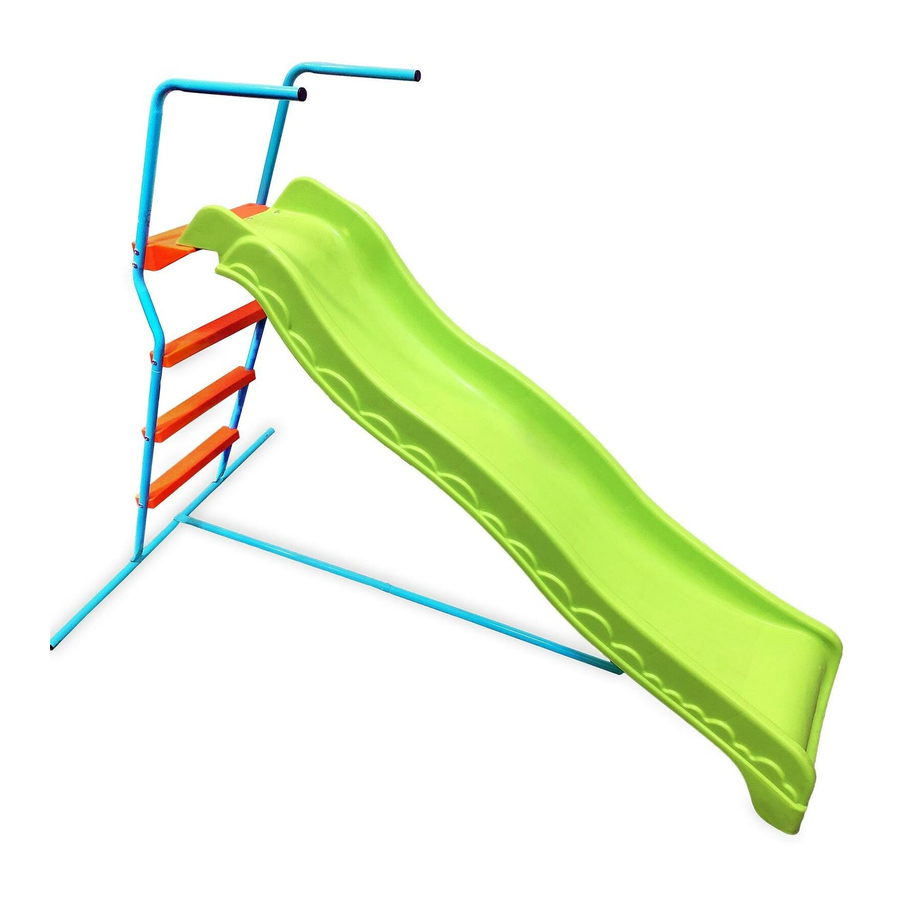

6 FT KIDS WAVY SLIDE
MODEL# 9305WS
PRODUCT MANUAL - VERSION 8.20.01
TO BUILD:
100
Lbs
45.35 Kg
TO BUILD:
2
X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pure Fun 9305WS
Summary of Contents for Pure Fun 9305WS
- Page 1 6 FT KIDS WAVY SLIDE MODEL# 9305WS PRODUCT MANUAL - VERSION 8.20.01 FOR AGES: WEI GHT LIMIT: TO BUILD: TO BUILD: 45.35 Kg Manual en español ubicado en GQBrands.com Spanish Manual located at GQBrands.com CUSTOMER SERVICE GQBrands.com • CustomerService @ GQBrands.com • 1-866-498-5269 • 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149...
-
Page 2: Customer Service Information
CUSTOMER SERVICE INFORMATION Thank you for purchasing: 6 FT KIDS WAVY SLIDE MODEL# 9305WS If you have an issue with your item, do not return. Please report To register you product please visit: items that are damaged or missing parts to the manufacturer GQ www.globalqualitybrands.com/product-registration or... - Page 3 NOT intended for commercial season or when the temperature drops below 40 applications and/or use in public areas such as degrees F, this unit must be stored indoors, or schools, parks, nurseries, day schools, day disassembled and stored inside. MODEL#9305WS...
-
Page 4: Parts List
PARTS LIST 2a - Washer M6 Nut M6 45mm Bolt 3a - Black Cap M6 45mm Screw M6 Dome Nut Slide Chute M6 15mm Bolt Ground Anchor S5 Allen Key M6 35mm Bolt 10 - Ladder Platform 11 - Ladder step GQBrands.com CustomerService@GQBrands.com 1-866-498-5269... - Page 5 PARTS LIST 12 - 13 - Hand Rail Tube (Top) Hand Rail Tube (Bottom) 14 - 15 - 16 - Base Tie Bar (Male) Base Tie Bar (Female) Ladder Stabilizer MODEL#9305WS...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1 Insert the Female Base Tie Bar (15) at the slide end of Slide Chute (9). Using M6 45mm Bolt (5) screw it with M6 Nut (1) and tighten them using S5 Allen Key (8). STEP 2 Connect Male Base Tie Bar (14) to Female Base Tie Bar (15), add...
- Page 7 Place the Ladder Platform (10) to the top side of Slide Chute (9), use M6 15mm Bolt (3) with M6 Nut (1) to hold the platform. Insert Black Cap (3a) on top of the Bolt to prevent getting hurt MODEL#9305WS...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 4 Connect both Top Hand Rail Tube (12) and Hand Rail Tube Bottom (13) and use M6 45mm Screw (6) to tighten them. STEP 5 Connect Ladder Platform (10) and Ladder Steps(11) to Hand Rail Tubes and use M6 45mm Screw (6) to tighten them.
- Page 9 ASSEMBLY INSTRUCTIONS STEP 6 If the Wavy Slide is placed outdoors, use the Ground Anchors (7) to secure it to soft ground to prevent sliding or turning. MODEL#9305WS...
-
Page 10: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Question: “A part is damaged, how do I Question: “I had a part missing from my Question: “Can this be used indoors replace it?” box” or “something was damaged during and outdoors?” assembly, can you send it to me?” Answer: If you are still within your warranty Answer: Yes this product is period (90 days from initial purchase) You...
