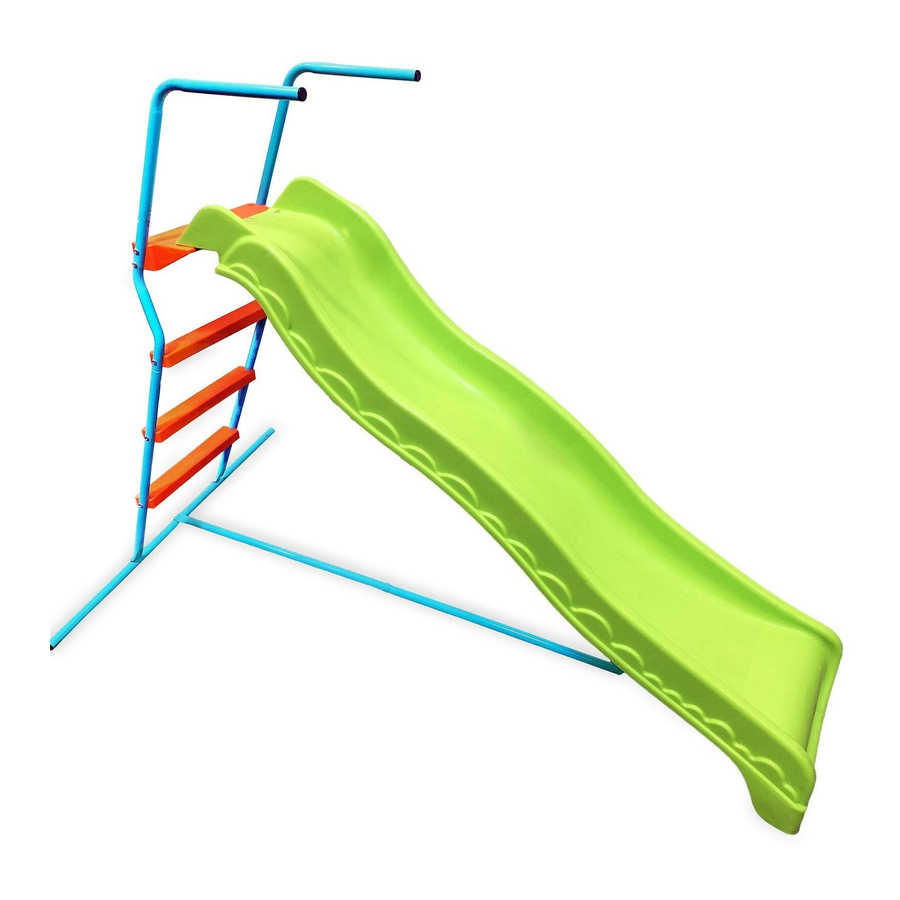

- Page 1 6 FT KIDS WAVY SLIDE MODEL# 9305WS PRODUCT MANUAL - VERSION 01.18.05 FOR AGES: WEIGHT LIMIT: TO BUILD: TOOLS NEEDED: 34 Kgs CUSTOMER SERVICE GQBrands.com CustomerService@GQBrands.com 1-866-498-5269 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149...
-
Page 2: Customer Service Information
CUSTOMER SERVICE INFORMATION Thank you for purchasing: 6 FT KIDS WAVY SLIDE MODEL# 9305WS At GQBrands®, we want all of our customers to be completely To order these parts, or if you have any other questions or concerns satisfied with their purchase. Take time to review the contents of the... - Page 3 40 degrees F, this unit must be stored cares, etc. DO NOT allow more than one child indoors, or disassembled and stored inside. on the Wavy Slide and Ladder at a time. 9305WS...
-
Page 4: Parts List
PARTS LIST M6 40mm Bolt Base Tie Bar (Male) Base Tie Bar (Female) M6 35mm Bolt M6 30mm Bolt M6 25mm Bolt M6 15mm Bolt L1 - L2 - Hand Rail Tube (Bottom) Hand Rail Tube (Top) Washer Spring Washer Dome Nut Square Washer Plastic Cap... - Page 5 PARTS LIST Slide Chute Ladder Stabilizer 9305WS...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1: Parts: Part U (x6) - Square Washer Part H (x6) - Ladder Step At the bottom of each Ladder Step (H) there are two openings in which the square washers (U) Must be slotted into. Place two Square Washers on each slot.
- Page 7 Place a Washer (D) and secure it with a M6 40mm Bolt (S) on both sides to secure the step ladder to the Hand Rail Tubes. The Bolts must be tightened with the Square washers inside the Step Ladder. 9305WS...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 6: Parts: Part D (x2) - Washer Part L2 (x2) - Hand Rail Tube (Top) Part S (x2) - M6 40mm Bolt Align the openings of the Step Ladder, the Hand Rail Tube (Bottom) and insert the Hand Rail Tube (Top) (L2).
- Page 9 Part D (x2) - Washer Part E (x2) - Spring Washer Part F (x2) - Dome Nut Secure on the inside with Spring Washers (E) and Dome Nuts (F) and on the front side, with Washers (D) and M6 30mm Bolts (B). 9305WS...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 10 : Parts: Part C (x1) - M6 25mm Bolt Part D (x1) - Washer Part E (x1) - Spring Washer Part F (x1) - Dome Nut Part G (x1) - Base Tie Bar (Male) Part K (x1) - Base Tie Bar (Female) Connect the Base Tier with the Male End (G) to the female end (K) with both hooks facing the same directions.
- Page 11 Chute Base Tube (P) and align the openings. Either Hook from the Base Tie Bar can be used. Secure on the back side with a Spring Washer (E) and a Dome Nut (F), and Washers (D) and M6 30mm Bolt (B) on the front side. 9305WS...
- Page 12 ASSEMBLY INSTRUCTIONS STEP 12: Slide the assembled Base Tie Bar under the Slide Chute and the bottom of the ladder. The Chute Base Tube must be underneath the Bottom of the Slide Chute, and the Open Hook on top of the middle opening of the Ladder Stabilizer.
- Page 13 Base Tube. Secure with 2x M6 15mm Bolts (T). STEP 15: Parts: Part O (x2) - Ground Anchor If the Wavy Slide is placed outdoors, use the Ground Anchors to secure it to soft ground to prevent sliding or turning. 9305WS...
-
Page 14: Customer Service
NOTES CUSTOMER SERVICE GQBrands® 1-866-498-5269 CustomerService@GQBrands.com 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149 GQBrands.com CustomerService@GQBrands.com 1-866-498-5269...
