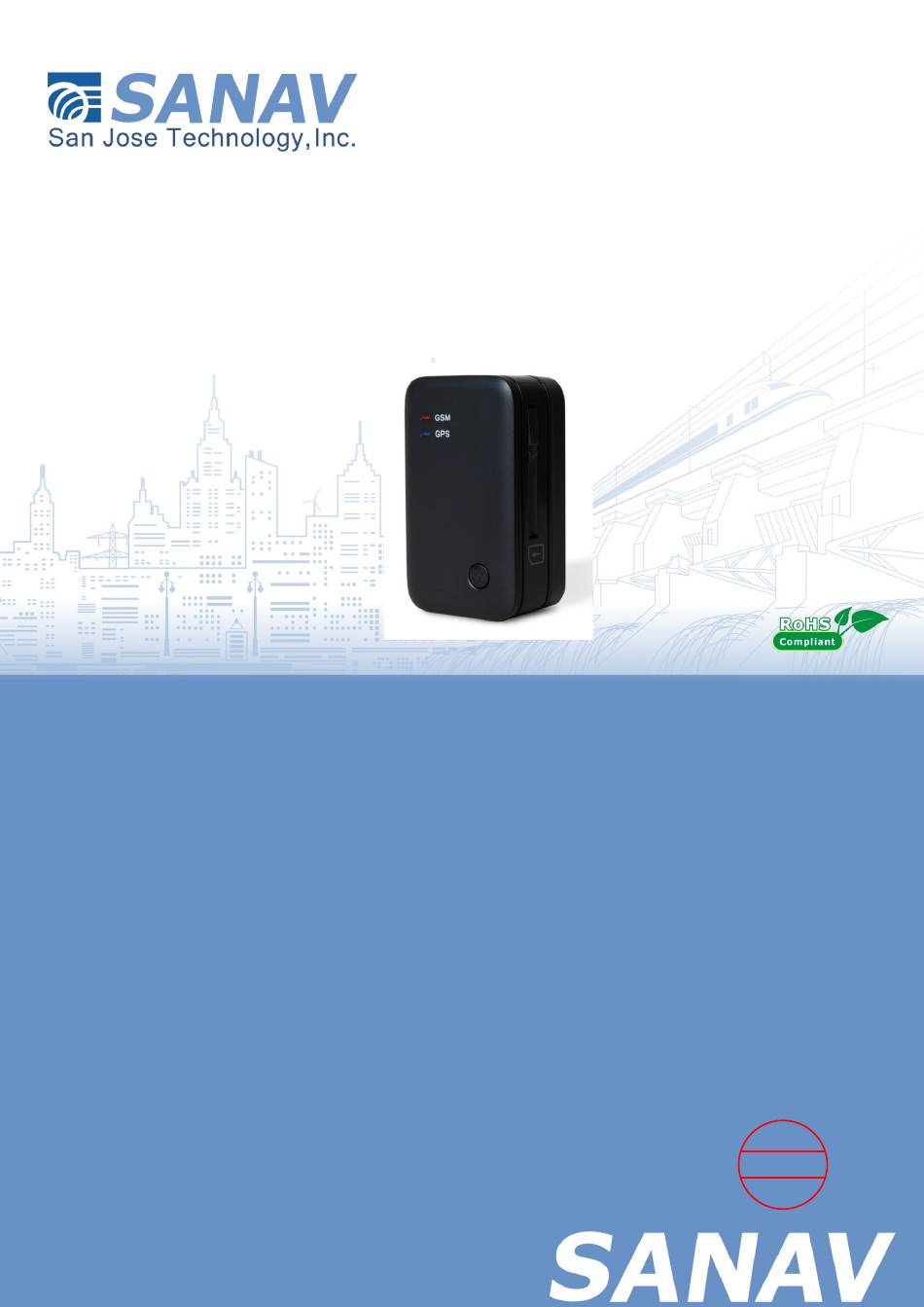

SANAV MU-201 S2
GPS/GPRS/3G Micro Tracker
Product Name: GPS/3G/2G Micro Tracker
Part Number: MU-201S2
Doc Type : User Manual
Doc Id: WI-RD-E-028
Reversion : V1.1
Copyright © 2017 San Jose Technology, Inc. All Rights Reserved.
This document contains information that is the property of SANAV. This document may
not be copied, reproduced, reduced to any electronic medium or machine readable form,
or otherwise duplicated, and the information herein may not be used, disseminated or
otherwise disclosed, except with the prior written consent of SANAV
1
Tracking Solutions
Embedded Antenna design
GPS&Wireless solutions Provider
User Manual
新禾航電
2019.09.11
文管中心
