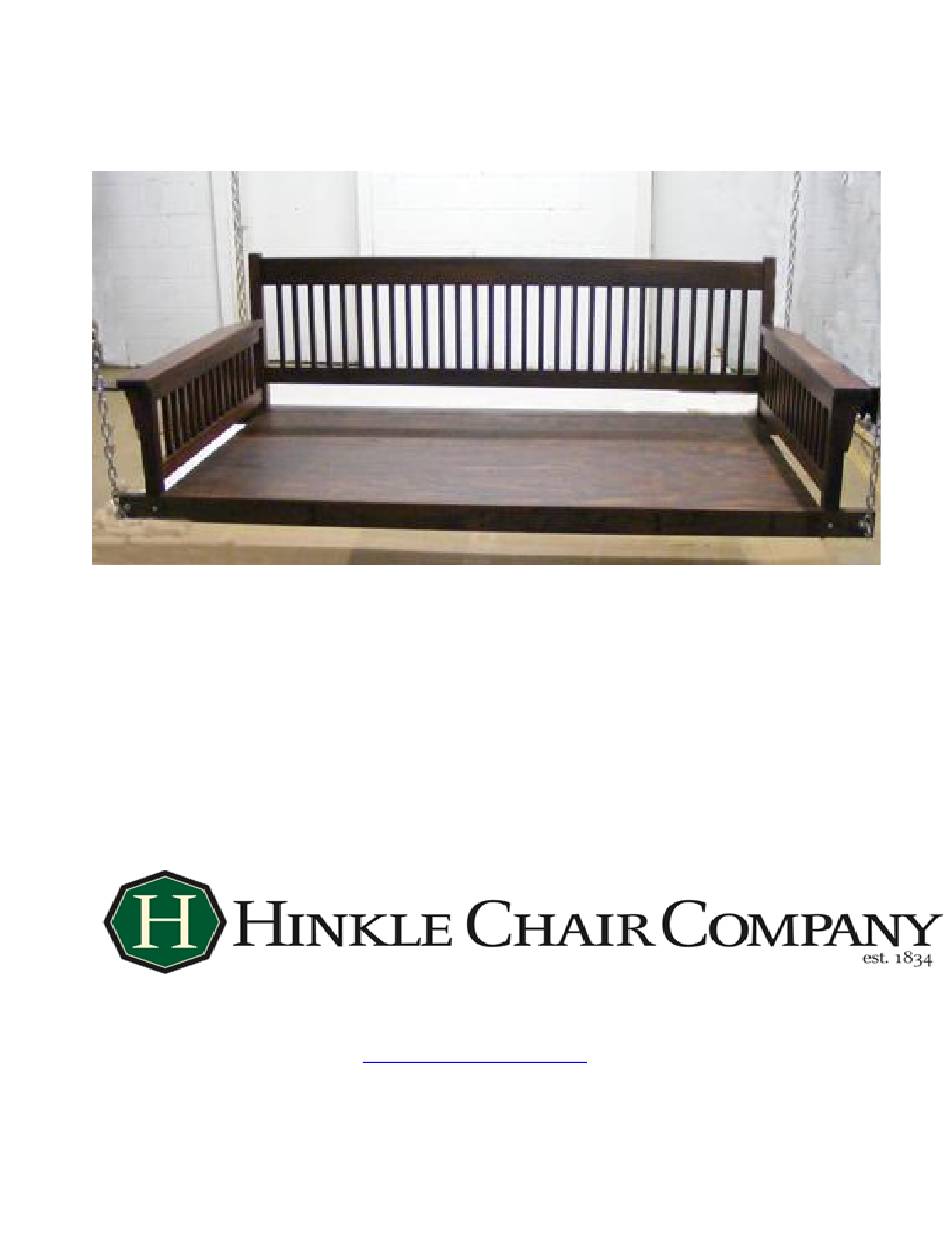

Hinkle Chair Company 854 Instruction Manual

Day bed
Hide thumbs Also See for 854:

Advertisement

Quick Links

Download this manual
Thank you for purchasing a quality day bed from Hinkle Chair Company. The product you have purchased
requires some assembly. This item has been carefully inspected before packing to ensure it's adherence to our
strict Quality Control Standards. Proper assembly will ensure not only your safety, but many years of enjoyable
use of this quality product. We STRONGLY suggest that you familiarize yourself with these instructions prior
to assembling this product. It's up to you to follow carefully EACH STEP of the assembly process. For your
safety, DO NOT SKIP any step indicated in these instructions. Use all the hardware provided as indicated. Be
sure to tighten all fasteners securely. The manufacturer will not be responsible for any damage or injury that
results from improper assembly or installation of the Day Bed. If you have any questions regarding the
assembly of this bench, feel free to contact us using the Hinkle Chair Company Helpline (800) 251-3025.
4669 Mt. Sharon Rd.
800-251-3025
854 Day Bed
P.O. Box 410
Springfield, TN. 37172
615-384-8477 Fax 615-384-0055
www.hinklechaircompany.com
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the 854 and is the answer not in the manual?

Questions and answers

Related Manuals for Hinkle Chair Company 854

Summary of Contents for Hinkle Chair Company 854

  • Page 1 854 Day Bed Thank you for purchasing a quality day bed from Hinkle Chair Company. The product you have purchased requires some assembly. This item has been carefully inspected before packing to ensure it’s adherence to our strict Quality Control Standards. Proper assembly will ensure not only your safety, but many years of enjoyable use of this quality product.
  • Page 2 THE WEIGHT PLACED ON THE DAY BED. YOU MUST HAVE THE RAFTERS AND CEILING HOOKS PROFESSIONALLY INSTALLED. Hinkle Chair Company has made every effort to provide you with a ready-to-assemble product. Please follow the instructions below to protect you (The Customer) from accepting responsibility for a product that is damaged or incomplete.
  • Page 3 854 Day Bed 1. Wooden Components F-L F-R 1- BACK (A) 2- FRONT/BACK SUPPORT FRAME (B) 2- SIDE (C-L / C-R) 2- SIDE TO SIDE SUPPORT FRAME 39-1/2” (D-L) 3- SIDE TO SIDE SUPPORT FRAME 37-3/4” (D-S) 2- BOTTOM SUPPORT DECKING (E)

  • Page 4: Hardware Components

    854 Day Bed 2. Hardware Components HARDWARE F- 3/8” EYE BOLT (4) / WASHERS (4) / NUTS (4) G- 1/2” BUTTON (28) H-5/16” X 2-1/2” HEX BOLT (4) / WASHER (4) / NUTS (4) I- 1/4” X 2-1/2” HEX BOLT (28) (D) J-#8 X 1-1/4”...
  • Page 5 854 Day Bed Step 1. Identify the correct positioning on front and back support frame. Notice in Fig. 1 the pre-drilled holes for the side to side support frame pieces are closer to the bottom than the top of the front frame. The counter-sink for the arm bolt should face out whether in the front or the back.
  • Page 6 854 Day Bed Step 2. Assemble the Frame Ensuring that the pre-drilled holes are in the correct position shown in Step 1, place front support frame (B) upright and place a side to side support (D-L) against it aligning the threaded insert against the back of the front support (B).
  • Page 7 854 Day Bed Step 3. Assemble the Sides Hex Bolt (I) Ensuring that the pre-drilled holes are in the correct position shown in Step 1, place Side (C) flat with the extended part of the arm facing out. Place Back Post (F-R) next to Side (C-R) and align with hex bolt into the threaded insert in the Side (C-R).
  • Page 8 854 Day Bed Step 3 Assemble the Sides Place side (C-L) in between the front and back supports (B) and outside the last side to side support (D) on the left side. Slide down until the side (C-L) rests on top of the front and back support frame (B).
  • Page 9 854 Day Bed Step 3 Assemble the Sides Repeat previous step for the side (C-R). Again, only tighten fasteners finger tight. This will assist in alignment for the next step. Fig. 8 Fig.8 Step 4 Assemble the Back This step will require two people to make alignment much easier.
  • Page 10 854 Day Bed Step 4 Assemble the Back Place a bolt (I)through the pre- drilled hole in the side (C-L/C-R) and thread into the threaded insert. Once the bolt is in place and partially threaded in, move to the lower pre-drilled hole and thread a bolt (I) through the lower pre- drilled hole and partially thread in.
  • Page 11 854 Day Bed Step 5 Assemble the Decking Place one of the two bottom deck supports (E) onto the bottom assembly. Slide all the way to the back and ensure that the ends are over the outside side to side supports.
  • Page 12 854 Day Bed Step 5 Assemble the Decking Starting at the front of the Day Bed, begin to drive the deck screws (J)in the pre-drilled holes across the front. Move from front to back fully seating all screws. This step is...
  • Page 13 854 Day Bed Step 6 Install Eye Bolts Next place a washer on the back side of the eyebolt (F). Thread on a nut and thread it down until snug. With pliers hold the eyebolt with opening down and tighten the opposing nut with a wrench until tight.
  • Page 14 854 Day Bed ASSEMBLY IS NOW COMPLETE. BEFORE ATTACHING THE CHAIN ENSURE THAT THE CEILING BOLTS (NOT PROVIDED) ARE PROFESSIONALLY INSTALLED. FAILURE TO DO SO COULD CAUSE SERIOUS INJURY IF THE DAY BED IS NOT CORRECTLY SUPPORTED. - 14 -...
