#1900 ROCKER
ASSEMBLY INSTRUCTIONS
Thank you for purchasing a quality select hardwood rocking chair. If you should have any comments or questions
please call the toll-free number below between 8:00 AM and 5:00 PM CST Monday through Friday. Again, we
appreciate your business and hope you get many years of enjoyment from this chair.
NOTICE: The Rocking Chair product that you have purchased requires some assembly. As with all furniture,
proper assembly is necessary for the safe and comfortable use of your rocker. Hinkle Chair cannot be responsible
for any damage or injury that results from improper assembly of the chair. Please read and follow these instructions
carefully and in sequence. If you have any questions please call The Hinkle Chair Company helpline (800) 251-3025
or contact us on our website at www.hinklechair.com.

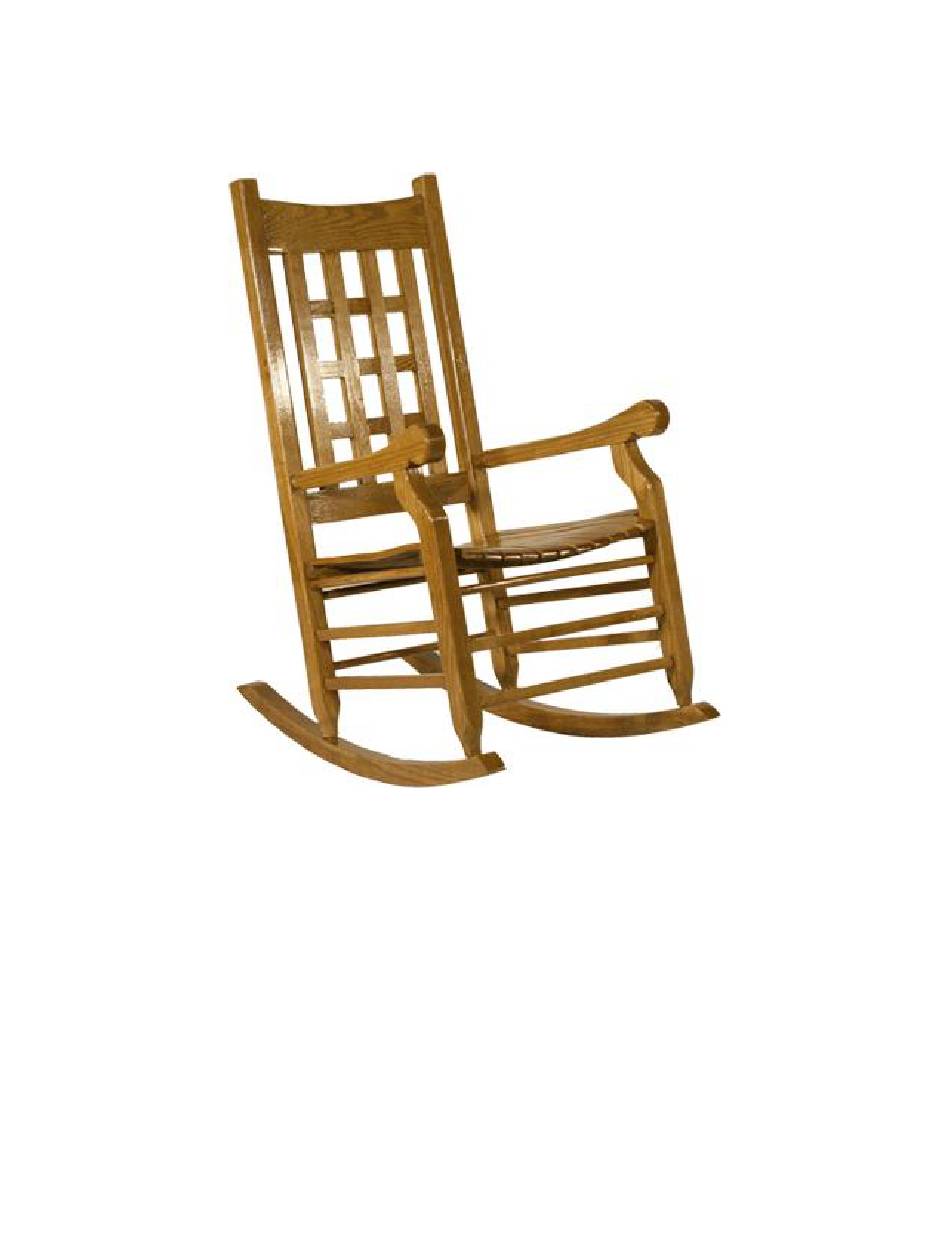

PLEASE NOTE: The Rocker you have purchased is depicted above. Many of our rockers assemble with the exact same
steps and the only difference is the appearance of the chair. If the rocker depicted in the assembly steps does not look
the chair you purchased, it assembles with the same steps. Also, all references of left and right in these instructions are
from the perspective of standing in front of the chair facing it, not siting in it.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rocker 1900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hinkle Chair Company Rocker 1900

  • Page 1 Please read and follow these instructions carefully and in sequence. If you have any questions please call The Hinkle Chair Company helpline (800) 251-3025 or contact us on our website at www.hinklechair.com.
  • Page 2: Parts Included

    ROCKING CHAIR ASSEMBLY INSTRUCTIONS E-R/E-L PARTS INCLUDED: 1 – Chair Back (A) 10 – Wooden Buttons 1 – Chair Seat (B) 10– Hex Head Screws 2 – Back Spindle (C-1) 1 – Hex Wrench 4 – Seat Screws 3– Front Spindles (C-2) 2 –...
  • Page 3 ** Attention/Stop** Hinkle Chair Company has made every effort to provide you with a ready-to- assemble product that has the same quality as our fully assembled rocking chairs. In the unlikely event that there are incorrect, missing parts, or the...
  • Page 4 STEP 1: __________________________________________ ______________________________________________ Place left side of rocker D-L on cardboard shipping box with mortised Insert the back spindles C-2 into the pre-drilled hole holes facing up. Insert the back A into the pre-drilled mortises in in the back post below the back just inserted. Note: the back post.
  • Page 5 STEP 1:________________________________________________________________________________________ Place Seat B just below the arm on chair side D-L. Note: Do Place chair side D-R over tenons facing up and align with pre- Not place seat under any round dowels in the side of the chair. Drilled holes and mortises in chair side D-R.
  • Page 6 STEP 2: _________________________________________________________________________________________ Place Hex Head Screw in the top pre-drilled hole on back post and thread in. Do not fully tighten at this point, make sure you make contact with chair back A tenon so the chair will hold together for the following steps. Fig.
  • Page 7 STEP 2:____________________________________________________ _____________ _______________________ Place the Hex Head Screw into the pre-drilled hole in the. front post and tighten with wrench provided. Thread in and do not fully tighten as before. Continue with the other pre- drilled hole in the front post. Fig.
  • Page 8 STEP 4:____________________________________________________ _____________ _______________________ Using the seat screws provided, insert screw in pre-drilled ole on upper side dowel. There is a pre-drilled hole in the under seat piece. Align screw to enter the pre-drilled hole. Once the screw begins to thread move to the next screw in the rear of the chair.
  • Page 9 STEP 4:____________________________________________________ _____________ _______________________ Insert the nail on the inside of the runner and tap in with a hammer until flush with the surface. Repeat for the rear of the rocker on this side. Rotate rocker on the other side and repeat this process. Fig.
