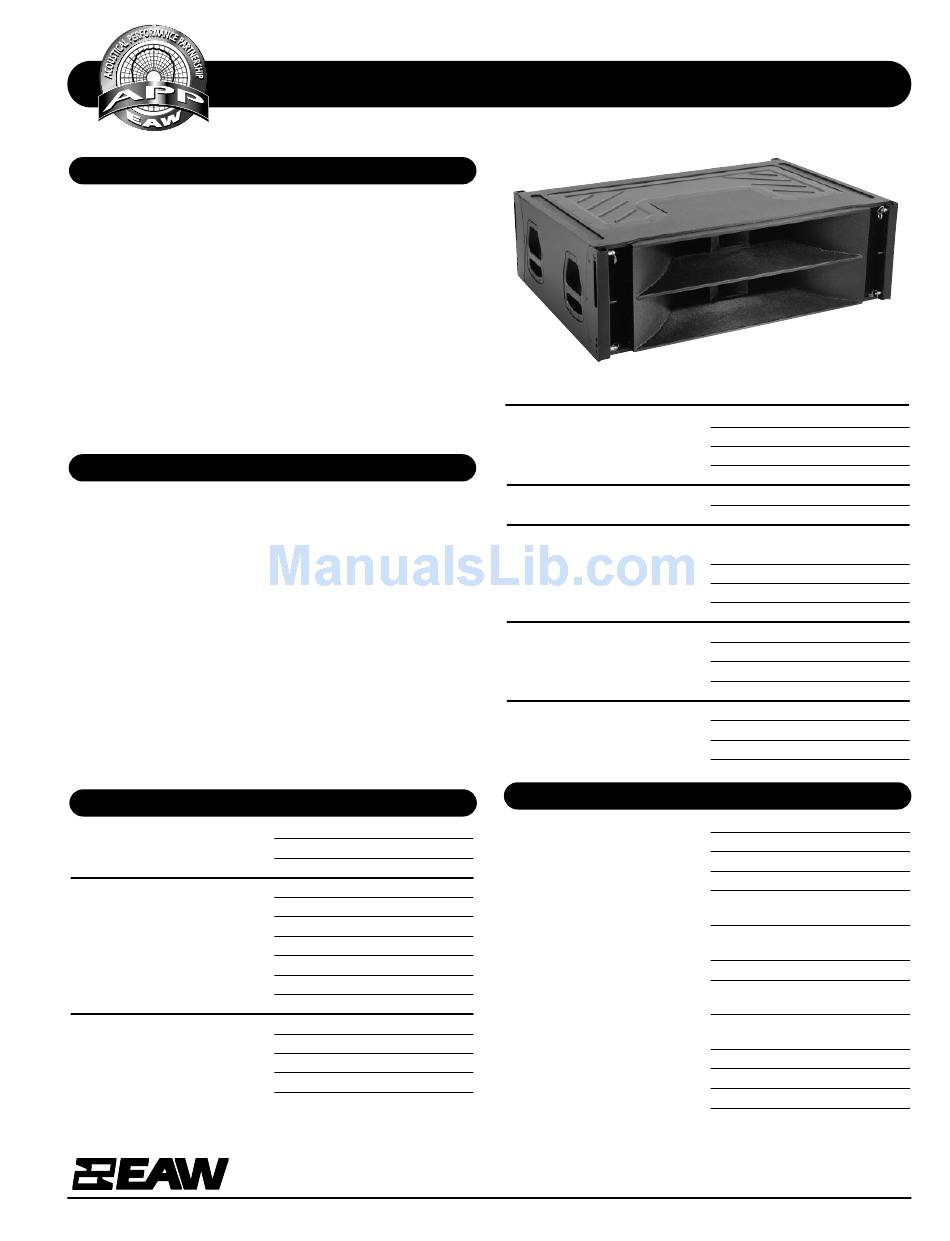

EAW Loudspeaker KF760 Specifications

EAW Loudspeaker KF760 Specifications

Eaw loudspeaker specification sheet
Hide thumbs Also See for Loudspeaker KF760:

Advertisement

Quick Links

DESCRIPTION
The KF760 is part of the KF760 Line Array Series. The KF760
Series uses advanced divergence shading where all loud-
speakers are powered at equal level. A full KF760/KF761 array
can provide uniform sound coverage from directly beneath
itself out to hundreds of feet without complex signal pro-
cessing. Vertical coverage for the array is set by varying the
splay of the rear of the enclosures, leaving the fronts tight-
packed. This configuration produces a continuous, coherent
wavefront from the array, projecting extended range, high-
resolution sound over its full coverage area.
Quality construction features include, Baltic birch plywood
enclosures, heavy-duty steel grilles, Neutrik NL8 connectors,
heavy duty bar handles, rear hand-holds, and accessory cast-
er pallets. Six Year Warranty.
APPLICATION
This high output touring system is scalable from theaters
under 1,000 seats to stadiums. The KF760 is used as the short
to long throw element of a KF760 Series line array providing
coverage in the range of 70 to 400 feet. The KF761 supple-
ments the KF760s to provide near-field coverage for distances
less than 70 feet. The recommended minimum KF760/KF761
array size is four enclosures. For full performance eight enclo-
sures are recommended. To extend the low frequency
response, KF940 SuperSubs™ make an ideal complement to
the KF760 Series.
Applications include:
Arenas
Convention Centers
Stadiums
Theaters
Auditoriums
Outdoor Events
PERFORMANCE
Frequency Response (Hz)
±3 dB (1) Enclosure Array
±3 dB (8) Enclosure Array
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF Single Enclosure
MF Single Enclosure
HF Single Enclosure
LF (8) Enclosure Array
MF (8) Enclosure Array
HF (8) Enclosure Array
Impedance (Ohms)
LF
MF
HF
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Large Ballrooms
Music Pavilions
80 Hz to 16 kHz
40 Hz to 16 kHz
96
108
113
106
125
117
2x 8
8 (2@ 16 Ohm each)
8 (2@ 16 Ohm each)
508 234 6158
Toll Free 800 992 5013
SPECIFICATIONS KF760
Power Handling (Watts Continuous)
LF
MF
HF
Recommended High-Pass Frequency
24dB/Octave
Calculated Maximum Output (dB SPL @ 1m)
Single Enclosure
LF Peak/Long Term
MF Peak/Long Term
HF Peak/Long Term
Eight (8) Enclosure Array
LF Peak/Long Term
MF Peak/Long Term
HF Peak/Long Term
Nominal Coverage Angle -6 dB points (degrees)
Horizontal
Maximum Vertical Splay
PHYSICAL
Product Group S
System Configuration 3-way, full range
Powering Tri-amplified
LF Subsystem 2x 12-in woofers, horn-loaded
MF Subsystem 2x 10-in cone, Radial Phase
HF Subsystem 2x 2-in exit/3-in voice coil
Enclosure (shape) Horizontal trapezoid
Enclosure Materials Exterior grade Baltic birch ply-
Finish Wear-resistant black textured
Connectors 2x Neutrik NL8
Suspension Hardware
Grille
FAX 508 234 8251
KF760/0002962/2 pp
2000
800
300
40 Hz
135/129
142/136
144/138
154/148
169/163
156/150
80
3
Plug™, horn-loaded
compression driver, horn-loaded
wood, urethane
paint
Proprietary EAW rigging system
Powder coated perforated steel
info@eaw.com
www.eaw.com
April 2002
Printed in USA
