EAW DSA230 & DSA250 Instructions

All original packaging, the DSA230 Repackaging Kit, P/N 0013249, or the DSA250 Repackaging Kit, P/N 0013250,
is required for reshipping a DSA Loudspeaker. Follow this Instruction Sheet when repackaging.
NOTE: An RA (Return Authorization) number must be obtained from the EAW Service Department for
any product being shipped back to EAW.
Warning: Repackaging DSA loudspeakers should only be done by an experienced technician. Improper repackaging may
result in damage to the equipment or injury.
A
B
C
D

Removing Mounting Hardware

CAUTION: Remove all mounting hardware from the loudspeaker before repackaging. Do not pack any
mounting hardware with the loudspeaker. Provide separate packaging if being shipped with the loudspeaker.
Wall Mount Brackets: Remove the bracket on each end of the loudspeaker by unscrewing its hex head
attachment screw. To prevent loss, screw them back into the mounting brackets.
Fly-Bar Kit: Remove the Fly-Bar assembly by unscrewing the eight slotted standoffs from the four Support
Straps in the channels along the sides of the loudspeaker. To ease removal, loosen the bolts that attach the
Support Straps to the Fly-Bar. Slide the entire Fly-Bar assembly out of the channels. To prevent loss, screw
the standoffs back onto the Strap studs.
Connecting Straps: Remove the four Connecting Straps by unscrewing the eight slotted standoffs in the chan-
nels along the sides of the loudspeaker. Slide each Strap out of its channel. To prevent loss, screw the stand-
offs back onto the Strap studs.
Instructions/Repackaging
DSA230 & DSA250 Loudspeakers

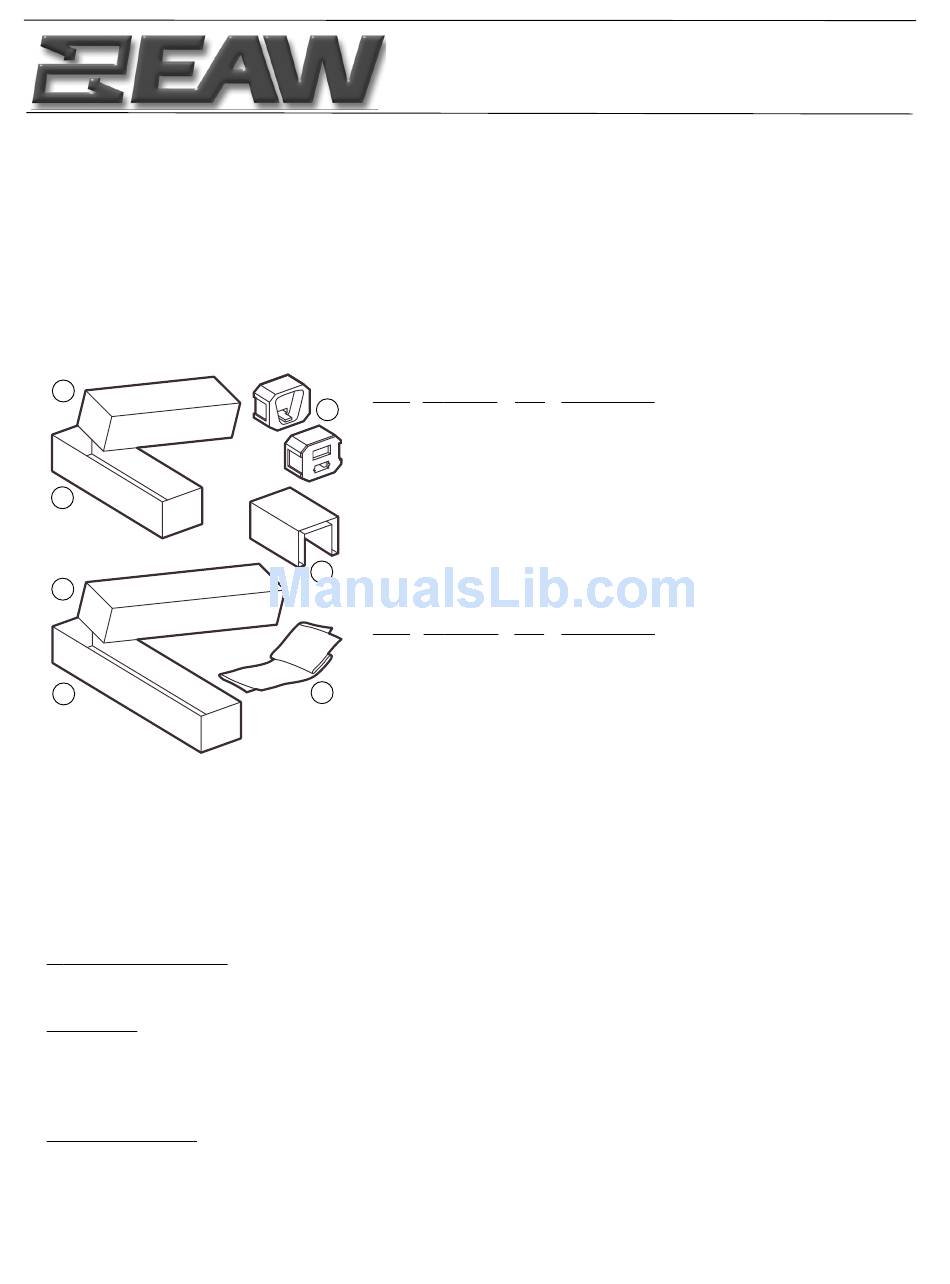

DSA230 REPACKAGING KIT PARTS LIST, EAW P/N 0013249:
Item EAW P/N Qty Description
E
A 0011971
B 0011976
E 0011371
F 0013156
G 304005
H RD0172
F
DSA250 REPACKAGING KIT PARTS LIST, EAW P/N 0013250:
Item EAW P/N Qty Description
C 0011977
D 0011978
G
E 0011371
F 0013156
G 304002
H RD0172
1 Box, Cardboard, Top, DSA230
1 Box, Cardboard, Bottom, DSA230
2 Endcap, Foam-DSA
1 Cardboard Sheet, Scored, Top Pad, DSA
1 Poly Bag, Clear, 34 x 24 x 60
1 Instructions, Repackaging, DSA (this sheet)
1 Box, Cardboard, Top, DSA250
1 Box, Cardboard, Bottom, DSA250
2 Endcap, Foam-DSA
2 Cardboard Sheet, Scored, Top Pad, DSA
1 Poly Bag, Clear, 32 x 24 x 70
1 Instructions, Repackaging, DSA (this sheet)
