Introduction

This documentation describes the steps to create a simple CP400PB (Panel Builder 400) project. The
description includes hardware, configuration and programming of CP405/CP408 and AC500-eCo in
order to communicate with each other.

Before You Start

2.1 Hardware Connection

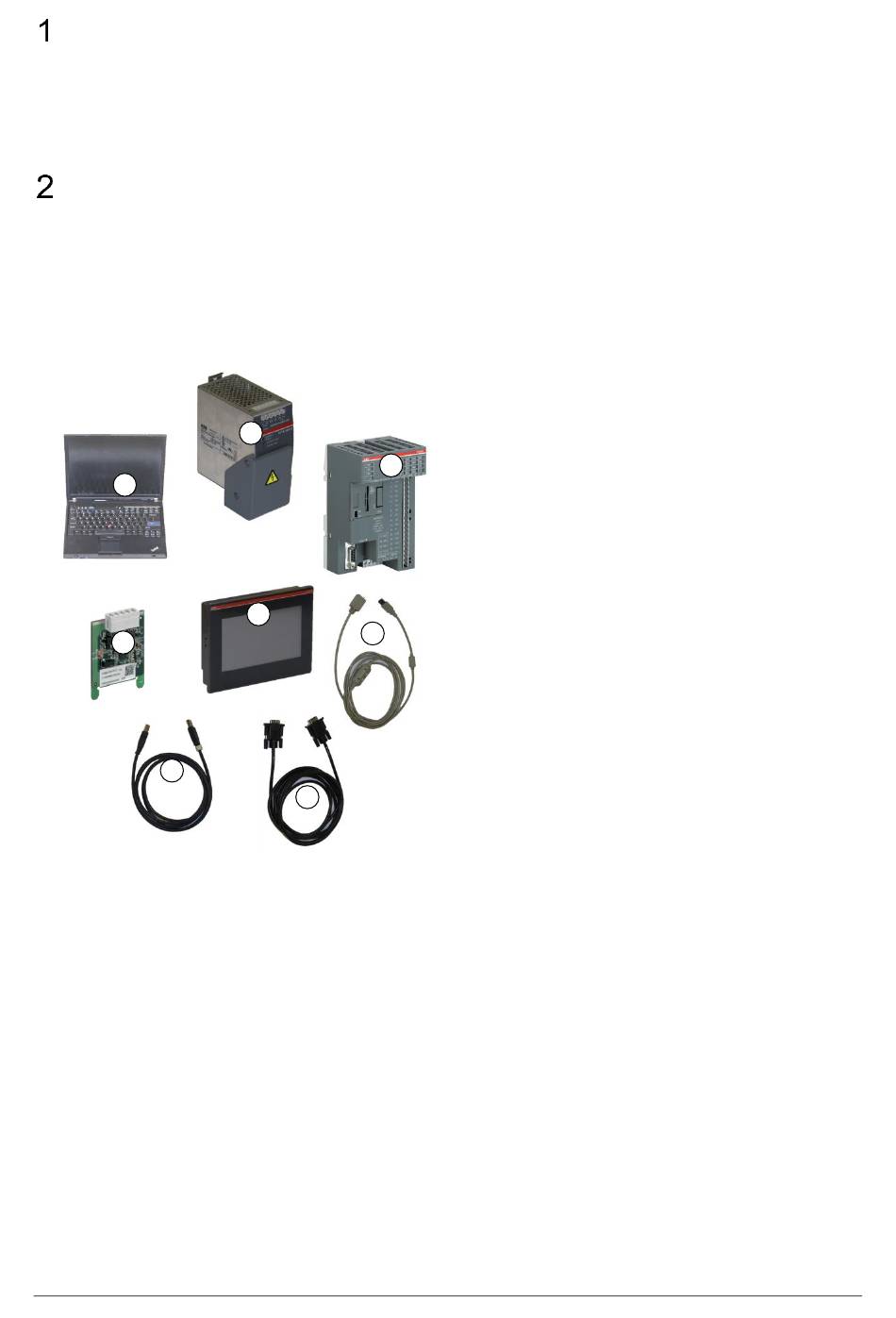

Before you start, following equipments should be prepared:
1
4
7
Make sure all above listed items are available, then follow the steps below.
Quickstart
2
3
5
6
8
1. Personal Computer
2. 24V DC power supply
3. AC500-eCo PM554
4. TA562-RS(-RTC) (RS485 serial adapter for
COM2 interface)
5. CP405/CP408 control panel
6. TK504 (PLC programming cable for COM2)
7. USB programming cable type A to type B
(Between CP405/CP408 and PC)
8. TK407 communication cable
(Between AC500-eCo and CP405/CP408)
9. PS501 Control Builder Plus installation
(TK504 driver included)
10. CP400PB (Panel Builder400) installation
(USB programming cable type A to type B
driver included)
2 CP405, CP408
