Wireless transmitter

Find Quality Products Online at:
The wireless transmitter is intended for use in areas that are difficult to access or in situations
when is hard to maneuver the probe with the display attached. The probe can also be connected
directly to the monitor using the patch cord.
Note: The battery must be fully charged for wireless operation. A weak battery may result in meter
shut down.
Wireless Mode
1. Connect the AC adaptor to the transmitter and charge the
battery.
2. Attach the probe to the transmitter.
3. Press and hold the Power button for 4 seconds to turn the
monitor on, then

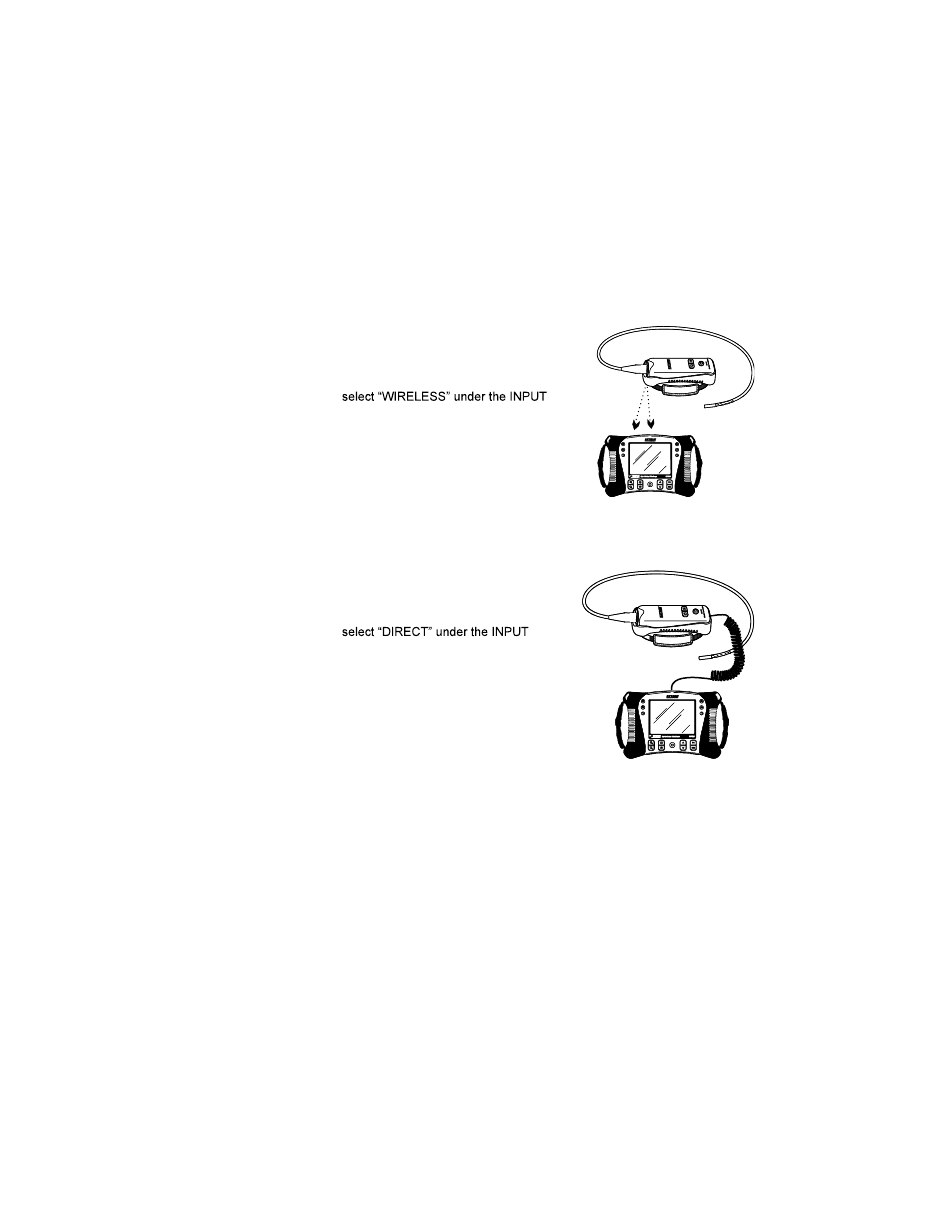

SOURCE selection in the MENU screen.
4. Press and hold the Power button for 4 seconds to turn the
transmitter on. The camera video will be transmitter to the
monitor display.
Direct Mode
1. Connect the AC adaptor to the transmitter and charge the
battery.
2. Attach the probe to the transmitter.
3. Connect the patch cord between the transmitter and the monitor probe input connector
4. Press and hold the Power button for 4 seconds to turn the
transmitter on.
5. Press and hold the Power button for 4 seconds to turn the
monitor on, then
SOURCE selection in the MENU screen.
6. In the direct mode, light intensity is controled by the
buttons on the monitor, not by the buttons on the
transmitter.
