11 SERVICE WORK ON THE CHASSIS
11.21
11.22
11.23
60

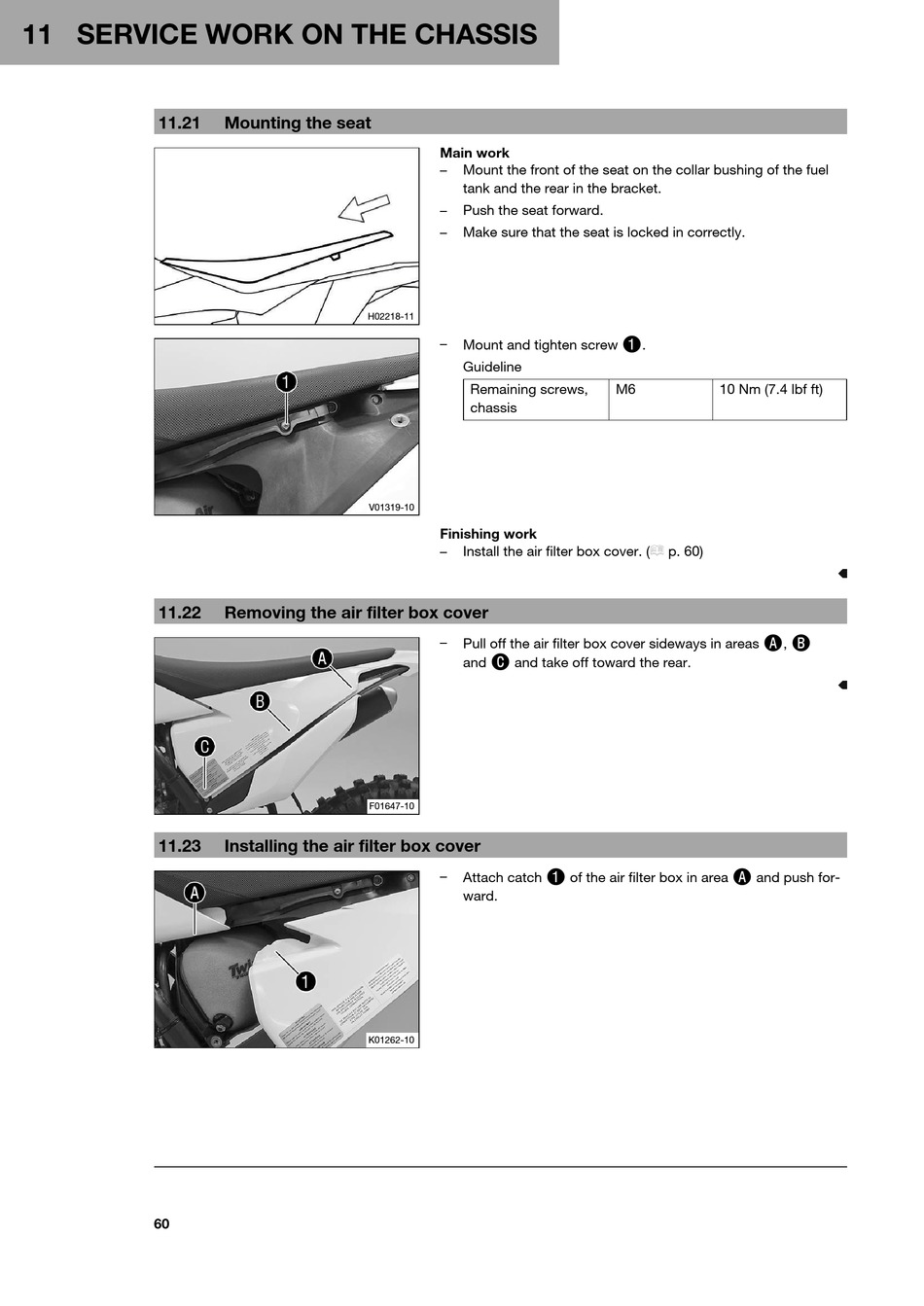

Mounting the seat

H02218-11
V01319-10

Removing the air filter box cover

F01647-10

Installing the air filter box cover

K01262-10
Main work
–
Mount the front of the seat on the collar bushing of the fuel
tank and the rear in the bracket.
–
Push the seat forward.
–
Make sure that the seat is locked in correctly.
–
Mount and tighten screw
Guideline
Remaining screws,
chassis
Finishing work
–
Install the air filter box cover. (
–
Pull off the air filter box cover sideways in areas
C
and and take off toward the rear.
–
1
Attach catch of the air filter box in area
ward.
1
.
M6 10 Nm (7.4 lbf ft)
p. 60)
A
,
A
and push for-
B
