11 SERVICE WORK ON THE CHASSIS
11.19
58

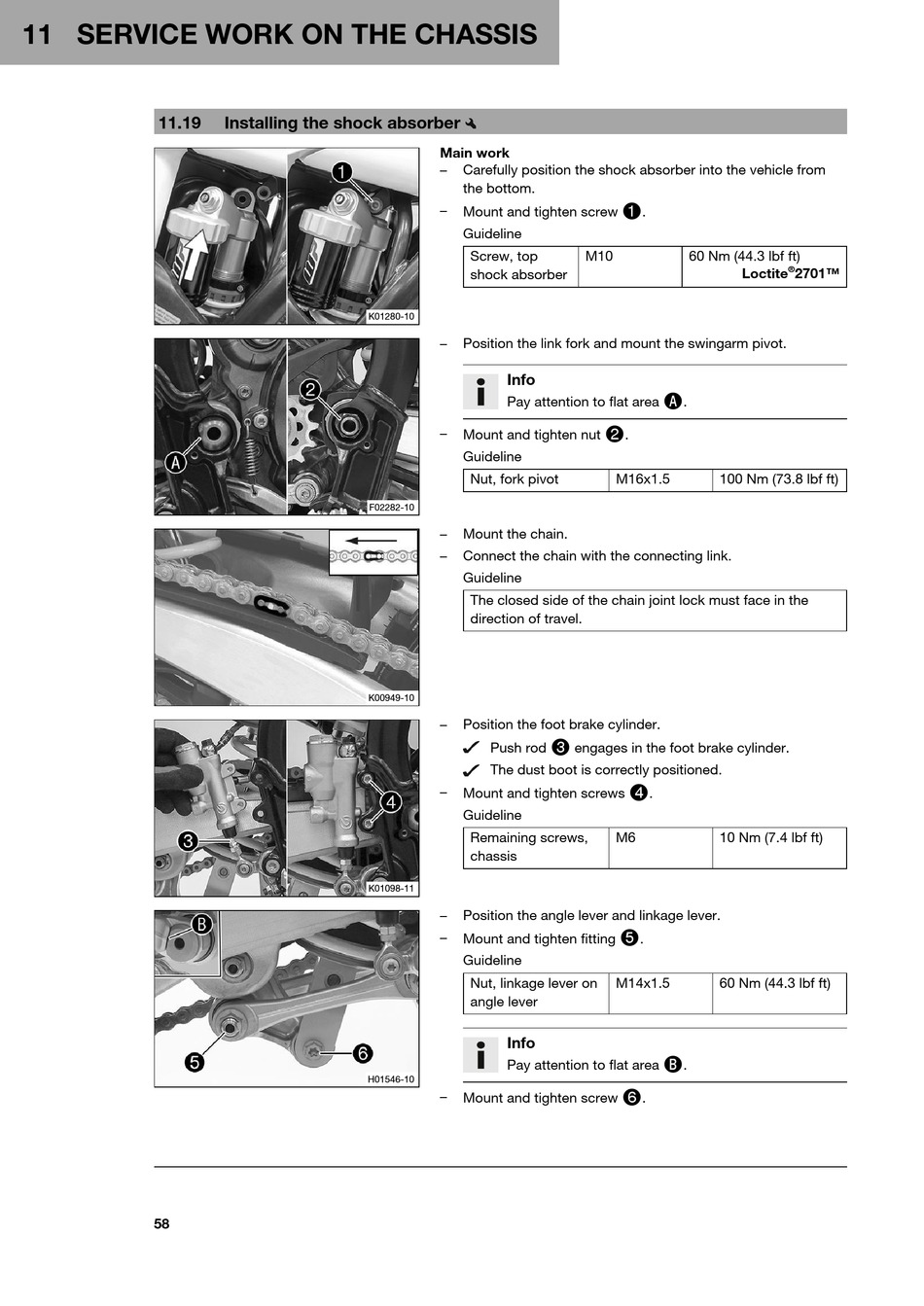

Installing the shock absorber
K01280-10
F02282-10
K00949-10
K01098-11
H01546-10
Main work
–
Carefully position the shock absorber into the vehicle from
the bottom.
–
Mount and tighten screw
Guideline
Screw, top
M10
shock absorber
–
Position the link fork and mount the swingarm pivot.
Info
Pay attention to flat area
–
2
Mount and tighten nut
Guideline
Nut, fork pivot
–
Mount the chain.
–
Connect the chain with the connecting link.
Guideline
The closed side of the chain joint lock must face in the
direction of travel.
–
Position the foot brake cylinder.
3
Push rod
engages in the foot brake cylinder.
The dust boot is correctly positioned.
–
Mount and tighten screws
Guideline
Remaining screws,
chassis
–
Position the angle lever and linkage lever.
–
Mount and tighten fitting
Guideline
Nut, linkage lever on
angle lever
Info
Pay attention to flat area
–
Mount and tighten screw
1
.
60 Nm (44.3 lbf ft)
®
Loctite
A
.
.
M16x1.5
100 Nm (73.8 lbf ft)
4
.
M6
10 Nm (7.4 lbf ft)
5
.
M14x1.5
60 Nm (44.3 lbf ft)
B
.
6
.
2701™
