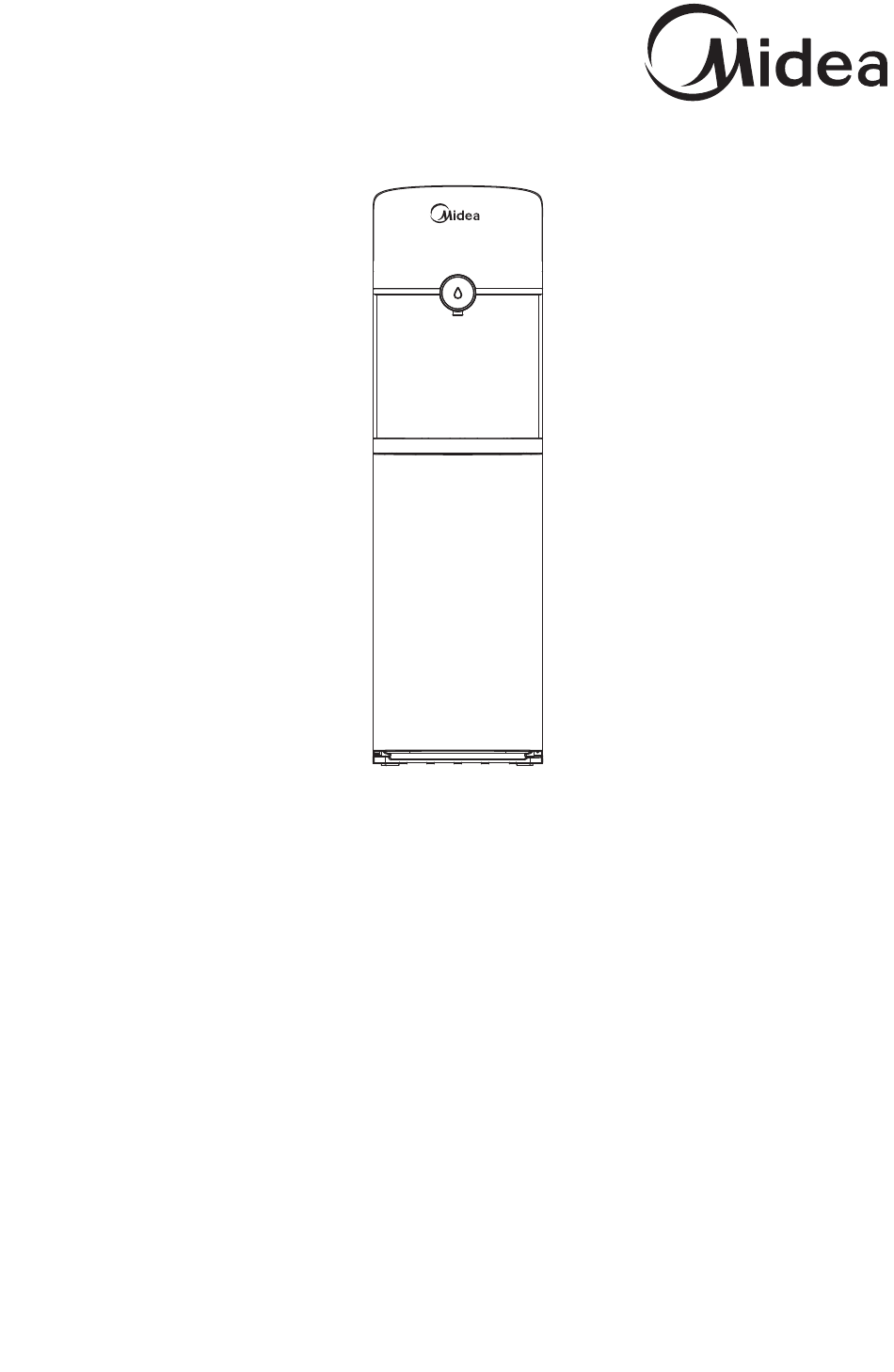

- Page 1 KEEP THIS MANUAL IN GOOD CONDITION, PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE Deluxe Water Purifier & Dispenser User Manual Model: JL1643S-UF...
-
Page 2: Maintenance
1.PRECAUTION 1-1 Safety Issues Please note the following brief icons and rules for safe use of this product Accessories and filters Troubleshooting To maintain the normal operation of the When the machine fails, please machine, be sure to use accessories disconnect the power and water and filters supplied by original company source immediately... - Page 3 1-2 packing list Packing box Bracket(1pc)、1/4" PE pipe(3m) Materials bag User's Manual(1 copy) Materials bag 6/8"-2/8" connector(1pc) PP Sediment filter(1pc), C1 Pre carbon filter(1pc), Filter C2 Post carbon filter(1pc), UF Membrane filter(1pc) 2. YOUR DIRECT DRINKING WATER PURIFIER 2-1 Part Name of Water Purifier (FRONT) (REAR) PART NAME...
- Page 4 2-2 Model and Major Parameters JL1643S-UF Model Rated voltage 220-240V~ 50/60Hz Rated frequency Rated power 535W Heating power 420W Cooling current 1.0A Rated pure water flow 1.2L/min(0.3MPa) Hot water capacity 4L/h(≥85°C) Cold water capacity 2L/h(≤10°C) Applicable environment 4-40°C humidity ≤90% Applicable water pressure 0.1-0.4MPa...
- Page 5 3. Filter Function Introduction Stage Filter Function Coarse filtration of original water, and filter out Stage 1 PP Sediment filter mud, sand, impurity, iron rust and suspension, etc Absorb unusual colours and odors, remove residual Stage 2 C1 Pre carbon filter chlorine and organic substance in wate Further absorb micro-molecules and organic substances...
- Page 6 6. Insert the C1 Pre carbon filter, tighten it by turning anticlockwise, and open the water tap to flush the filter until does not discharge black water, for about 10min. Take the same step to flush the C2 Post carbon filter. 7.
- Page 7 3-2 Machine Installation 1. Loosen the screw on the left or right bottom bracket 2. Screw in the brackets on the left or right side of the water dispenser. 3. Make a hole on the floor’s or the desk’s surface where the water dispenser will be installed.
- Page 8 3.Touch the hot water button “ ” and “ ” , then touch the get water button “ ” , the indicator turns on and the device starts discharging hot water.The machine will dispense for about 25 seconds. 4.Touch the hot water button “ ”...
-
Page 9: Troubleshooting
3-6. Troubleshooting In case of failure, please carry out inspection according to the requirements below. If unresolved, please contact the local service agency. Cause Failure Solution Check the booster pump Low water pressure or water inlet Low water flow Please contact the local service Filter not replaced in time, agency to replace the filter beyond the use time... - Page 10 The packaging material used is recyclable; we recommend that you separate plastic, paper and cardboard and give them to recycling companies. To help preserve the environment, the refrigerant used in this product is R134a (Hydrofluorocarbon -HFC), which does not affect the ozone layer and has little impact on the greenhouse effect.
