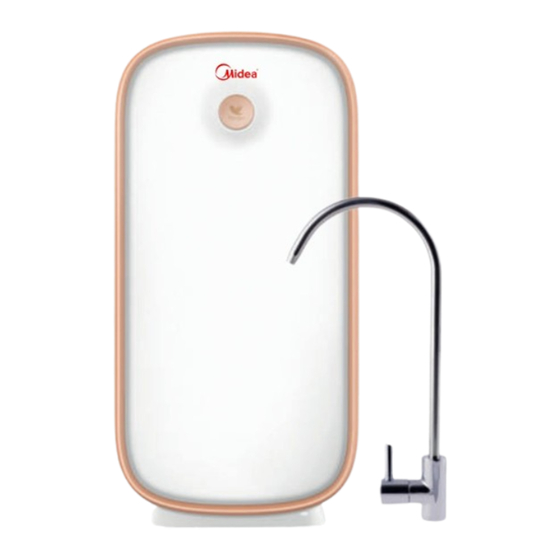

- Page 1 DRINK PURIFIED WATER REVERSE OSMOSIS OSMOSIS SYSTEM RESIDENTIAL REVERSE Filter change in 30 seconds. Without storage tank. Ultra compact system. LED indicator. Filter change notice. ECO 4000 Very low rejection: 0.5:1L. User Manual Reverse Osmosis System...
-
Page 3: Table Of Contents
INDEX USER MANUAL SAFETY PRECAUTIONS PRODUCT INTRODUCTION | SCHEMATIC DIAGRAM | LIST OF PARTS WORK PANEL | INSTRUCTIONS | CLEAN WATER SMART CLEANING | FILTER CHANGE FUNCTION OF THE FILTERING ELEMENT | USING THE “RESET” BUTTON DESCRIPTION OF THE INDICATOR | CLEANING AND MAINTENANCE REGULAR MAINTENANCE | MAINTENANCE PRE-INSTALLATION SYSTEM INSTALLATION... -
Page 4: User Manual
USER MANUAL Do not bring flammable and volatile substances close to the product. When cutting off the power, please do not pull the light wire directly to avoid breaking it. Please keep the socket clean. Do not plug or unplug with wet hands. Please do not connect the power step-up transformer to the socket. -
Page 5: Parts List
USER MANUAL The system is suitable for indoor use only. New swim for our company. It is normal for the product hoses supplied with the system must be used and to have a slight vibration and noise when processing the water. old hoses must not be reused. - Page 6 USER MANUAL 5. WORK PANEL Filter life indicator Filter reset button 2. The whole machine is on by default, and all the power indicator indicator lights flash 3 times. Power button 6. INSTRUCTIONS USE GUIDE 6.3. OFF 1. Close the three-way ball valve, and then unplug PRECAUTIONS the light cord: Installation will be carried out by local sales...
-
Page 7: Smart Cleaning
USER MANUAL 8. SMART CLEANING The machine will automatically rinse according to the set method. 9. CHANGING THE FILTER Filter replacement method. 5.After changing the filter, please press the power button for 3 seconds. The indicator light will turn on Shut off the water supply and open the faucet. -
Page 8: Cleaning And Maintenance
USER MANUAL in a circular way (the lighting time of each of them 10. FUNCTION OF THE FILTERING ELEMENT is 0.5 seconds). 5.Power saving state. If the standby state lasts 3 5 in 1 cartridge:12-24 months. Theoretical filtration precision reaches 0.0001 - 0.001 hours, the machine will enter power saving mode. -
Page 9: Regular Maintenance | Maintenance
USER MANUAL 14. REGULAR MAINTENANCE normal, if it is off or if the water valve is closed. WARNING: In order to ensure the normal operation of the product and avoid malfunction caused by improper maintenance affecting the safety of drinking water, close the valve the water purifier will be maintained in the process water inlet... -
Page 10: Pre-Installation
USER MANUAL 6.Connect it to the water source for the system to 16. PRE-INSTALLATION start producing. Check for water leaks at each PRECAUTIONS connection with a dry tissue. GRADES: The water purifier must be installed by professionals. Unprofessional installation may cause water or electricity leakage and fire outbreak which will harm the safety of your property. -
Page 11: System Installation
USER MANUAL 17. SYSTEM INSTALLATION 17.2. HOW TO MAKE A HOLE IN THE SINK OR COUNTERTOP (OPTIONAL) WARNING: WARNING: Installation will be carried out by professionals. Please confirm if there is a hole available to install 17.1. HOW TO USE THE QUICK FITTINGS: the faucet. -
Page 12: Faucet Installation
USER MANUAL The reverse osmosis system must be connected 17.5. FAUCET INSTALLATION to the COLD water supply only. NOTICE: If there is no hole in your kitchen sink or counter, you need to drill one (1"). Do not install the system where it will be exposed to direct sunlight or harmful chemicals, or where it may be damaged. - Page 13 USER MANUAL 17.6. INSTALL DRAIN BRACKET 17.7. REVERSE OSMOSIS SYSTEM POSITION Make sure there is enough space under the 1.Glue the foam gasket to the face plate of the drain bracket. Make sure the hole in the foam gasket is counter to install the system (407 x 158 x 316 mm).
-
Page 14: Starting The System
USER MANUAL 17.9. STARTING THE SYSTEM water inlet pipe 1.Open the cold water supply valve. Check for leaks. closure clip 2.Insert the plug into the socket. NOTICES: water inlet port The system will turn on and emit 5 beeps. The filter indicator light will blink 5 times and then NOTICE: Make sure it is fully inserted until it stay on. - Page 15 USER MANUAL The water may appear black at first. You will need to do the time control for the 20 minute wash yourself. Please note that when the system works continuously for more than 40 minutes, it will enter into timeout protection mode.
- Page 16 USER MANUAL 2. Close the water tap and wait for 60 seconds, then 18. SCHEMATIC DRAWING OF THE WATER SYSTEM check whether the concentrated water in the machine has stopped or not. GRADES: concentrated water There are some differences between the drawings in the manual and the actual object.
-
Page 17: Electrical Schematic Diagram
USER MANUAL 21. DIAGRAM OF THE WATER TREATMENT PROCESS 23. RECYCLING The packaging material used is recyclable. We recommend that you separate plastic, paper and cardboard and hand them over to recycling companies. According to the WEEE (Waste of Electrical and Electronic Equipment) guidelines, waste electrical and electronic equipment must be collected separately. - Page 18 EQUIPMENT INSTALLATION RECORD PROBLEM CAUSE SOLUTION The o-ring is dirty, misplaced or punctured. WATER LEAKS filter housing connecting tubes; The teflon is missing. Thread part: connecting tubes; Badly installed icon. Tube part: Poorly screwed pipe fittings. Poorly cut or pinched tube. Dispenser tap: Regular handle height.
-
Page 19: Equipment Warranty
EQUIPMENT WARRANTY CLIENT DATA: THE WARRANTY IS NOT EXTENDED TO: 1.The substitution, repair of parts or organs caused Mr. Mrs: by wear, due to the normal use of the equipment, Address: such as resins, polyphosphates, sediment PC and Population: cartridges, etc... as indicated in the equipment's Phone: instruction manual. -
Page 20: Equipment Installation Record
EQUIPMENT INSTALLATION RECORD Clearly inform about the use, handling and WARNING:Please read this manual carefully. If you have any questions, contact the technical assistance maintenance that the equipment requires to service (SAT) of your distributor. The data marked guarantee its proper functioning and the quality of the water produced. - Page 21 CONTROL AND MONITORING OF THE SYSTEM WARNING DATE TECHNICIAN DETAILS Name: Facility Signature or stamp: Maintenance Warranty Revision Repair Name: Facility Signature or stamp: Maintenance Warranty Revision Repair Name: Facility Signature or stamp: Maintenance Warranty Revision Repair Name: Facility Signature or stamp: Maintenance Warranty Revision...
- Page 22 CONTROL AND MONITORING OF THE SYSTEM WARNING DATE TECHNICIAN DETAILS Name: Facility Signature or stamp: Maintenance Warranty Revision Repair Name: Facility Signature or stamp: Maintenance Warranty Revision Repair Name: Facility Signature or stamp: Maintenance Warranty Revision Repair Name: Facility Signature or stamp: Maintenance Warranty Revision...
- Page 24 User Manual Reverse Osmosis System...
