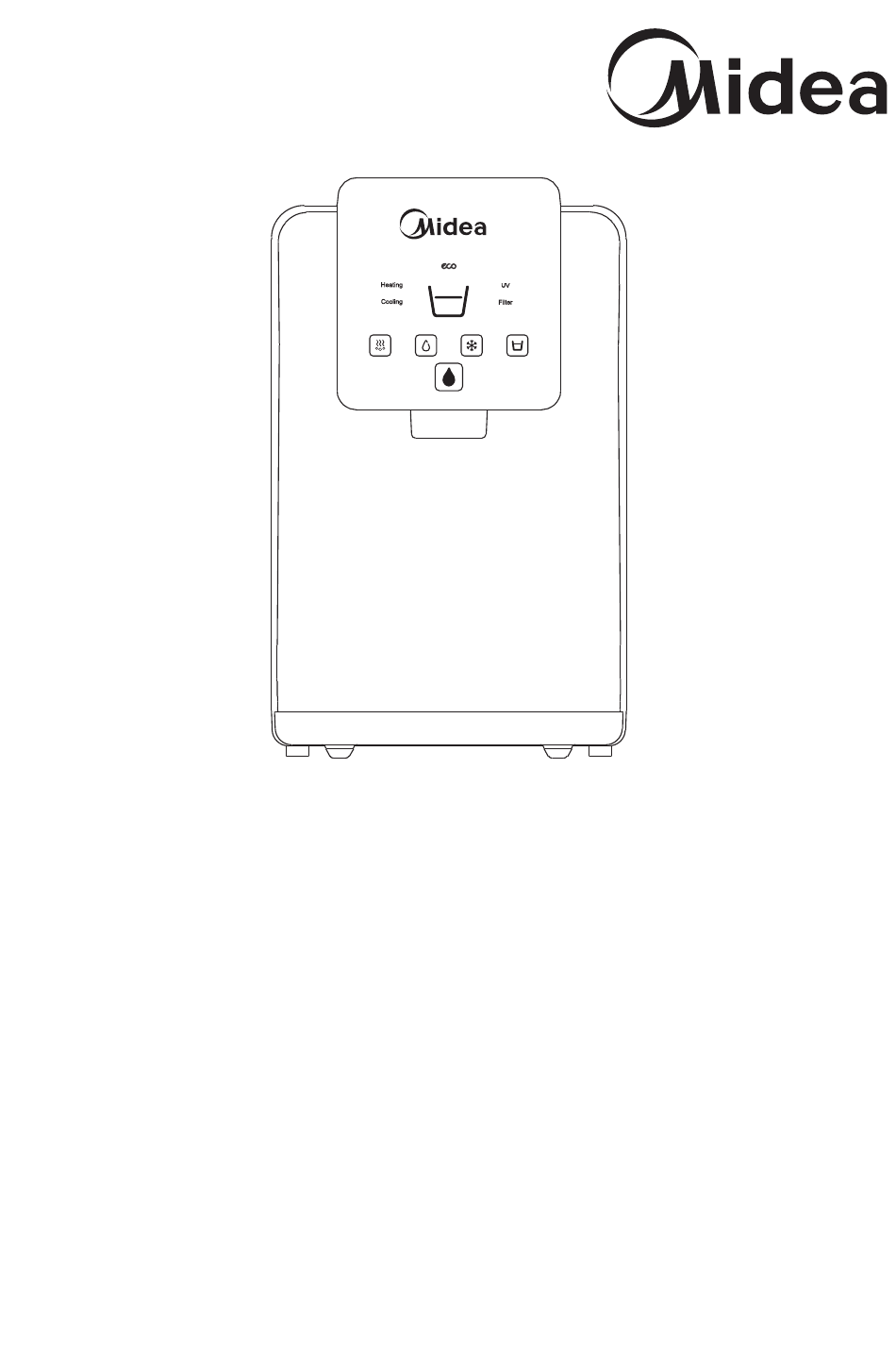

- Page 1 The diagram above is just for reference. Please take the appearance of the actual product as the standard. WATER PURIFIER Instruction Manual Model: JL1645T-Z Before installing and operating your water purifier, please read the instruction manual carefully and keep it for future reference.
- Page 2 1.PRECAUTION 1-1 Safety Issues Please note the following brief icons and rules for safe use of this product Accessories and filters Troubleshooting To maintain the normal operation of the When the machine fails, please machine, be sure to use accessories disconnect the power and water and filters supplied by original company source immediately...
- Page 3 13.WARNING: Do not operate the UV-C emitter when it is removed from the appliance enclosure. 14.This appliance contains a UV-C emitter. 15.Unintended use of the appliance or damage to the housing may result in the escape of dangerous UV-C radiation. UV-C radiation may, even in little doses, cause harm to the eyes and skin.
- Page 4 2-2 Model and Major Parameters Model JL1645T-Z Rated power 555W 420W Heating power Cooling curent 1.0A 1.2L/min(0.3MPa) Rated pure water flow Hot water capacity 4L/h(≥85°C) Cold water capacity 3L/h(≤10°C) 4-38°C humidity ≤90% Applicable environment Applicable water pressure 0.1-0.4MPa Applicable water...
- Page 5 2. Circuit diagram solenoid valve 1 display board 220-240V IN FUSE compressor Leakage detection boar power board UV lamp bimetal 1 heater bimetal 2 2-5 Filter function introduction Stage Filter Function Carry out coarse filtration of original water, and filter out mud, sand, PP &...
- Page 6 Connect tubes: 1) Push tubing through collet until it engages the o-ring. Continue pushing until the tube bottoms out against the back of the fitting. A common mistake is to stop pushing when the tube engages the o-ring. This will lead to future leaks. When a 3/8” tubing is fully engaged, 20 mm of the tube has entered the fitting (Figure 4).
- Page 7 7. When installing the machine, please pay attention to the installation dimension in case of the blocking of air inlet and outlet. 10cm 10cm 8. Drip tray cover must be properly placed inside the machine. No suspending in midair in case of falling off.
- Page 8 3-2 Using The Product Start up 1. Power on, start to use the product. 2. When using it for the first time, press the cold water output and hot water output buttons till discharging cold water and hot water from the faucet, ensure to remove the air from the hot tank and cold tank, ensure the dry burning indicator of the product is under normal state.
- Page 9 indicator turns off, and the product stops outputting water. After stopping water, the water temperature selection automatically switches to “Ambient Water” 5s later. During the water output process, the Water Temperature Selection button and the Quantitative Water Output button are unavailable.
- Page 10 6. The machine must use an earthed three-pin socket and a reliable creepage protection switch. 7. Never use organic solvents such as gasoline to clean the machine; strictly prohibit washing the machine with water or splashing water to the machine. 8.
- Page 12 The product is subject to change without notice. Please keep this manual properly. Foshan Midea Chungho Water purification Equipment Co., Ltd No.68 GuangLe Road, BEIJIAO, SHUNDE, FOSHAN, GUANGDONG, R.P.CHINA...
