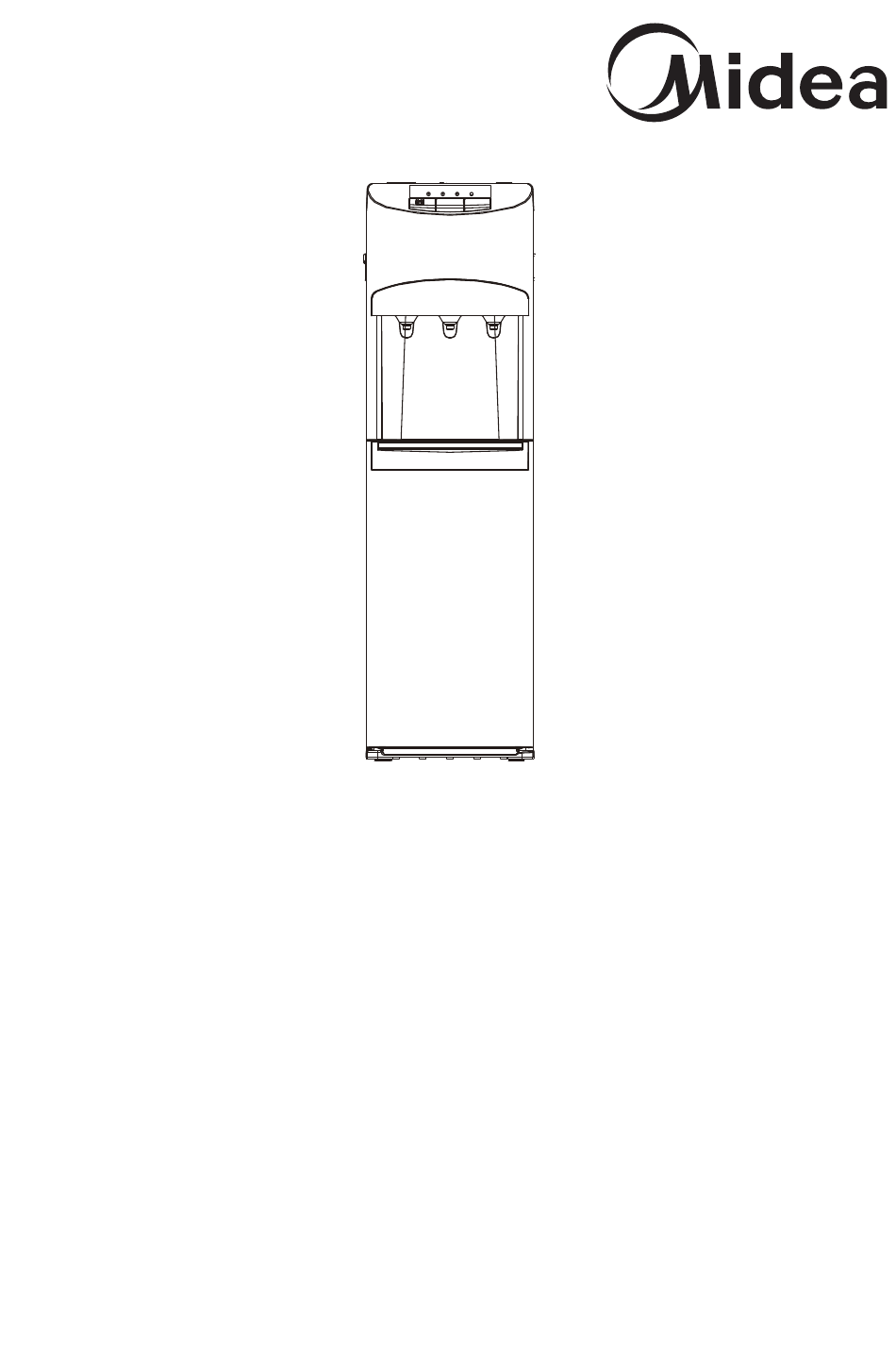

- Page 1 KEEP THIS MANUAL IN GOOD CONDITION, PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE DIRECT DRINKING WATER PURIFIER User Manual Model: JL1131S-UF...
- Page 2 1.PRECAUTION 1-1 Safety Issues Please note the following brief icons and rules for safe use of this product Accessories and filters Troubleshooting To maintain the normal operation of the When the machine fails, please machine, be sure to use accessories disconnect the power and water and filters supplied by original company source immediately...
- Page 3 1-2 packing list Packing box Bracket(1pc)、1/4" PE pipe(3m) Materials bag User's Manual(1 copy) Materials bag 6/8"-2/8" connector(1pc) , Filter flushing tip(1pc) PP fibre filter(1pc), Front active filter(1pc)、 Filter Post active carbon filter(1pc), UF membrane filter(1pc) 2. YOUR DIRECT DRINKING WATER PURIFIER 2-1 Part Name of Water Purifier (FRONT) (REAR)
- Page 4 2-2 Model and Major Parameters Model JL1131S-UF 535W Rated power Heating power 420W 1.0A Cooling current 1.2L/min(0.3MPa) Rated pure water flow Hot water capacity 4L(≥85°C) Cold water capacity 2L(≤10°C) Applicable environment 4-43°C humidity ≤90% 0.1-0.4MPa Applicable water pressure Tap water...
- Page 5 2-5 Working principle 1. Flowchart of water generation 2. Circuit diagram solenoid valve 1 cold water display board tank solenoid valve ambient water outlet Post Front active mem- active cold water outlet fibre carbon brane carbon filter filter filter filter bimetal 1 bimetal 2 hot water outlet...
- Page 6 5. Use the after sale accessory—filter flushing tip, the arrow direction is the water flow direction, insert the PE pipe in the quick joint. In le t 6. Insert the Front active carbon filter into the filter flushing tip, and open the water tap to flush the filter till it doesn’t discharge black water, for about 10min;...
- Page 7 3-2 Machine Installation 1-2. Loosen the screw of the left or right bottom angle just as the picture shown. 3. Use the screw to fix the bracket on the left or right bottom angle of the water dispenser. 4. Make a hole on the floor’s or the desk’s surface where Water dispenser the water dispenser will be installed.
- Page 8 3-5. Maintenance 1. Keep this machine in a dry and cool place and avoid direct sunshine. Rearward of the machine shall be at least 20cm away from the wall. Never put the machine on paper or foam, which may store water and then cause creepage. Never put anything flammable beside this machine.
-
Page 9: Troubleshooting
3-6. Troubleshooting In case of failure, please carry out inspection according to the requirements below. If unresolved, please contact the local service agency. Cause Failure Solution Check the booster pump Low water pressure or water inlet Small water flow Please contact the local service Filter not replaced in time, agency to replace the filter beyond the use time... - Page 10 The product is subject to change without notice. Please keep this manual properly. Foshan Midea Chungho Water purification Equipment Co., Ltd No.68 GuangLe Road, BEIJIAO, SHUNDE, FOSHAN, GUANGDONG, R.P.CHINA...
