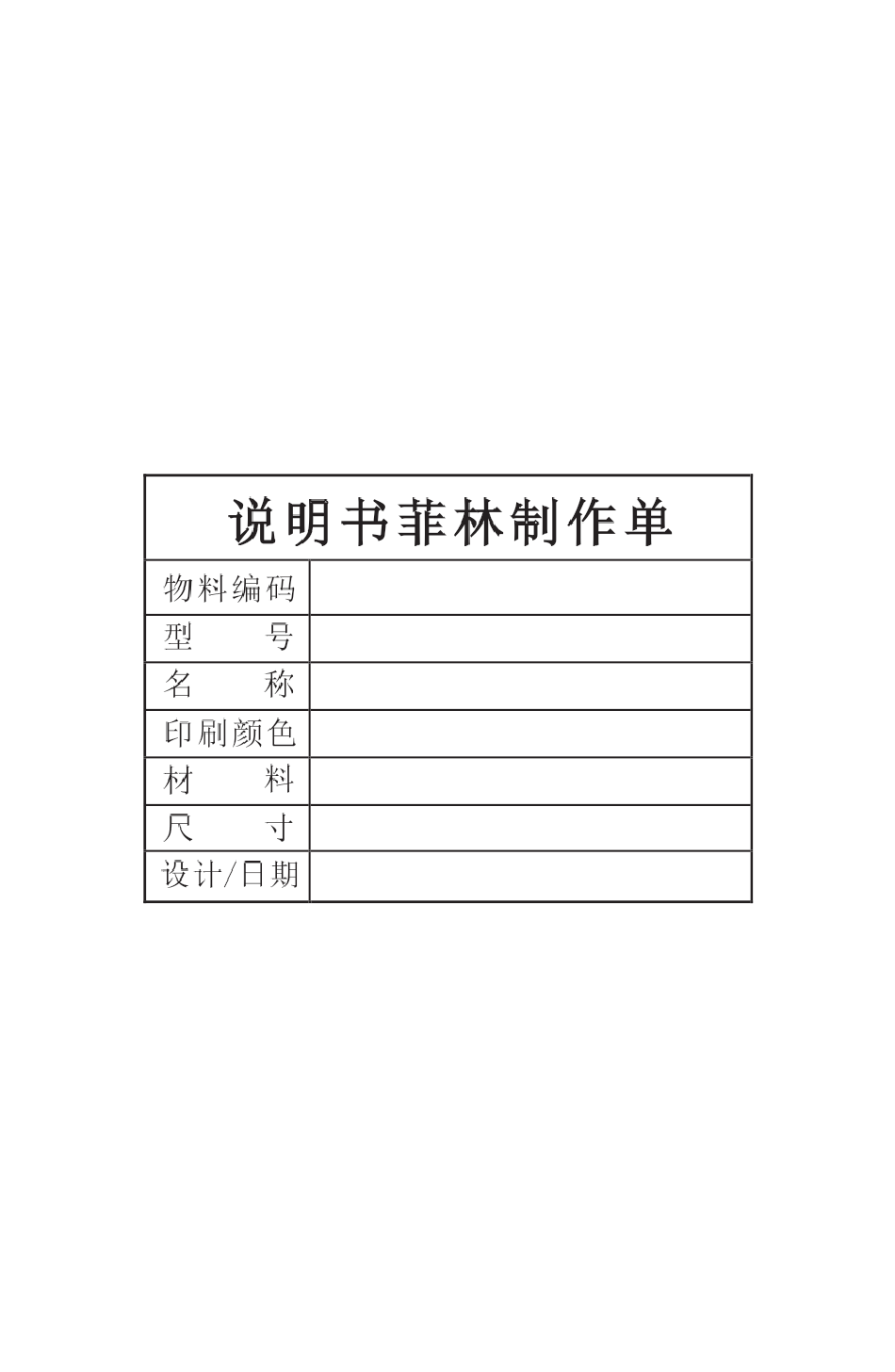

- Page 1 16163200A09569 QC1646-25L 说明书 单色印刷 80双胶纸 145* 210mm 曾平2022-6-20...

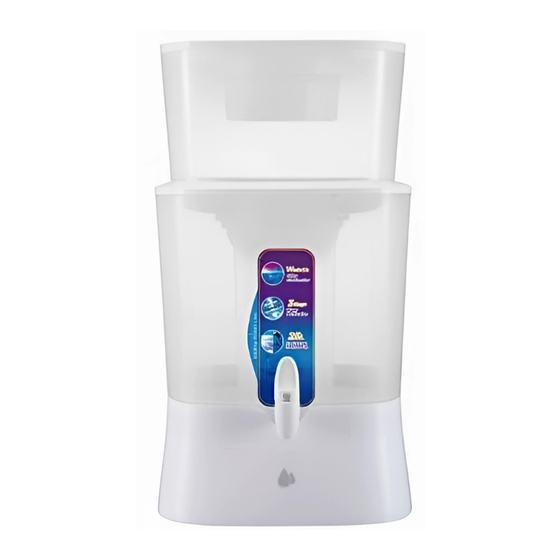

- Page 2 Instruction Manual Model: QU1646-25L Congratulations on purchasing our Midea 3 Stage Mineral Water Filtration. Each unit is manufactured to ensure safety and reliability. Before installing and operating your water purifier, please read the instruction manual carefully and keep it for...
-
Page 3: Important Safegaurds
IMPORTANT SAFEGAURDS 1. Please store the water filtration in a cool place with, far away from sunlight and direct sunlight. 2. If you are not going to be using the water purifier barrel for a long period of time it is suggested to discharge water from the water purifier barrel. -
Page 4: Technical Parameters
1. TECHNICAL PARAMETERS Model QU1646-25L Assembly size: 322*289*505mm; Dimension Carton size: 302*302*300mm Capacity of upper barrel Capacity of lower barrel Filter PP cotton +active carbon +ultra-filtration 6~12 months (the replacement cycle is subject to the local Service life of filter... -
Page 5: Explosive View
3. EXPLOSIVE VIEW Rotary cover Filter decorative cover Top cover Seal ring Non-woven Seal cover fabric cover Air exhaust cover Air exhaust ball Upper non-woven fabric pat Upper barrel Lower non-woven fabric pat Support base Active carbon filter housing Seal ring Ultrafiltration filter upper cover Lower barrel... - Page 6 5) Install the upper top cover. 6) Aim at the clamp position, 4) Install the upper non-woven fabric pat of the filter housing. turn the cover clockwise till it makes “click” sound, which means it has been secured into place. 4.2 FLUSH THE ACTIVE CARBON FILTER 1) Install the seal ring at the top of the filter housing 2) Press the filter cover in the upper barrel...
- Page 7 4.3 INSTALLATION OF ULTRA-FILTRATION FILTER 1) Install the seal ring at the 2) Install UF filter into the bottom of the bottom of the active active carbon filter and tighten it by carbon filter. turning it in a clockwise motion.
-
Page 8: Install The Faucet
3) Press the filter cover 4) Turnover and check t h a t the into the upper barrel. filter is secured into the upper barrel. 5. INSTALL THE FAUCET 1) Insert the faucet 2) Turn it clockwise 3) Rotate till the 4) Tighten the nut into the lower until secured... -
Page 9: Important Notes
7. IMPORTANT NOTES 1) The filter must be thoroughly flushed before using the active carbon filter for the first time, refer to 4.2 for the method. 2) Open the rotary cover, pour tap water into it, shown as drawing below. 3) Please do not pour too much tap water since the filtering speed is slow, once the upper barrel is full of water stop pouring, when its half empty continue the same process until the lower barrel is full. -
Page 10: Replace The Filter
9. REPLACE THE FILTER 1) Open the upper cover of the active carbon filter, take out the active carbon, flush the filter housing, then add active carbon according to Step 4.1. 2) Open the ultra-filtration filter, take out the ultra-filtration, replace it with a new ultrafiltration, the method is shown as below: 1) Filter housing, seal 2) Fix the seal ring... - Page 11 The product is subject to change without notice. Please keep this manual properly.
