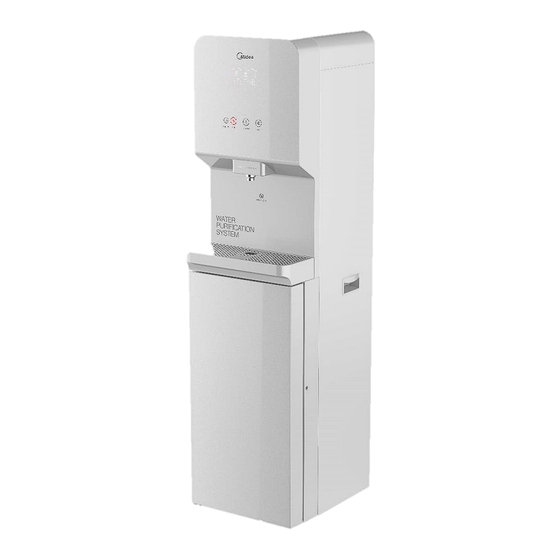

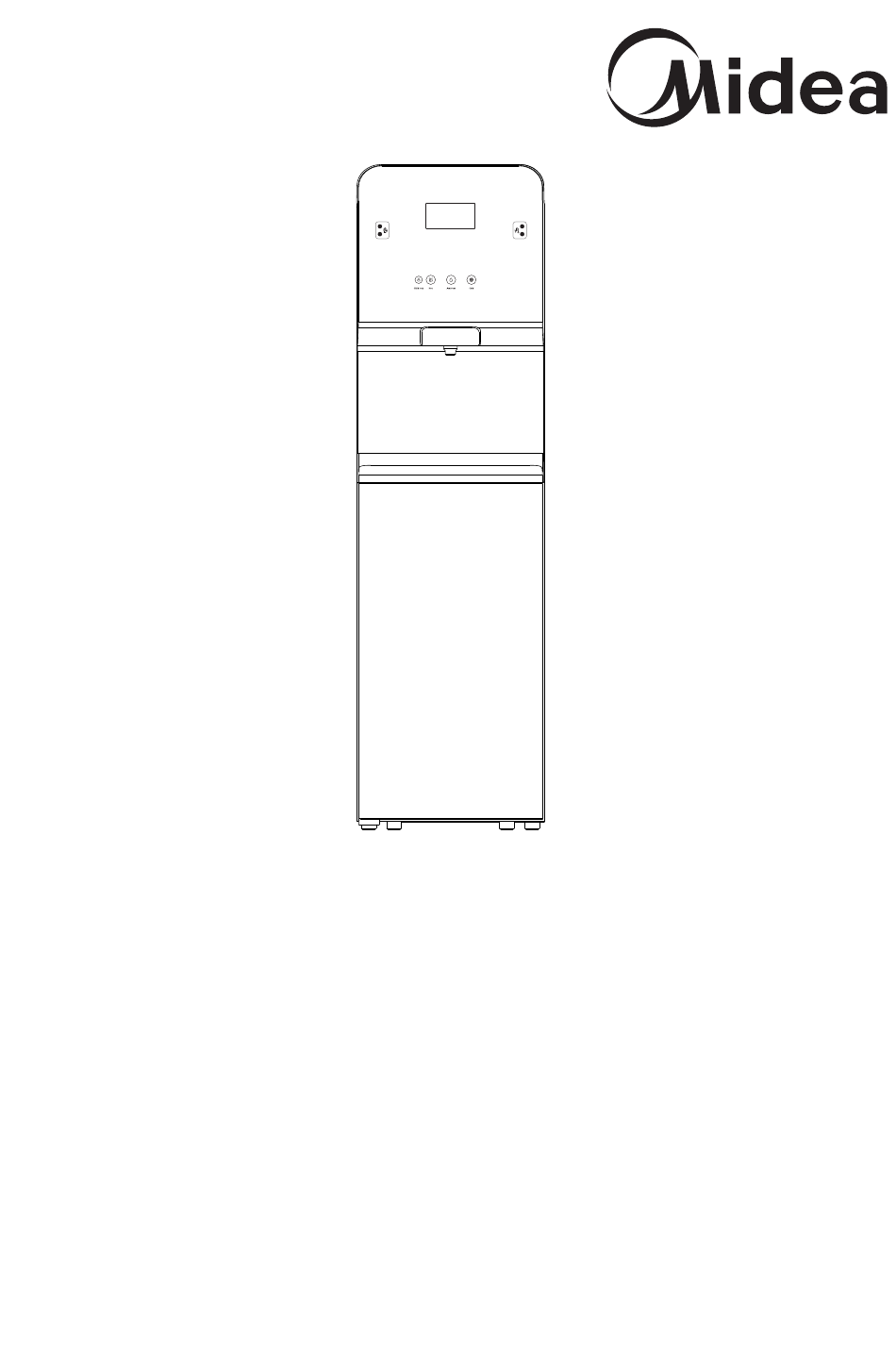

- Page 1 The diagram above is just for reference. Please take the appearance of the actual product as the standard. WATER PURIFIER Instruction Manual Model: JL1850S-RO Before installing and operating your water purifier, please read the instruction manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
DIRECTORY 1. Precaution 1-1 Safety Issues 1-2 Packing List 2. Your Direct Drinking Water Purier 2-1. Part Name of Water Purier 2-2. Model and Major Parameters 2-3. Product Features 2-4. Working Principle 3.Use Guide and Maintenance 3-1. Guidance on Unpacking and Installation 3-2. -
Page 3: Precaution
1. Precaution 1-1 Safety Issues Please note the following brief icons and rules for safe use of this product Accessories and lters Troubleshooting To maintain the normal operation of the When the machine fails, please machine, be sure to use accessories disconnect the power and water and filters supplied by original company source immediately... -
Page 4: Packing List
18.WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. 19.WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. 20.To ensure the product using well, please make sure the product installation, testing and filter exchange are made by aftersales service person. -
Page 5: Model And Major Parameters
2-2. Model and Major Parameters Model JL1850S-RO Rated voltage 120V~ Rated frequency 60Hz Rated power 920W Heating power 800W Cooling current 2.0A Rated pure water flow 1.2L/min(0.3MPa) Hot water capacity 7.5L/h(≥85°C) Cold water capacity 4L/h(≤10°C) Applicable environment 4-43°C humidity ≤85% Applicable water pressure 0.1-0.4MPa... -
Page 6: Working Principle
2-4. Working Principle 1. Flowchart of water generation UV-LED Clean water tank Warm water outlet solenoid valve Pump Cold water tank Waste water solenoid valve Cold water outlet solenoid valve Hot water tank Drain water Hot water outlet solenoid valve Marginal data Inflow RO producing water... -
Page 7: Use Guide And Maintenance
3. Filter Function Introduction and Replacement Cycle Replacement Stage Filter Function Cycle Carry out coarse filtration of original water, PP sediment 3-6 months Stage 1 and filter out mud, sand, impurity, iron rust filter-F1 and suspension, etc. Absorb unusual colors and odors, Remove C1 active carbon Stage 2 residual chlorine and organic substances... - Page 8 Please install the filter to align the positioning mark line, below picture for reference. Lower door 8. Take out the pin of the quick joint at the rear of the products side plate' s, and then take out the white plug. Outlet of the water 3/8"...
-
Page 9: Machine Installation
14:Water tray discharge treatment Large sealing Water tray drainage outlet Small sealing Drainage hole of the front housing Sealing ring Sealing ring If the remaining water in the water Step 2, install the big sealing When the water can't be tray won't be received with water plug in the drainage hole of the smoothly discharged from... -
Page 10: Maintenance
DISPENSING WATER ”,the device starts discharging cold water; Touch the cold 1. Touch the cold water button“ ”again, the device stops discharging water, finish getting water. water button“ ”,the device starts discharging normal water; Touch the 2. Touch the normal water button“ ”again, the device stops discharging water, finish getting water. -
Page 11: 3-5.Troubleshooting
9. If the supply cord is damaged, it must be replaced by the manufacturer or qualified person so as to avoid a hazard. 10. The water source for the water purifier is civil tap water. 11. Never dismantle spare parts of the machine to avoid water leakage or damage. 12. - Page 12 The product is subject to change without notice. Please keep this manual properly. Foshan Midea Chungho Water purication Equipment Co., Ltd No.68 GuangLe Road, BEIJIAO, SHUNDE, FOSHAN, GUANGDONG, R.P.CHINA Website: www.midea.com...
