GIT-EZDS AFTERMARKET DISTRIBUTORSHIP MANUAL
TROUBLE SHOOTING GUIDE

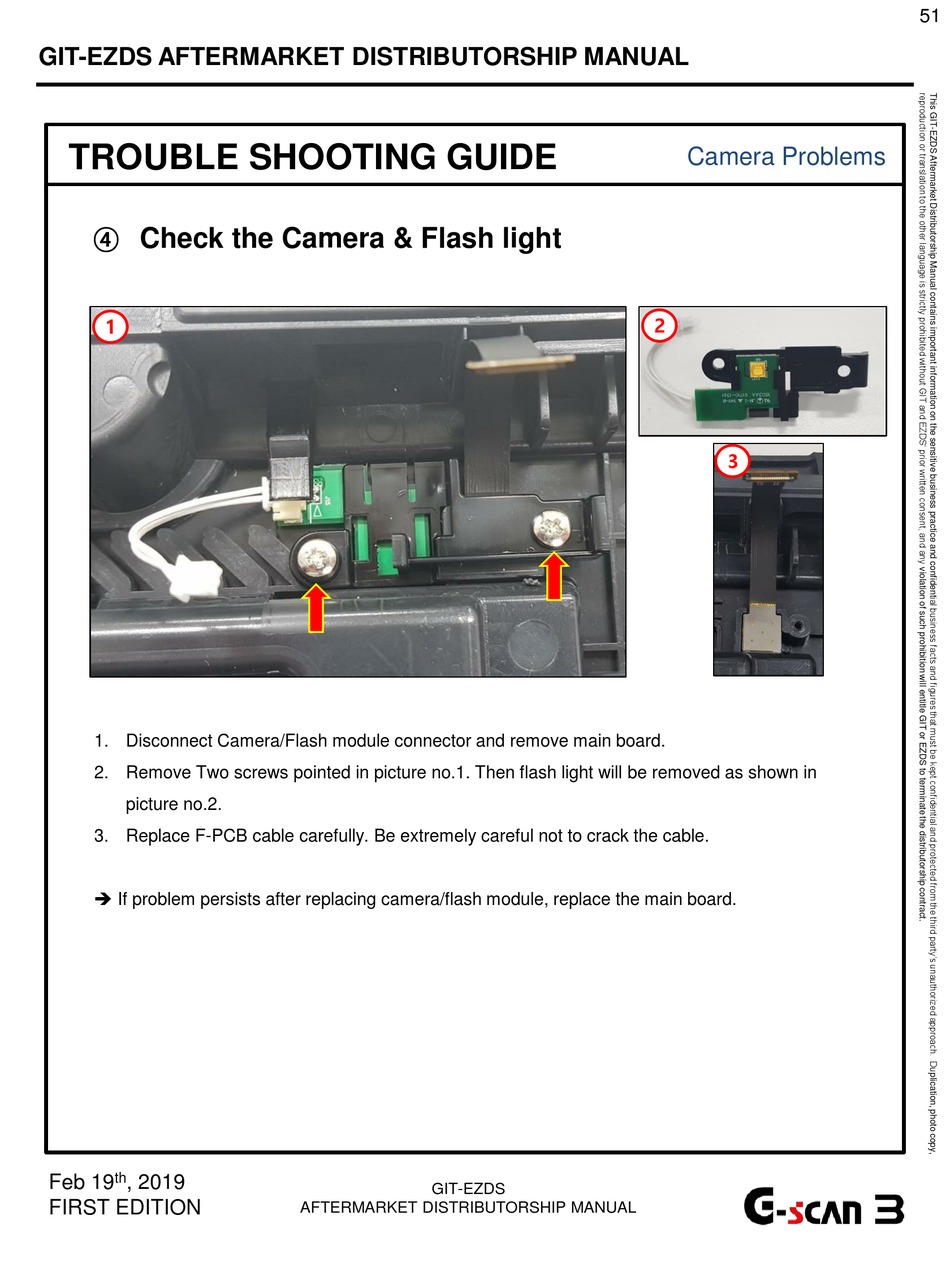

④ Check the Camera & Flash light
1
1. Disconnect Camera/Flash module connector and remove main board.
2. Remove Two screws pointed in picture no.1. Then flash light will be removed as shown in
picture no.2.
3. Replace F-PCB cable carefully. Be extremely careful not to crack the cable.
 If problem persists after replacing camera/flash module, replace the main board.
th
Feb 19 , 2019
FIRST EDITION
GIT-EZDS
AFTERMARKET DISTRIBUTORSHIP MANUAL
Camera Problems
2
3
