TROUBLE SHOOTING GUIDE
③ Check Connection of LCD module harnesses
1. Remove Front case referring to Part Replacement Manual

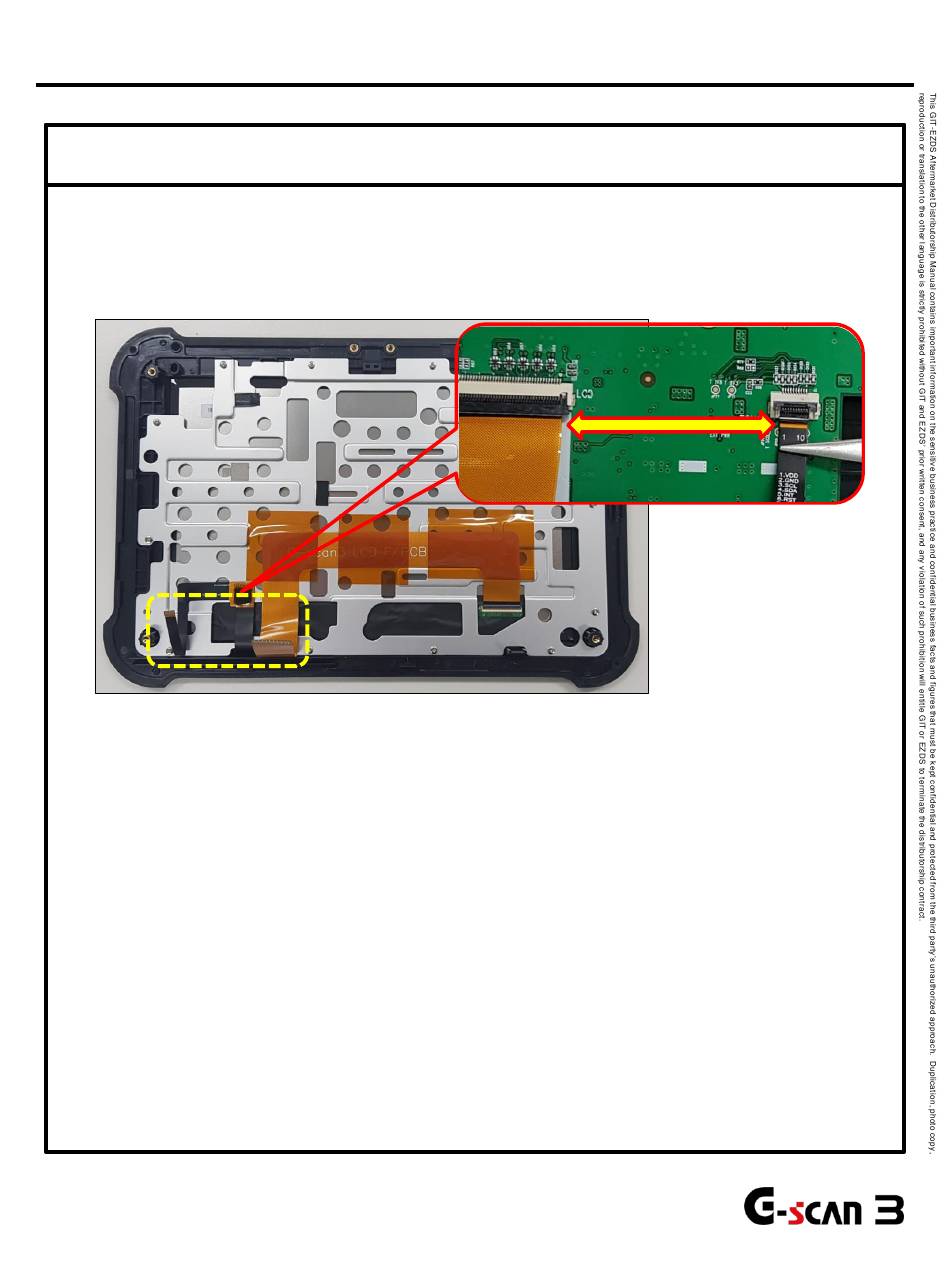

2. Make sure that lines on LCD F-PCB cable and Touch F-PCB cable is aligned as shown above.
3. Remove and clean F-PCB contact area.
4. Try to turn the power ON and check the LCD operation before assembling the unit.
* Replace F-PCB and if the problem persists, replace the LCD module.
