Summary of Contents for GIT G-scan Tab

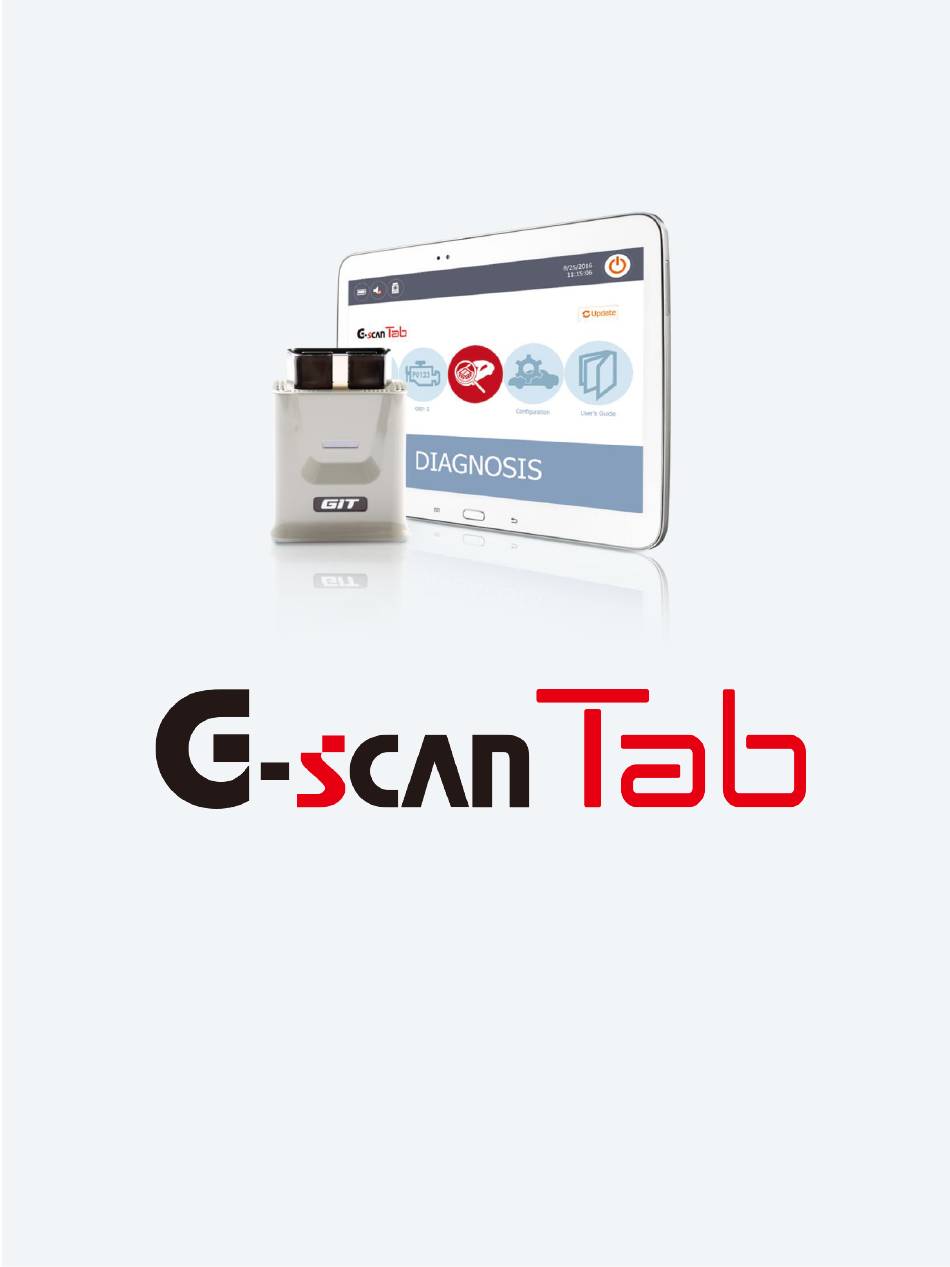

- Page 1 P/No.: G1VZNZN001 P. 1 Quick Manual Ver. GT-AM-GN-01...
-
Page 2: Hardware Configuration
P. 2 1. Hardware Configuration Included Components GVCI Module (1EA) Extension Cable (1EA) Specification & System Requirement GVCI Specification Memory Flash Memory 2MByte / SRAM 256KByte Operating Voltage 7~30VDC Dimension / Weight 58 X 74 X 36 mm / 90g Wireless protocol Bluetooth 2.1 + EDR (2.4GHz ) Indicators... - Page 3 P. 3 1. Hardware Configuration Connection to the vehicle Locate the OBD2 vehicle side DLC socket near the driver’s seat, generally under the dash panel but may found in different locations, and make connection by inserting the GVCI to the socket. If necessary, please use the extension cable for easier access to the vehicle side DLC.
- Page 4 P. 4 2. G-scan Tab S/W Installation G-scan Tab Program Installation 1 Download the G-scan Tab installation file from the official website. http://G-scan.gitauto.com Unzip the downloaded file, and locate the “setup.exe” file among the extracted files in the folder. Execute setup.exe and G-scan Tab Installation Wizard begins the...
- Page 5 Please make sure to install all the Miscrosoft Visual C++ Redistribution of 2012 and 2013 package components to prevent unusual operation of Installshield InstallShield Wizard will carry on G-scan Tab software installation. When software installation is complete, find the G-scan Tab icon on the desktop of the PC and run G-scanTab program...
- Page 6 3. G-scan Tab Bluetooth Pairing G-scan Tab Pairing Select [Configuration] from G-scan Tab start menu and go to [Bluetooth] Tab. Turn the GVCI power ON by connecting it to a vehicle DLC socket, then the serial number of the GVCI within the range is listed on the screen. Select the right one and the GVCI will be paired with the PC.
- Page 7 P. 7 4. G-scan Tab Diagnostic S/W Download Diagnostic Software Download Select [Update] button from the G-scan Tab start menu to download diagnostic software from the server. The diagnostic software named by the car makes that are downloadable from the server are checked and listed on the screen.
- Page 8 P. 8 5. Functions and Icons G-scan Tab Start Screen Main Function Menu Icon Name Description Flight Recording Retrieves the saved screen capture image and flight record data files. Conducts generic diagnosis of Powertrain system for the OBD2 (EOBD) OBD-II compliant vehicles.
- Page 9 Bluetooth White: No data being transmitted. Blue: Data being transmitted. Date & Time Indicates date and time of the PC system. Quit button that shuts down G-scan Tab Power program. Screen capture button for saving the current Screen Capture screen display as an image file.
-
Page 10: Diagnostic Functions
Diagnostic Trouble Code DTC read and erase are the basic of the basic functions for diagnosis. G-scan Tab provide 2- line DTC description that shows the long-text DTC descriptions in full, no more acronyms or... - Page 11 Actuation Test Actuation test is another basic diagnostic functions that G-scan Tab provides. Users can check the control unit’s operation by activating or deactivating the operation of an active component under control unit’s command.
- Page 12 Providing that this product has been installed and used as instructed in the user’s manual, GIT will repair the GVCI module with new or reconditioned parts, free of charge for 1 (one) year from the date of original purchase in the even of defect in material and workmanship.
