TROUBLE SHOOTING GUIDE

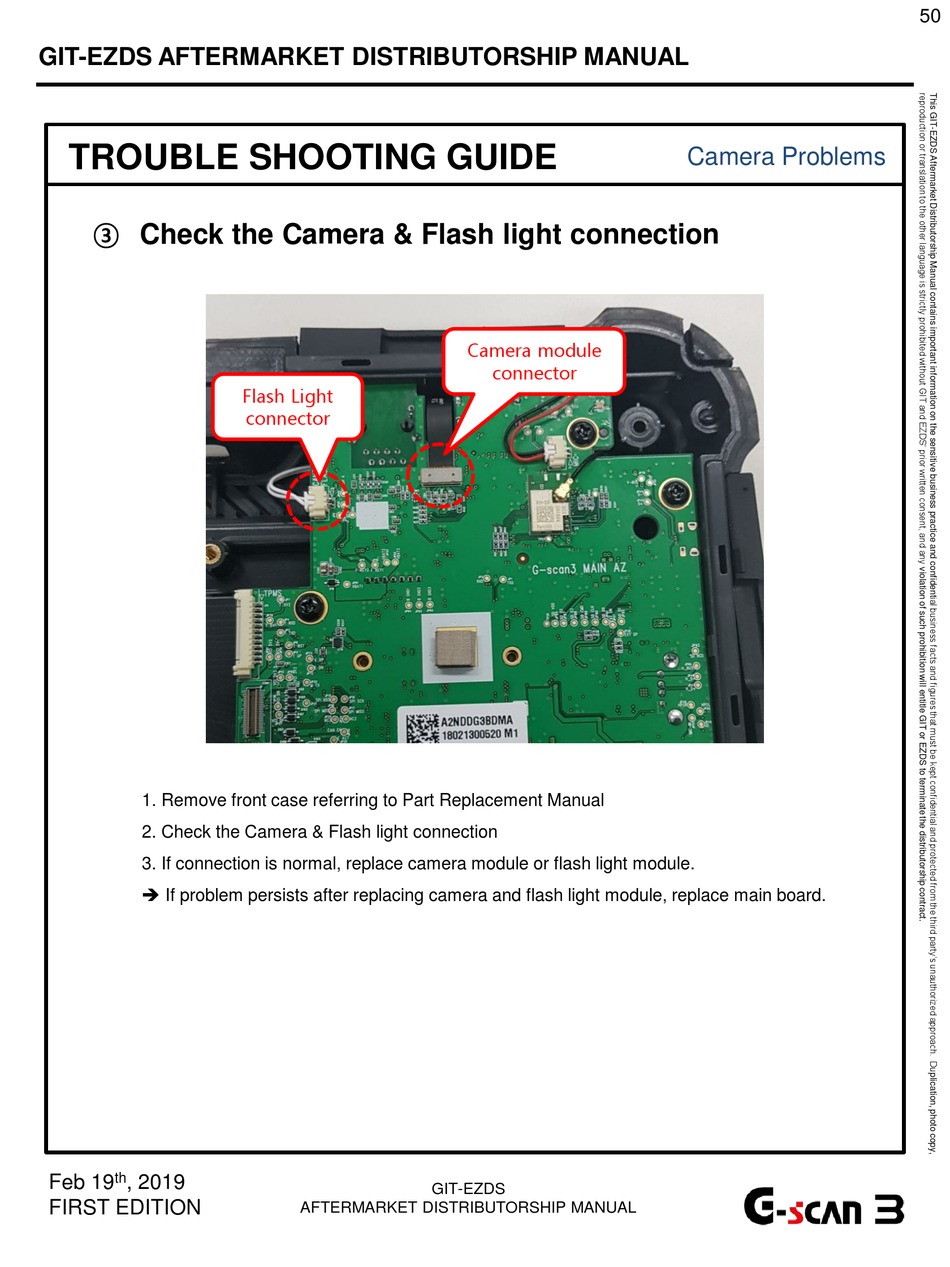

③ Check the Camera & Flash light connection
1. Remove front case referring to Part Replacement Manual
2. Check the Camera & Flash light connection
3. If connection is normal, replace camera module or flash light module.
 If problem persists after replacing camera and flash light module, replace main board.
th
Feb 19 , 2019
FIRST EDITION
Flash Light
connector
AFTERMARKET DISTRIBUTORSHIP MANUAL
Camera module
connector
GIT-EZDS
Camera Problems
