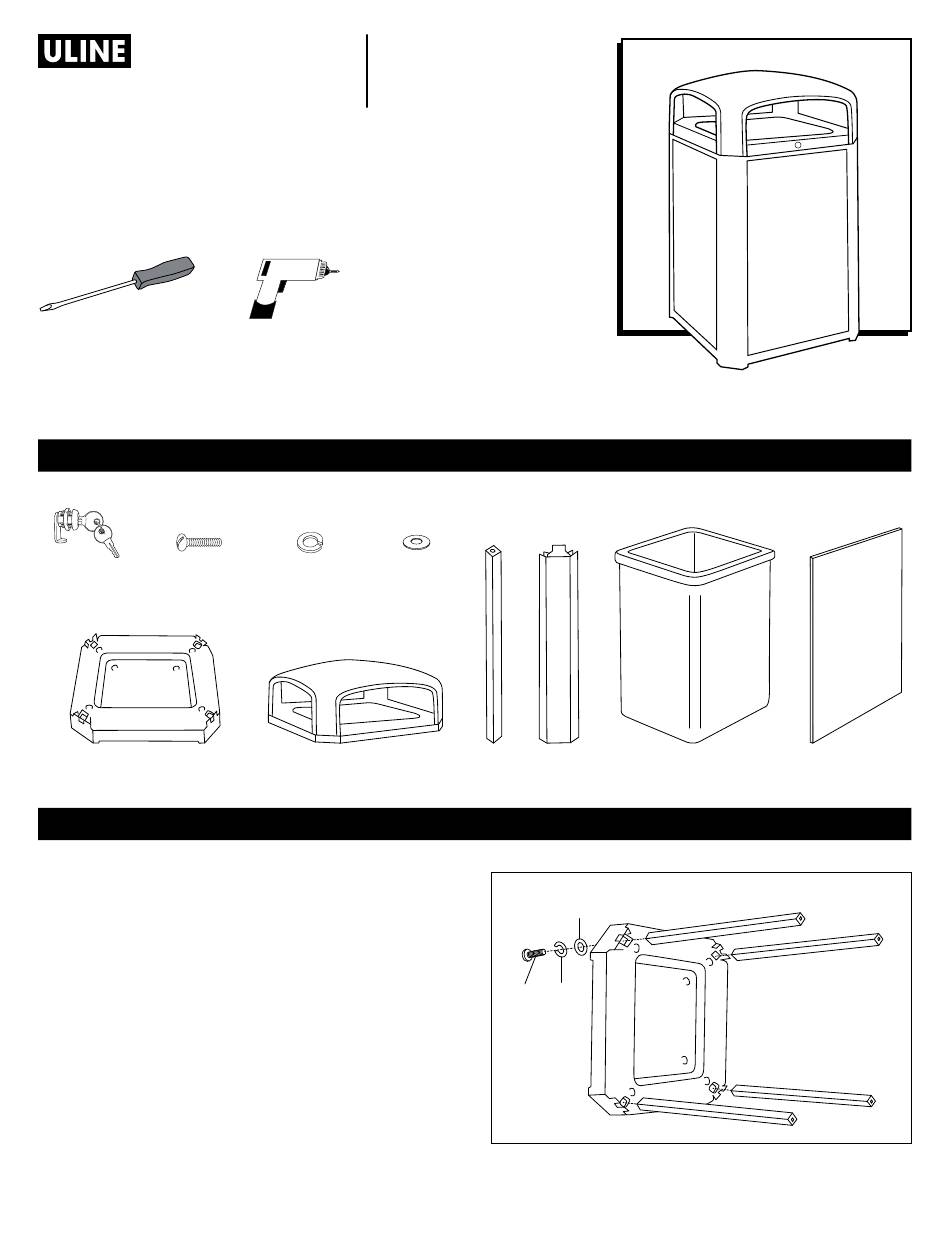

H-1209, H-3570
RUBBERMAID
®
TOP RECEPTACLE
TOOLS NEEDED
Flathead Screwdriver
Lock and Key
Bolt x 8
Assembly
(Not Included)
Base x 1
BASE ASSEMBLY
1.
Place base on its side on a smooth, non-marring
surface.
2. Insert metal legs into square sockets in base.
(See Figure 1)
3. Attach metal leg to base with bolt, lock washer and
flat washer. (See Figure 1)
4. Repeat for remaining metal legs. Tighten all bolts
securely using screwdriver.
PAGE 1 OF 9
1-800-295-5510
uline.com
DOME
Electric Drill
(For optional lock
and key assembly)
Lock
Washer x 8
Washer x 8
Dome Top and Collar x 1
PARTS
Metal
Plastic
Leg x 4
Leg x 4
ASSEMBLY
Figure 1
Washer
Lock
Bolt
Washer
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Liner x 1
Panel x 4
0321 IH-1209
