4.3.1 Connecting the Parallel cables to SPM modules
The SPM parallel cables should be routed as shown in Figure 4-4 below. The screw
locks on the parallel cable must be fully tightened.

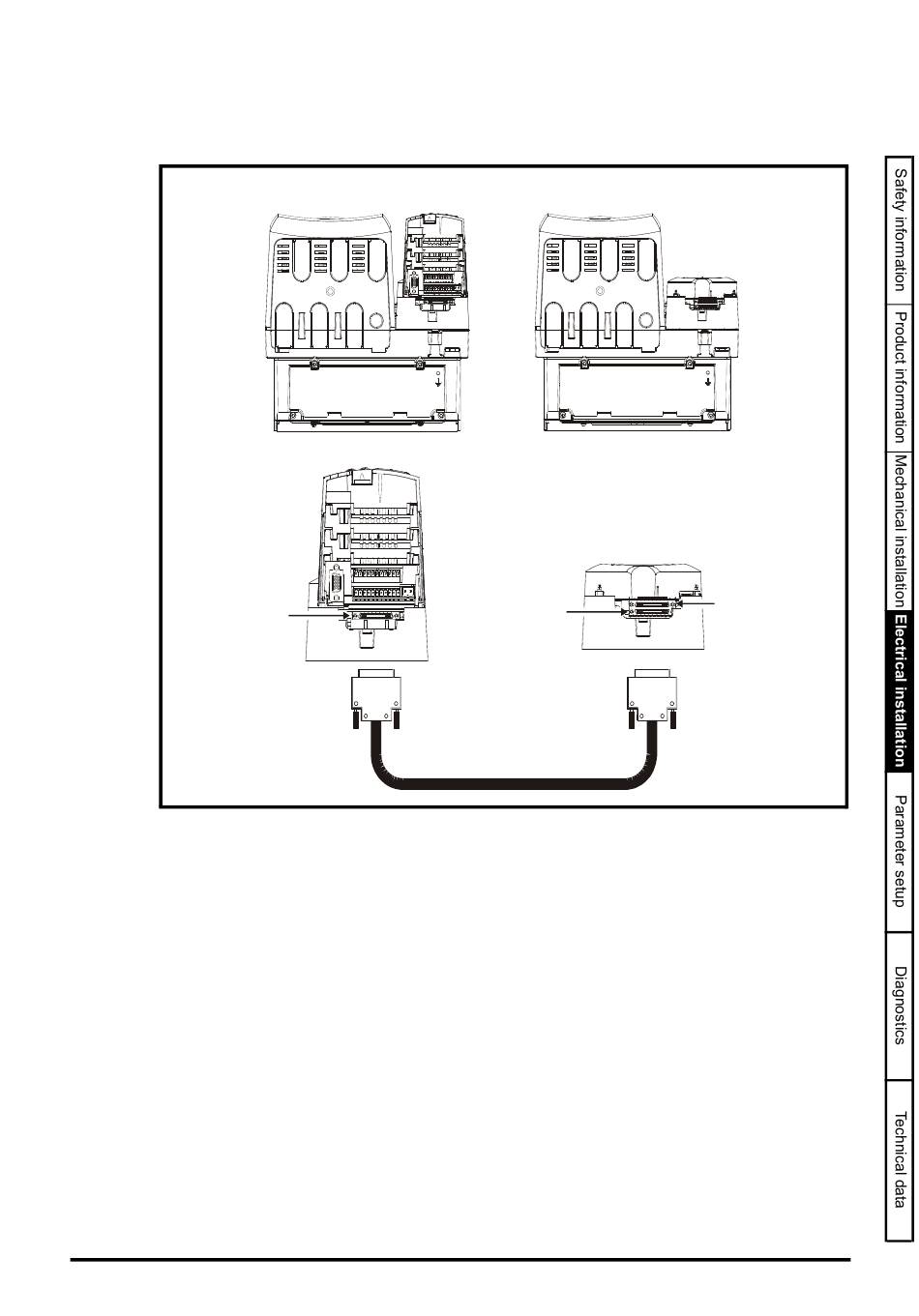

Figure 4-4 Connection of parallel cables
Output from master
to slave
Additional SPM paralleling cables may be required depending on the configuration or
type of installation see section 2-2 Ordering paralleling cables on page 9 for details.
SPM Power Selector Module Installation Guide
Issue: 2
SPM power module fitted
with master control pod
www.controltechniques.com
SPM power module fitted
with slave control pod
Input from master
to slave
Paralleling cable
Output from slave
to second slave
