Mechanical installation

This chapter details the installation of the SPM Power Selector Module. The SPM Power
Selector Module is intended for installation within an enclosure.
3.1

Dimensions and mounting holes

The SPM Power Selector Module is only suitable for surface mounting.

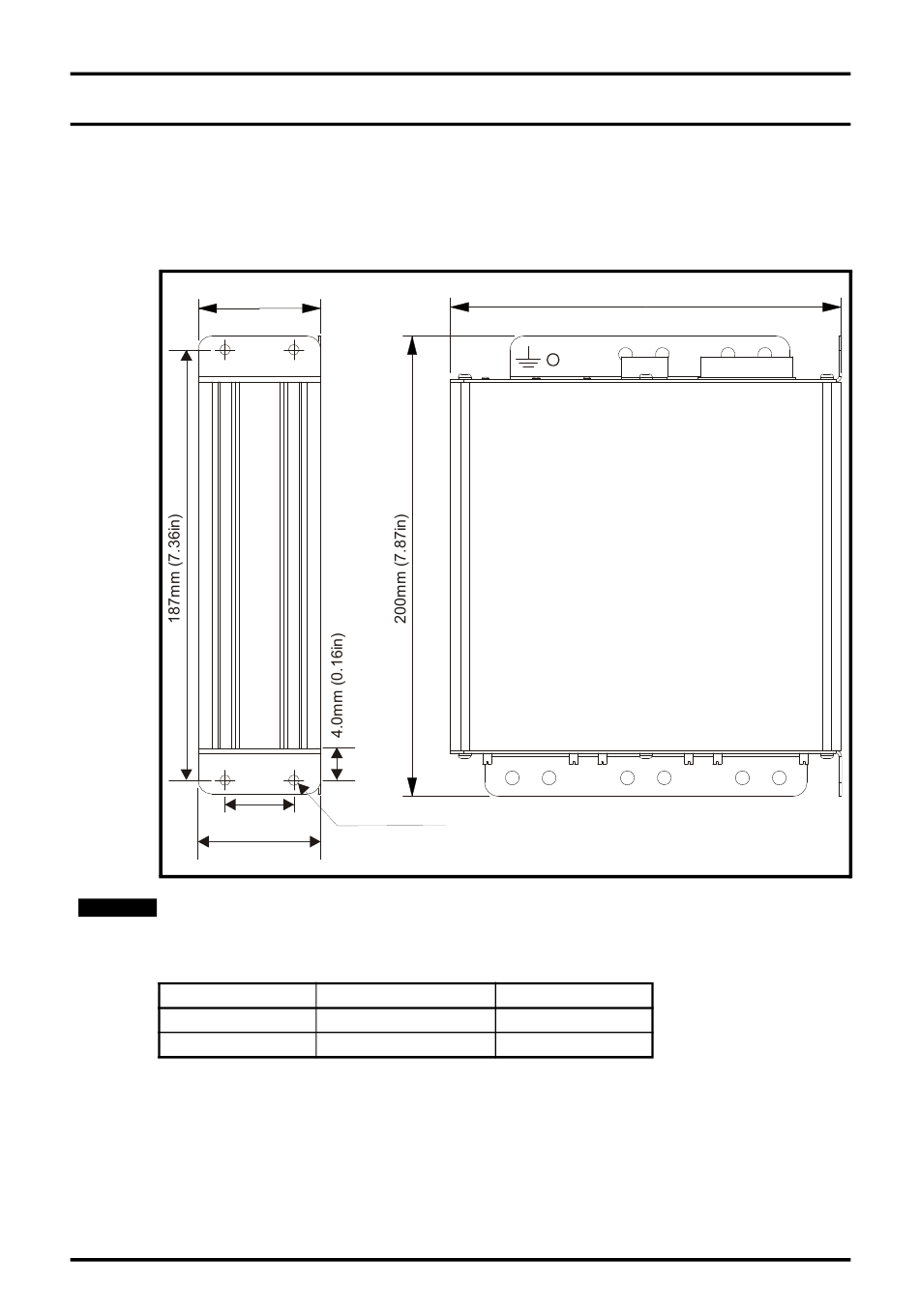

Figure 3-1 Mounting the SPM Power Selector Module
54mm (2.12in)
30mm (1.18in)
53.5in (2.11in)
There are different sizes of through holes on the SPM Power Selector Module which are
NOTE
provided for various purposes. Table 3-1 below details the purpose of both hole sizes.
Table 3-1 Mounting hole identification
Hole size
4.5mm
6mm
10
∅4.5mm (0.18in)
Purpose
Mounting
Cable management
SPM Power Selector Module Installation Guide
www.controltechniques.com
170mm (6.63in)
Position
4
10
Issue: 2
