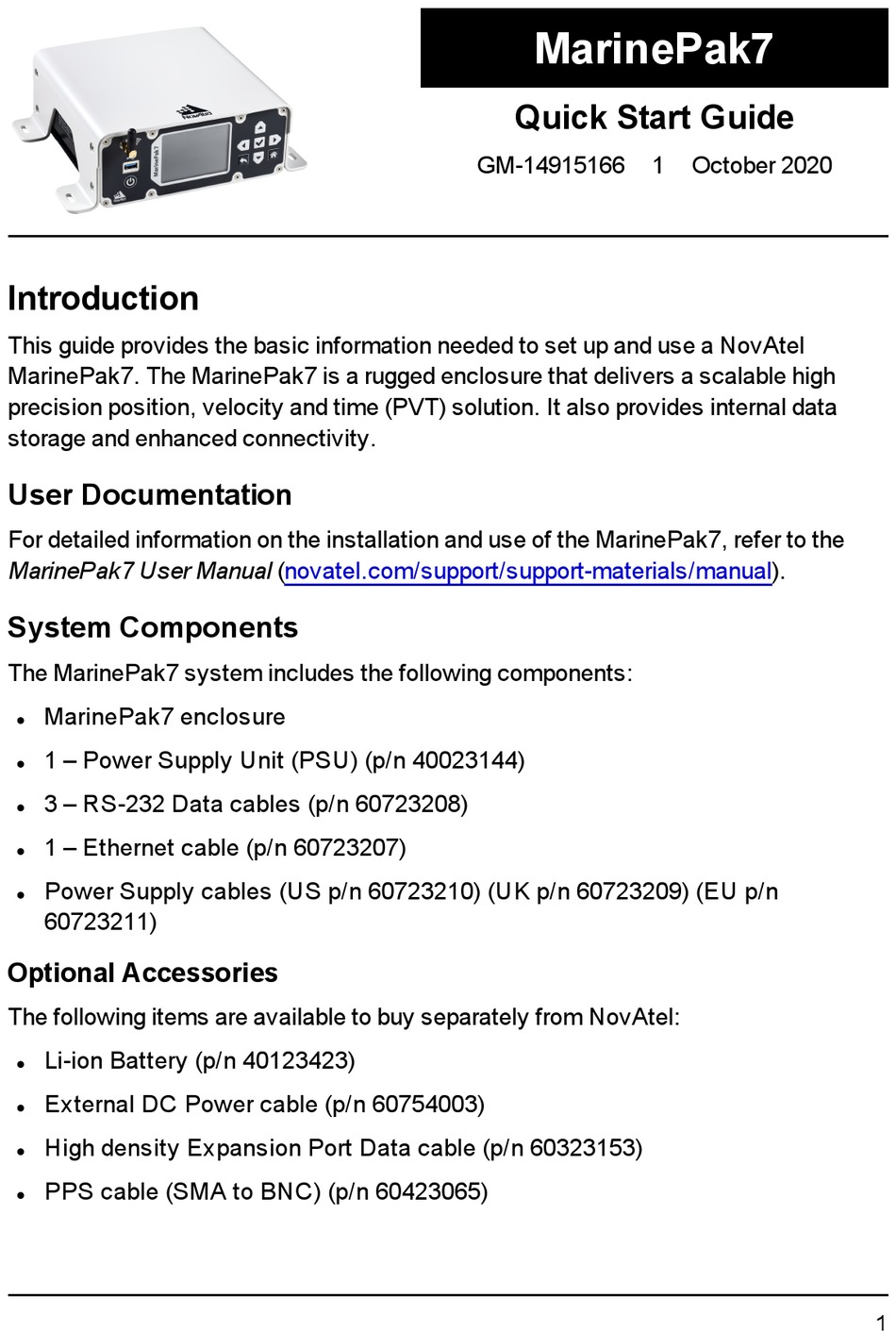

Novatel MarinePak7 Quick Start Manual

Introduction

This guide provides the basic information needed to set up and use a NovAtel
MarinePak7. The MarinePak7 is a rugged enclosure that delivers a scalable high
precision position, velocity and time (PVT) solution. It also provides internal data
storage and enhanced connectivity.

User Documentation

For detailed information on the installation and use of the MarinePak7, refer to the
MarinePak7 User Manual (novatel.com/support/support-materials/manual).

System Components

The MarinePak7 system includes the following components:
MarinePak7 enclosure
l
1 – Power Supply Unit (PSU) (p/n 40023144)
l
3 – RS-232 Data cables (p/n 60723208)
l
1 – Ethernet cable (p/n 60723207)
l
Power Supply cables (US p/n 60723210) (UK p/n 60723209) (EU p/n
l
60723211)

Optional Accessories

The following items are available to buy separately from NovAtel:
Li-ion Battery (p/n 40123423)
l
External DC Power cable (p/n 60754003)
l
High density Expansion Port Data cable (p/n 60323153)
l
PPS cable (SMA to BNC) (p/n 60423065)
l
MarinePak7
Quick Start Guide
GM-14915166 1 October 2020
1
