Aries 4520 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left side bar
1 Passenger / right side bar

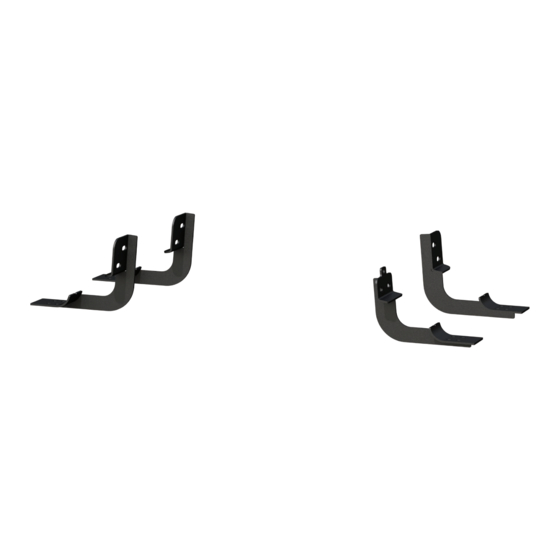

1 Mounting bracket,
driver-side front
3 Mounting bracket, universal
4 Bolt plate, 6mm
16 Flat washer, 6mm
16 Nylock nut, 6mm
5 Hex bolt, 8mm
5 Flat washer, 8mm
5 Lock washer, 8mm
4 Hex bolt, 10mm
4 Flat washer, 10mm
4 Lock washer, 10mm
4 Nut & bolt plate, 12mm
4 Flat washer, 12mm
4 Lock washer, 12mm
4 Hex nut, 12mm
4 Plastic bolt retainer, 12mm
Additional Hardware*
16 T-bolt, M8 x 1.25 - 25mm, CL8.8
16 Flat washer, M8
16 Lock washer, M8
16 Hex nut, M8 x 1, CL8.8
* Aluminum side bars are supplied
with additional hardware.
Quantities listed are in addition
to the standard supplied hardware.

Tools Required

Torque wrench Level
Socket, 10mm Socket, 16mm
Socket, 13mm Socket, 18mm
Level of Difficulty
Easy
Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
PAGE 1 • 4520-RA • 800.798.0813 • NEED ASSISTANCE?
