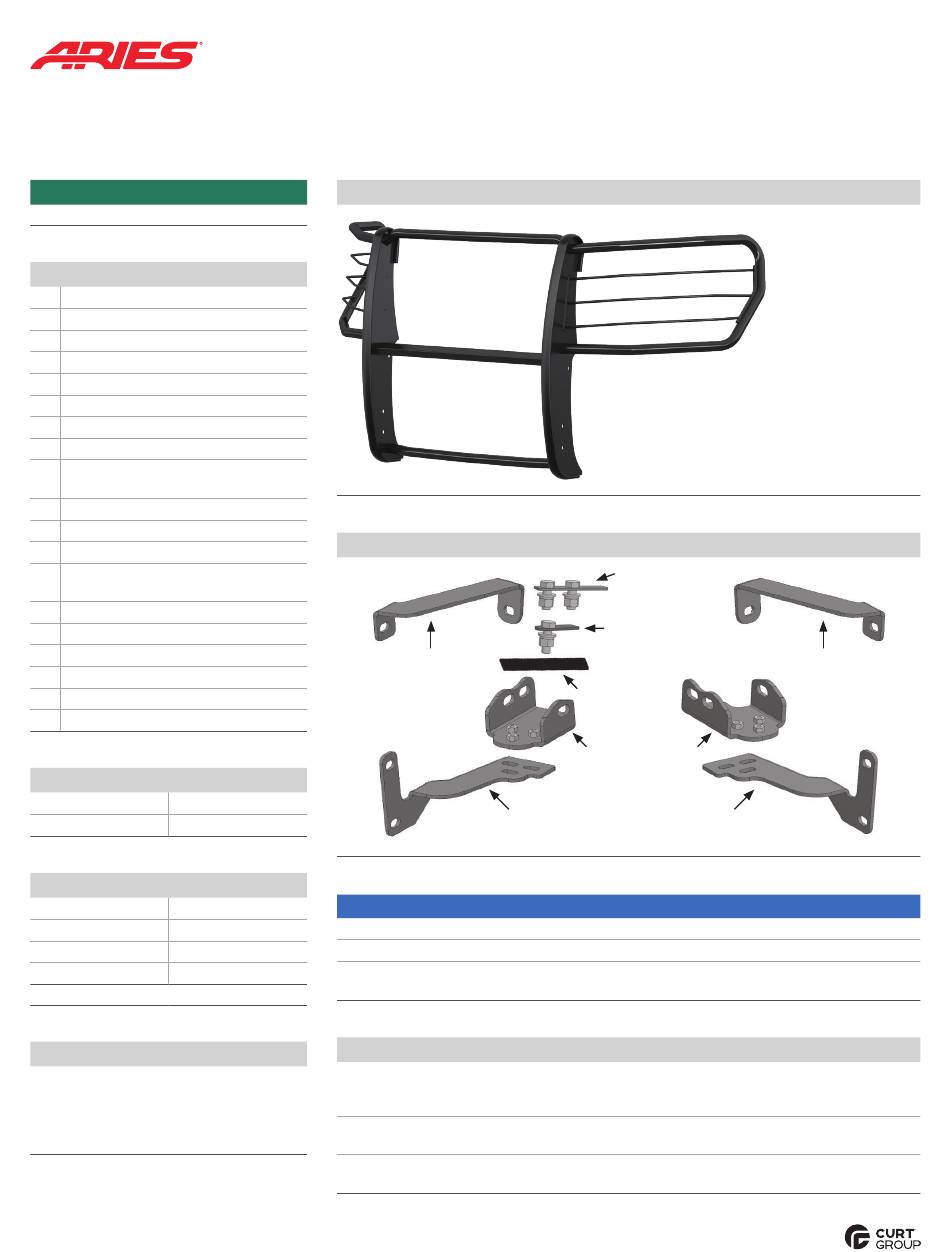

Aries 4092 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
1 Grille guard
2 Frame mounting bracket
1 Driver / left mounting bracket
1 Passenger / right mounting bracket
1 Driver / left top bracket
1 Passenger / right top bracket
2 Double bolt plate, 12-1.75mm x 30mm
2 Single bolt plate, 12-1.75mm x 35mm
6 Flat washer,
12mm x 24mm OD x 2.5mm
6 Lock washer, 12mm
6 Hex nut, 12-1.75mm
6 Hex bolt, 10-1.50mm x 30mm
12 Flat washer,
10mm x 27mm OD x 3mm
6 Lock washer, 10mm
6 Hex nut, 10-1.50mm
6 Hex bolt, 8-1.25mm x 30mm
6 Flat washer, 8mm x 24mm OD x 2mm
6 Lock washer, 8mm
2 Adhesive backed foam tape
Tools Required
Ratchet Utility knife
Torque wrench Socket set
Torque Specifications
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
Product Registration and Warranty
CURT Group stands behind our products
with industry-leading warranties. Provide
feedback and help us to improve our
products by registering your purchase at:
warranty.curtgroup.com/surveys
ARIESAUTOMOTIVE.COM

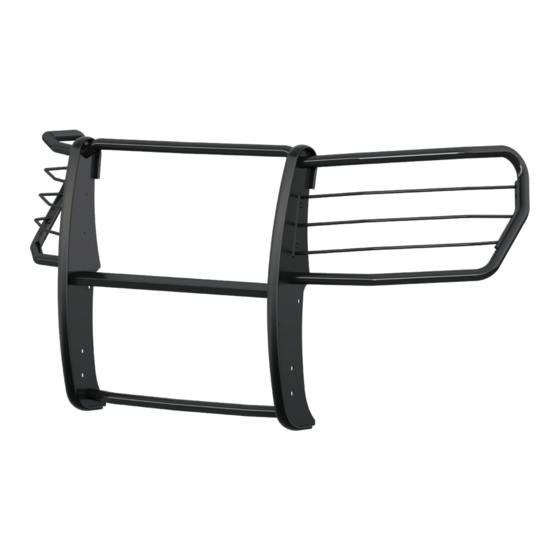

Product Photo
Brackets and Hardware
Passenger / right
top bracket
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
• NEED ASSISTANCE? • 877.287.8634
(2) Double bolt plates,
12mm x 30mm
(2) Single bolt plates,
12mm x 30mm
Adhesive backed
foam tape
(2) Frame brackets
Passenger / right
mounting bracket
• 4092-INS-RA • PAGE 1
Driver / left
top bracket
Driver / left
mounting bracket
4092
