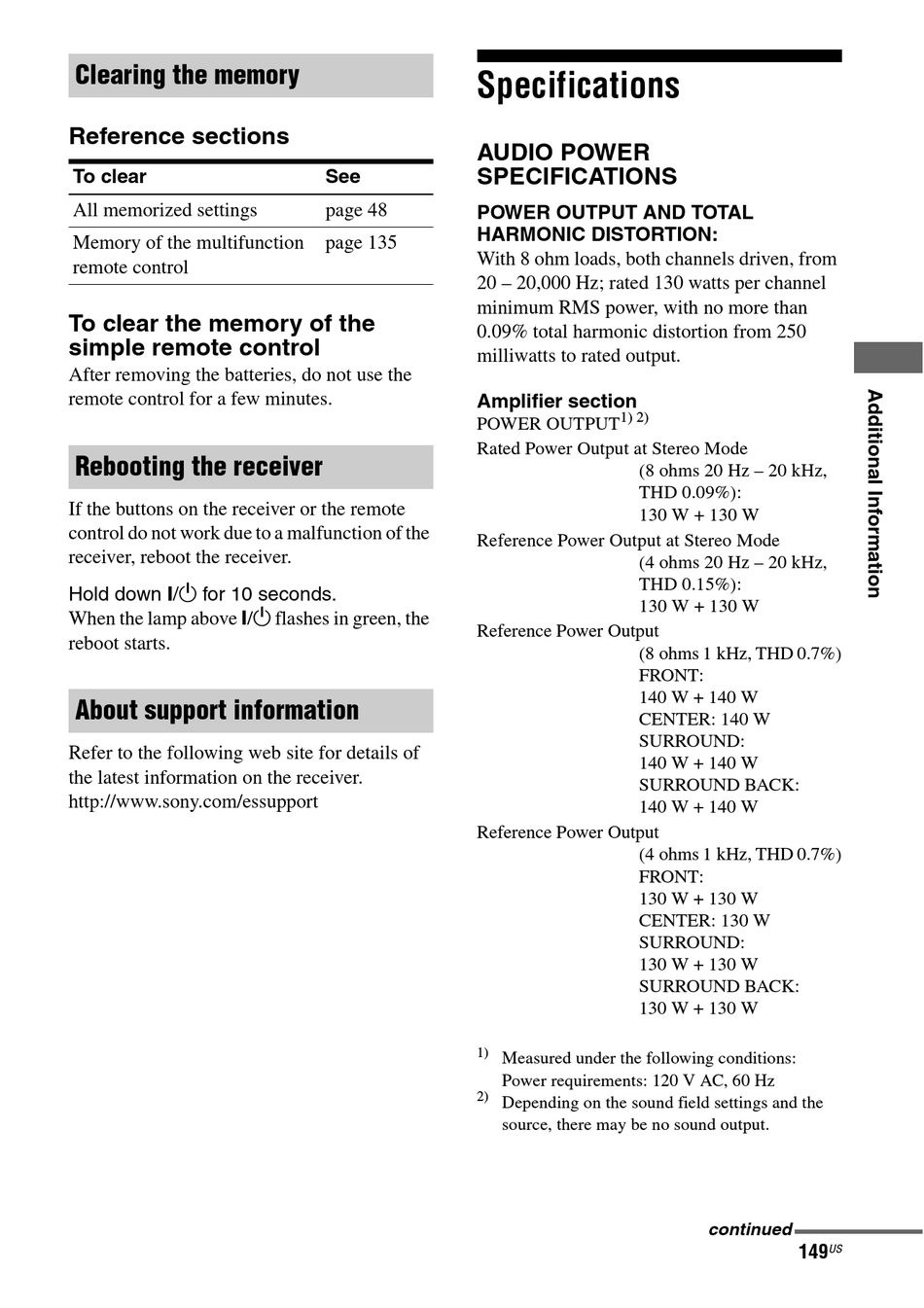

Specifications; Rebooting The Receiver - Sony STR-DA5700ES Operating Instructions Manual

Clearing the memory
Reference sections
To clear
All memorized settings
Memory of the multifunction
remote control
To clear the memory of the
simple remote control
After removing the batteries, do not use the
remote control for a few minutes.

Rebooting the receiver

If the buttons on the receiver or the remote
control do not work due to a malfunction of the
receiver, reboot the receiver.
Hold down ?/1 for 10 seconds.
When the lamp above ?/1 flashes in green, the
reboot starts.
About support information
Refer to the following web site for details of
the latest information on the receiver.
http://www.sony.com/essupport

Specifications

AUDIO POWER
SPECIFICATIONS
See
page 48
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
page 135
With 8 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 130 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
POWER OUTPUT
Rated Power Output at Stereo Mode
Reference Power Output at Stereo Mode
Reference Power Output
Reference Power Output
1)
2)
1) 2)
(8 ohms 20 Hz – 20 kHz,
THD 0.09%):
130 W + 130 W
(4 ohms 20 Hz – 20 kHz,
THD 0.15%):
130 W + 130 W
(8 ohms 1 kHz, THD 0.7%)
FRONT:
140 W + 140 W
CENTER: 140 W
SURROUND:
140 W + 140 W
SURROUND BACK:
140 W + 140 W
(4 ohms 1 kHz, THD 0.7%)
FRONT:
130 W + 130 W
CENTER: 130 W
SURROUND:
130 W + 130 W
SURROUND BACK:
130 W + 130 W
Measured under the following conditions:
Power requirements: 120 V AC, 60 Hz
Depending on the sound field settings and the
source, there may be no sound output.
continued
149 US
