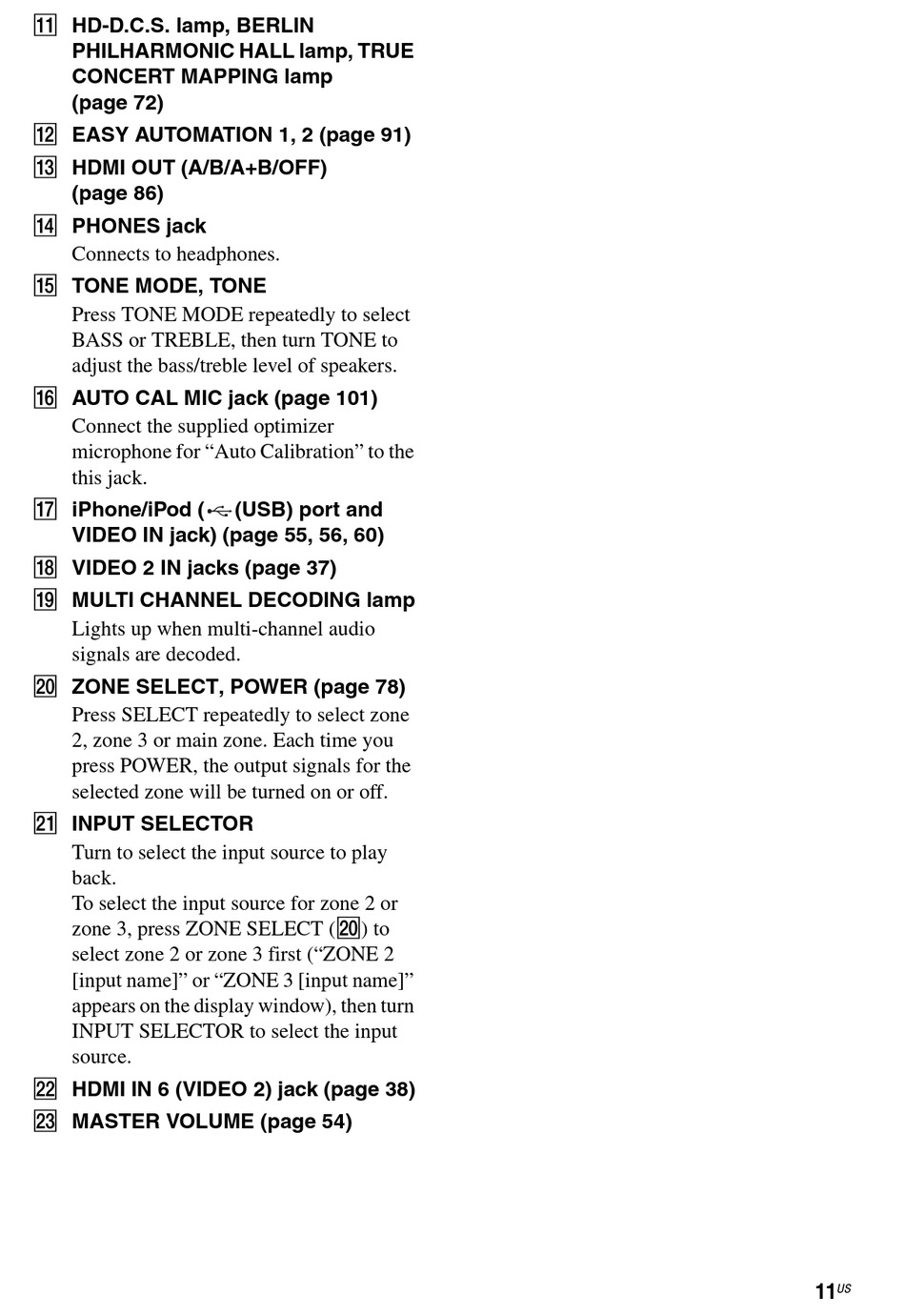

Sony STR-DA5700ES Operating Instructions Manual page 11

K HD-D.C.S. lamp, BERLIN
PHILHARMONIC HALL lamp, TRUE
CONCERT MAPPING lamp
(page 72)
L EASY AUTOMATION 1, 2 (page 91)
M HDMI OUT (A/B/A+B/OFF)
(page 86)
N PHONES jack
Connects to headphones.
O TONE MODE, TONE
Press TONE MODE repeatedly to select
BASS or TREBLE, then turn TONE to
adjust the bass/treble level of speakers.
P AUTO CAL MIC jack (page 101)
Connect the supplied optimizer
microphone for "Auto Calibration" to the
this jack.
Q iPhone/iPod (
VIDEO IN jack) (page 55, 56, 60)
R VIDEO 2 IN jacks (page 37)
S MULTI CHANNEL DECODING lamp
Lights up when multi-channel audio
signals are decoded.
T ZONE SELECT, POWER (page 78)
Press SELECT repeatedly to select zone
2, zone 3 or main zone. Each time you
press POWER, the output signals for the
selected zone will be turned on or off.
U INPUT SELECTOR
Turn to select the input source to play
back.
To select the input source for zone 2 or
zone 3, press ZONE SELECT (w;) to
select zone 2 or zone 3 first ("ZONE 2
[input name]" or "ZONE 3 [input name]"
appears on the display window), then turn
INPUT SELECTOR to select the input
source.
V HDMI IN 6 (VIDEO 2) jack (page 38)
W MASTER VOLUME (page 54)
(USB) port and
