SOLAR PANEL

SITUATION
Solar panel.
PROBLEM
A solar panel with 36 cells produces
maximum power at about 17 V. Many
regulator reduce the voltage by "burning
off" energy.

INSTALLATION ShEET 1

16 • EN
SOLUTION

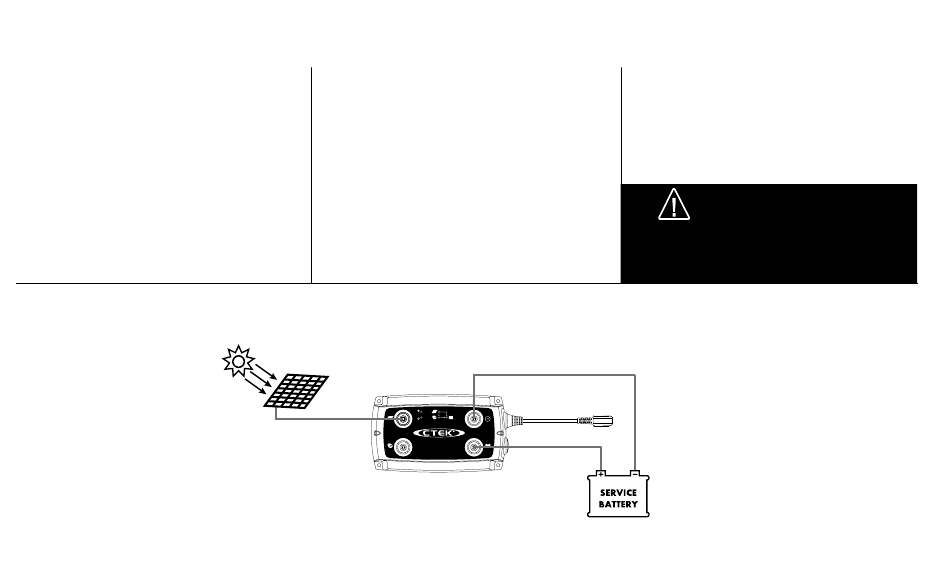

The D250S DUAL searches for the
Maximum Power Point and charges
the battery perfectly with very high
efficiency.
+IN
12V
D250S DUAL
+IN +OUT
TIP 1
Mount the temperature sensor on the
Service battery.
Boat: All installation should be done in
accordance with ISO10133.
WARNING!
•Max 22 V input
•Do not connect two solar
panels in series
