INSTALLATION OF UNIT

1. Attach the temperature sensor holder on a ﬂat surface on

one Service battery. Position it as close as possible to a

positive post.

2. Use the included drill template. Wiring is simplified if the

units are installed according to the drill template, but other

setups are possible.

3. Install the unit(s) on a surface where it can be properly fixed

and where the unit is not exposed to fuels, oils or splashes

of dirt.

4. Mount the unit with screws intended for the surface and

attach it with one screw in each of the four holes in the

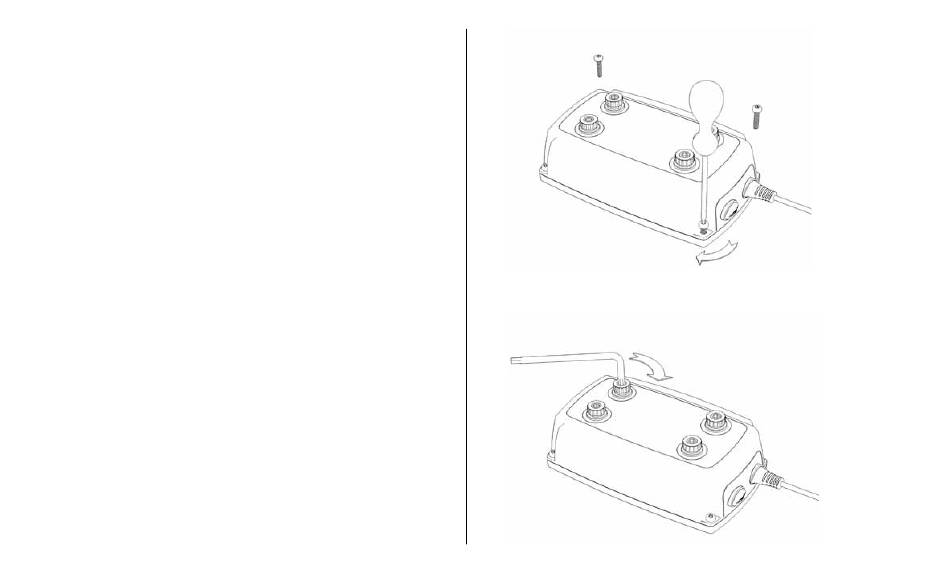

corners of the unit. See picture 1. Mount the unit with M4 or

ST4.2 screws. The required torque depends on the surface

for mounting. Fig. 1 shows a CTEK D250S. The same proce-

dure is used for all devices.

5. Attach the cables and mount the cable screws with a torque

of 7 Nm/62 Lb-In. Use tool – hand power without tools is

not enough.

14 • EN

Allen key

7Nm/62 Lb-In

Figure 1

2Nm/18 Lb-In

Figure 2
