CTEK MXS 5.0 CHECK Manual

COMBINED BATTERY CHARGER
AND BATTERY&ALTERNATOR CHECK

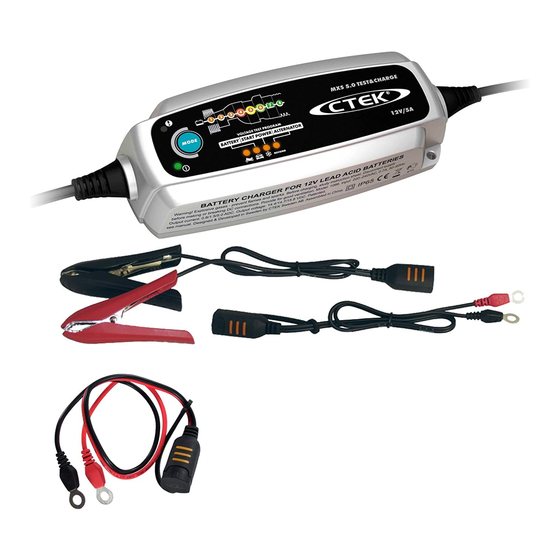

CTEK MXS 5.0 CHECK
CTEK MXS 5.0 CHECK is a unique combination of a battery and
alternator check instrument as well as a new generation battery
charger with exceptional features.
MXS 5.0 CHECK off ers; battery diagnosis, a special reconditioning
option, unique maintenance charging and a option for optimised
charging during cold winter days and charging of demanding AGM
batteries. MXS 5.0 CHECK can be used with both charge options at
the same time. MXS 5.0 CHECK is a fully automatic 8-step charger
that delivers selectable 0.8A or 5A to 12V batteries from 1,2-110Ah
and is suitable for maintenance charging up to 160Ah.
The check instrument is extremely easy to use and consist of three
voltage check programs: BATTERY, START POWER and ALTERNA-
TOR. MXS 5.0 CHECK three voltage check programs works both
with and without 230V supply. The charger is delivered with a
5-year warranty.
TECHNICAL DATA
CHARGING VOLTAGE
14.4/14.7/15.8 V
CHARGING CURRENT Max 5 A
8 step, fully automatic charging cycle,
TYPE OF CHARGER
3 voltage check programs
TYPE OF BATTERY 12 V lead-acid batteries
BATTERY CAPACITY 1.2–110 Ah, up to 160 Ah for maintenance
INSULATION IP65 (splash and dust proof)
AUTO
Fully automatic for optimal charging
For all lead-acid batteries
FULLY CHARGED BATTERY
Maintenance charging
For charging in cold conditions and AGM
batteries
Recondition of deeply discharged batteries
Check battery charge level.
Check battery start power
Check alternator performance
