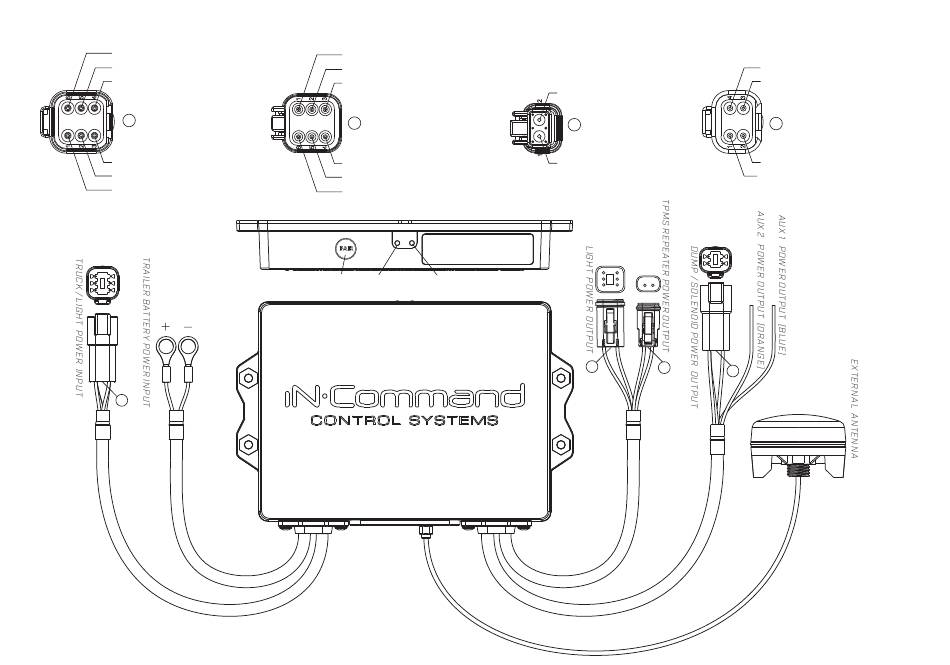

• Wiring

#6. TRUCK POWER - (WHITE)
#5 . DC 12V ( YELLOW L2)
#4. EMPTY
1
#3. TRUCK POWER+12V(RED )
#2. DC12V (GREEN L3)
#1. DC 12V (BROWN L1)
Insertion View
[RED) (WHITE)
1
#1 .RUNNING LIGHT OUT (BROWN L1)
#2 .RIGHT LIGHT OUT (GREEN L3)
#3 .EMPTY
2
#4 .EMPTY
#5 .LEFT LIGHT OUT (YELLOW L2)
#6 .EMPTY
PAIR BUTTON PAIR (BLUE) POWER (RED)
INDICATOR
INDICATOR
8
#2 .TPMS POWER + (RED)
3
#1 .TPMS POWER - (WHITE)
Insertion View
Insertion View
2
3
4
#4 .HYD UP OUT (GREEN)
#3 .SOLDENOID POWER OUT (WHITE )
4
#2 .EMPTY
#1 . HYD DOWN OUT (RED)
