ASA Electronics iN-Command JRVCS1 Getting Started

GETTING STARTED
The iN•Command® system is comprised of two parts,
the DC (Display Commander or touch pad) and the
BCM (Body Control Module or main control board).
To turn on the DC, hold the power button until the
screen flashes. When the DC is on, the EULA (End
User License Agreement) screen will display - scroll
to the bottom of the screen and select "Accept".
The DC should then connect to the BCM and "Connecting
to BCM" will appear momentarily. Next, the Passcode
screen will appear. Select "Change passcode" and enter
a four-digit code you will remember. This passcode will
allow the user access into the iN•Command® interface
to change and/or monitor multiple functions of the RV.
The DC should then connect to the BCM, and the HOME
screen will display.
iN•Command® is equipped with a Safety Lockout feature to ensure certain system
functions are unavailable during transit. When the Brake signal or the Tow signal is
activated, iN•Command® will lock down all motorized functions. The DC and mobile
devices will display "Travel Lock On" in red letters and affected buttons will display
"Disable". To turn the Travel Lock off, the "Unlock" button on the DC inside of the RV
must be pressed.
Get the app
Download the iN•Command® app
to turn your mobile device into the
definitive RV Controller.

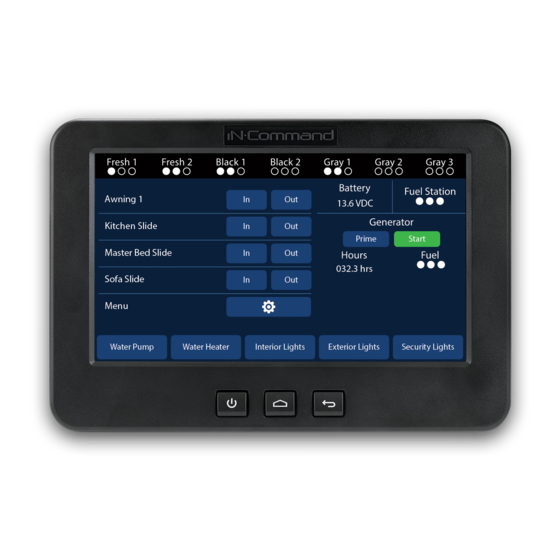

Awning 1
Kitchen Slide
Master Bed Slide
Sofa Slide
Menu
Water Pump
Continue
www.asaelectronics.com/incommand
Disable Disable
13.6 VDC
Disable Disable
Prime
Disable Disable
032.3 hrs
Disable Disable
Travel Lock On
Water Heater Interior Lights Exterior Lights
Start
UnLock
Security Lights
