- Page 1 ALL SPORT CG HD OPERATION MANUAL P1314 DD3199099 Rev 05 27 August 2021 201 Daktronics Drive Brookings, SD 57006-5128 www.daktronics.com/support 800.325.8766...
- Page 2 Daktronics trademarks are property of Daktronics, Inc. All other trademarks are property of their respective companies.
-
Page 3: Table Of Contents
Table of Contents Introduction ���������������������������������������������������������������������������������������������������������������������������1 Important Safety Instructions .......................1 Resources ..............................1 Control Consoles ..........................1 System Overview ..........................2 System Requirements �����������������������������������������������������������������������������������������������������������������������2 Setup ��������������������������������������������������������������������������������������������������������������������������������������3 Power Connection ..........................3 Video Camera Connection ........................4 Recording Device Connection......................4 All Sport Controller Connection ......................4 Wire Connection �������������������������������������������������������������������������������������������������������������������������������4 Wireless Radio Connection �������������������������������������������������������������������������������������������������������������4 Radio Connection Status ......................5 No All Sport Connection ������������������������������������������������������������������������������������������������������������������5... - Page 4 Match Score ..........................15 Period ............................15 Troubleshooting ������������������������������������������������������������������������������������������������������������������16 Troubleshooting Table ........................16 Replacement Parts ..........................16 Daktronics Exchange and Repair & Return Programs ����������������������������������������������������17 Exchange Program ..........................17 Repair & Return Program ........................18 Daktronics Warranty & Limitation of Liability ...................18 A Reference Drawings �����������������������������������������������������������������������������������������������������������19 Uploading Bitmap Images to the All Sport CG ����������������������������������������������������������������25...
-
Page 5: Introduction
Reference Drawing: System Riser Diagram ..................DWG-1007804 Daktronics identifies manuals by the DD or ED number located on the cover page. Control Consoles The All Sport CG HD may be used with an All Sport controller. -
Page 6: System Overview
System Overview The All Sport CG HD is an interface that receives footage from a High Definition video camera and overlays game-in-progress (GIP) data from an All Sport controller onto the video footage. The result is game video with scoring and timing information always visible, whether the footage is sent to a recording device, broadcasted over closed circuit TV, or streamed live over the Internet. -
Page 7: Setup
POWER jack on top of the All Sport CG. Plugging in and disconnecting the power adapter will power the unit on and off. When first powered on, the unit performs the standard boot-up sequence shown below: DAKTRONICS CPLD: ED15105... -
Page 8: Video Camera Connection

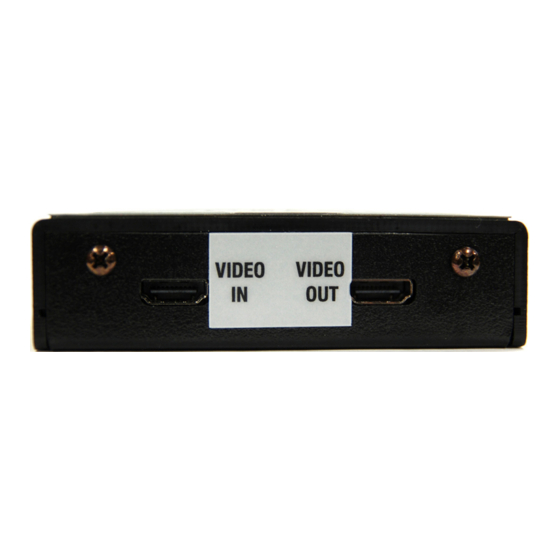

Note: If the video camera only outputs an SDI signal, an SDI-to-HDMI converter is required between the video camera and the All Sport CG HDMI input (Daktronics part # A-3018). Recording Device Connection The connection between the recording device and All Sport CG is always via wire. An HDMI cable sends the combined data via a connection from the VIDEO OUT jack on the bottom of the All Sport CG to the VIDEO IN jack on the recording device. -
Page 9: Radio Connection Status
Schematic; Truck Dock Data Broadcast 1 RU Shelf........DWG-4252992 If the facility requires more than one TV feed output, the Data Broadcast Unit (Daktronics part # 0A-1196-0314/9) may be used. This 2RU rack-mount unit (Figure 4) provides up to 8 serial data outputs to third-party character generators. -
Page 10: Operation
Operation There are two primary modes in which the All Sport CG can operate: Automatic Mode: Game data is received from the All Sport controller using a wire • connection or wireless radio signal. Refer to All Sport Controller Connection (p�4). Manual Mode: Game data is generated using the keypad, without using an All Sport •... -
Page 11: Select Sport
• To avoid waiting for the character to quit flashing to enter another from the same key, press <↓> to immediately move to the next location. To edit a specific character, use <↑> and <↓> to move back and forth. •... -
Page 12: Automatic Mode
Automatic Mode Operation of the All Sport CG is simple when connected to an All Sport controller. The All Sport CG receives game data via wire or wireless radio from the control console and overlays it onto the video feed in real time. The All Sport CG is automatically set to the same sport as the control console and all information is received directly from it. -
Page 13: Baseball
Baseball The following buttons and functions are unique to the baseball sport mode. *G= 0 H= 0 I= 1 Baseball Scoring Output: Ball Press <BALL +1/-1> to increment the ball number. • Press <CLEAR/ALT> followed by <BALL +1/-1> to decrement the ball number. •... -
Page 14: At Bat
At Bat Press <AT BAT> to toggle between GUEST AT BAT and HOME AT BAT. The current team • up to bat will have an asterisk (*). HOME AT BAT G= 0 *H= 0 I= 1 Batter Number Press <BATTER NUMBER> to edit the current batter. Use the •... -
Page 15: Period
Period Press <PERIOD +1/-1> to increment the period number. • Press <CLEAR/ALT> followed by <PERIOD +1/-1> to decrement the period number. • Press <ENTER*/EDIT> followed by <PERIOD +1/-1> to edit the period number. Use the • keypad to type in the value, and then press <ENTER*/EDIT> again to save. Note: The shot clock only appears in AUTOMATIC MODE. -
Page 16: Hockey/Lacrosse/Field Hockey
Hockey/Lacrosse/Field Hockey The following buttons and functions are unique to the TIME 15:00 hockey and lacrosse sport modes. This mode may also be H= 0 G= 0 used for scoring field hockey. Hockey/Lacrosse Scoring Output: Shots On Goal Press either home or guest <SHOTS ON GOAL +1/-1> to increment the number of shots •... -
Page 17: Tennis
Tennis The following buttons and functions are unique to the tennis TOP= 0 0 sport mode. BOT= 0 0 Tennis Scoring Output: Serve TOP SERVE Press <SERVE> in the appropriate TOP or BOTTOM key • group to turn the serve on or off. Point Press <POINT/DEC>... -
Page 18: Deuce
Deuce Press <DUECE> to quickly set both top and bottom point values to 40. • Press <SET +1/-1> to increment the set number. • Press <CLEAR/ALT> followed by <SET +1/-1> to decrement the set number. • Press <ENTER*/EDIT> followed by <SET +1/-1> to edit the set number. Use the keypad •... -
Page 19: Wrestling
Wrestling The following buttons and functions are unique to the TIME 2:00 wrestling sport mode. H= 0 G= 0 Wrestling Scoring Output: Team Score Press <HOME TEAM +1/-1> or <GUEST TEAM +1/-1> to increment the team score for • the respective team. Press <CLEAR/ALT>... -
Page 20: Troubleshooting
Troubleshooting The Daktronics All Sport CG connects a control console and video equipment with a device used to record and display the information� To do this properly, the devices must be connected correctly� A combination TV/recording device allows the operator to view the final output as it is recorded�... -
Page 21: Daktronics Exchange And Repair & Return Programs
Fill out and attach the enclosed UPS shipping document. c� Ship the part to Daktronics. 3� The defective or unused parts must be returned to Daktronics within 5 weeks of initial order shipment� If any part is not returned within five (5) weeks, a non-refundable invoice will be presented to the customer for the costs of replenishing the exchange parts inventory with a new part. -
Page 22: Repair & Return Program
Repair & Return Program For items not subject to exchange, Daktronics offers a Repair & Return Program. To send a part for repair, follow these steps: 1� Call Daktronics Customer Service� United States & Canada: 1-800-DAK-TRON (325-8766) Outside the U.S. & Canada: +1-605-275-1040 2�... -
Page 23: A Reference Drawings
Reference Drawings Refer to Resources (p�1) for information regarding how to read the drawing number. Any contract-specific drawings take precedence over the general drawings. Reference Drawings: Quick Install Guide: All Sport CG-HD .............. DWG-3192029 Truck Dock Data Broadcast Schematic ............DWG-3642883 Schematic;... - Page 24 This page intentionally left blank.
- Page 25 DATA CONVERTER [FIELD CUR. LOOP ANY MEANS WITHOUT THE EXPRESS WRITTEN CONSENT OF INSTALLED]" ADDED 8 PORT CONFIGURATION DATE: DAKTRONICS, INC. OR ITS WHOLLY OWNED SUBSIDIARIES. 03 OCT 17 COPYRIGHT 2016 DAKTRONICS, INC. (USA) POWER TB-31 REMOVE 0A-1611-0508 ADD A-3430138...
- Page 26 THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS DRAWING ARE CONFIDENTIAL AND PROPRIETARY. DO NOT REPRODUCE BY ANY MEANS WITHOUT THE EXPRESS WRITTEN CONSENT OF DAKTRONICS, INC. OR ITS WHOLLY OWNED SUBSIDIARIES. HARNESS B COPYRIGHT 2017 DAKTRONICS, INC. (USA) ALL SPORT 5000 CONSOLE...
- Page 27 INPUT ARE CONFIDENTIAL AND PROPRIETARY. DO NOT REPRODUCE BY OUTPUTS ANY MEANS WITHOUT THE EXPRESS WRITTEN CONSENT OF DAKTRONICS, INC. OR ITS WHOLLY OWNED SUBSIDIARIES. COPYRIGHT 2019 DAKTRONICS, INC. (USA) ALL SPORT 5000 CONSOLE PROJECT: SCHEMATIC; TRUCK DOCK DATA BROADCAST 1 RU SHELF...
- Page 28 This page intentionally left blank.
-
Page 29: B Uploading Bitmap Images To The All Sport
Uploading Bitmap Images to the All Sport CG Requirements • All Sport CG and power adapter • Computer loaded with HyperTerminal, Tera Term, or similar application • One open serial (COM) port (or USB-to- Serial adaptor and one open USB port) •... - Page 30 7� Type in “#CB3” and press [Enter] on the keyboard to set the CG to 57600 baud rate. The CG will respond with “57600” and “AllSportCG>” underneath. 8� Go back to Setup > Serial Port Setup and select 57600 for the Baud rate. 9�...
-
Page 31: C Daktronics Warranty & Limitation Of Liability
Daktronics Warranty & Limitation of Liability This section includes the Daktronics Warranty & Limitation of Liability statement (SL-02374)� Daktronics Warranty & Limitation of Liability... - Page 32 This page intentionally left blank.
- Page 33 Warranty Coverage. Daktronics warrants to the original end user (the “End User”, which may also be the Purchaser) that the Equipment will be free from Defects (as defined below) in materials and workmanship for a period of one (1) year (the “Warranty Period”). The Warranty Period shall commence on the earlier of: (i) four weeks from the date that the Equipment leaves Daktronics’...
- Page 34 In no event shall Daktronics be liable for loss, damage, or injury of any kind or nature arising out of or in connection with this Warranty in excess of the Purchase Price of the Equipment. The End User’s remedy in any dispute under this Warranty shall be ultimately limited to the Purchase Price of the Equipment to the extent the Purchase Price has been paid.
- Page 35 For End User’s protection, in addition to that afforded by the warranties set forth herein, End User may purchase extended warranty services to cover the Equipment. The Extended Service Agreement, available from Daktronics, provides for electronic parts repair and/or on-site labor for an extended period from the date of expiration of this warranty. Alternatively, an Extended Service Agreement may be purchased in conjunction with this Warranty for extended additional services.
- Page 36 This page intentionally left blank.
