PowerCage FOX SR HDMI • Setup Guide
This guide provides quick start instructions for an experienced installer to set up and operate the

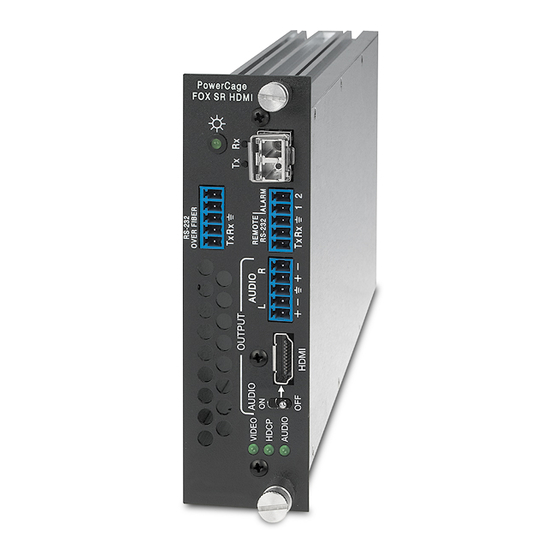

Extron PowerCage FOX SR HDMI scaling fiber optic receiver.
CLASS 1 LASER PRODUCT, see the PowerCage FOX SR HDMI User Guide at
www.extron.com.
CAUTION
:
These units output continuous invisible light, which may be harmful
•
to the eyes; use with caution. For additional safety, plug the attached
dust caps into the optical transceivers when the fiber optic cable is
unplugged.
Ces produits émettent une lumière invisible continue, qui peut être
•
dangereuse pour les yeux ; à utiliser avec précaution. Pour une
sécurité renforcée, associez les bouchons anti-poussière à l'ensemble
émetteur/récepteur optique lorsque le câble fibre optique est
débranché.

Installation

Step 1 — Mounting
Install the receiver into a PowerCage enclosure as required.
NOTES: • PowerCage boards are hot-swappable.
Ensure the boards are flush with the rear of the enclosure and the screws are tightened securely before applying power.
•
Step 2 — Throughput Connections

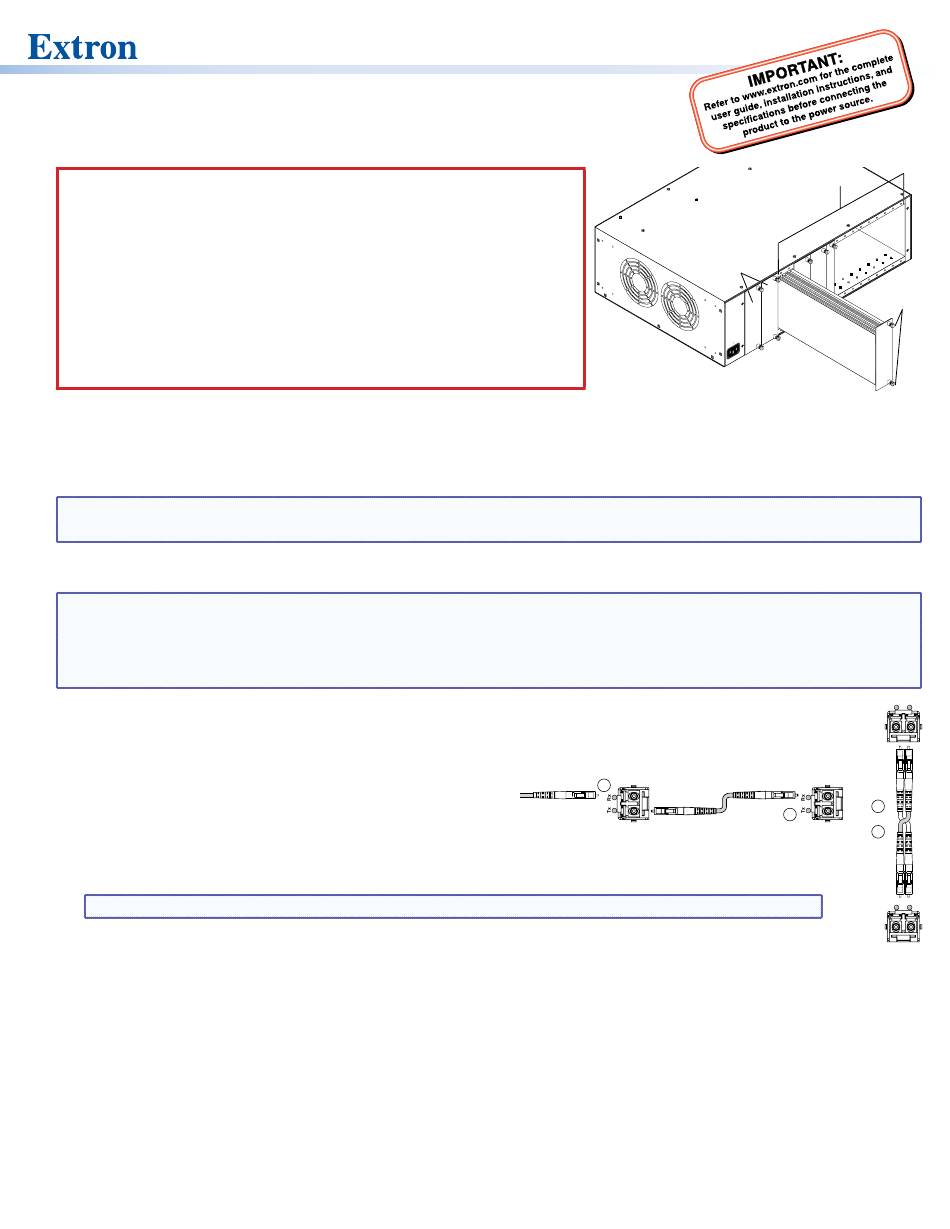

NOTE: See the two fiber cable connection drawings below. You can connect the transmitter and one or more receivers in one of three
ways:
One way (transmitter to receiver) only, perform step 2a.
•
• Two way (transmitter to receiver and return), perform steps 2a and 2b.
• One way (transmitter to receiver) with daisy chain (receiver to receiver), perform steps 2a and 2c.
a. Connect the fiber between the Tx port on the transmitter and the Rx port on the receiver.
b. If you want the receiver to send return serial data (such as responses from a controlled device) to the transmitter,
connect a cable between the Tx port on the receiver and Rx port on the transmitter.
c. If you want a receiver to daisy-chain the optical signal to another
receiver (up to 10 receivers in a daisy chain):
• Connect the receiver Tx fiber cable to Rx on another receiver.
• Set each receiver to daisy chain mode. See
Daisy Chain Modes," on the next page.
Tx Link and Rx Link LEDs — When lit, the link is active (light is
output [Tx LED] or received [Rx LED]).
NOTE: The Link LEDs indicate transmission of light only, not whether there is data encoded in the optical link.
From Transmitter
"Return Link and
or Daisy-Chained
Receiver
16 available single board slots or
8 double board slots
Power
Supply
Hz
50 /60
40 V X.
10 0-2 5A MA
2a
Receiver
Screws
Tx Rx
Transmitter
2a
2c
and
Receiver
2b
Receiver
Tx Rx
