U-Line H-7355 Quick Start Manual

π
H-7355
ROLLING
TOOL SEAT
TOOLS NEEDED
Phillips
Screwdriver
1
2
3
5
6
7
WARNING! Read all safety instructions before
using this product.
• Do not exceed rated capacity of 250 lbs.
(includes seated person and items which may
be placed on base plate).
• Examine product before using. If casters, cylinder
or seat appear damaged, discontinue use.
• Use product only on surfaces that are smooth,
level and seamless.
1. Use M6 x 40 bolts to mount drawer assembly and
upper base frame to the seat cushion. Do not
tighten the bolts until final step, in case of necessary
adjustment.
2. Use M5 x 10 bolts to attach lower base frame's
connection pipe to the upper base frame.
PAGE 1 OF 3
1-800-295-5510
uline.com
5 mm
Hex Key

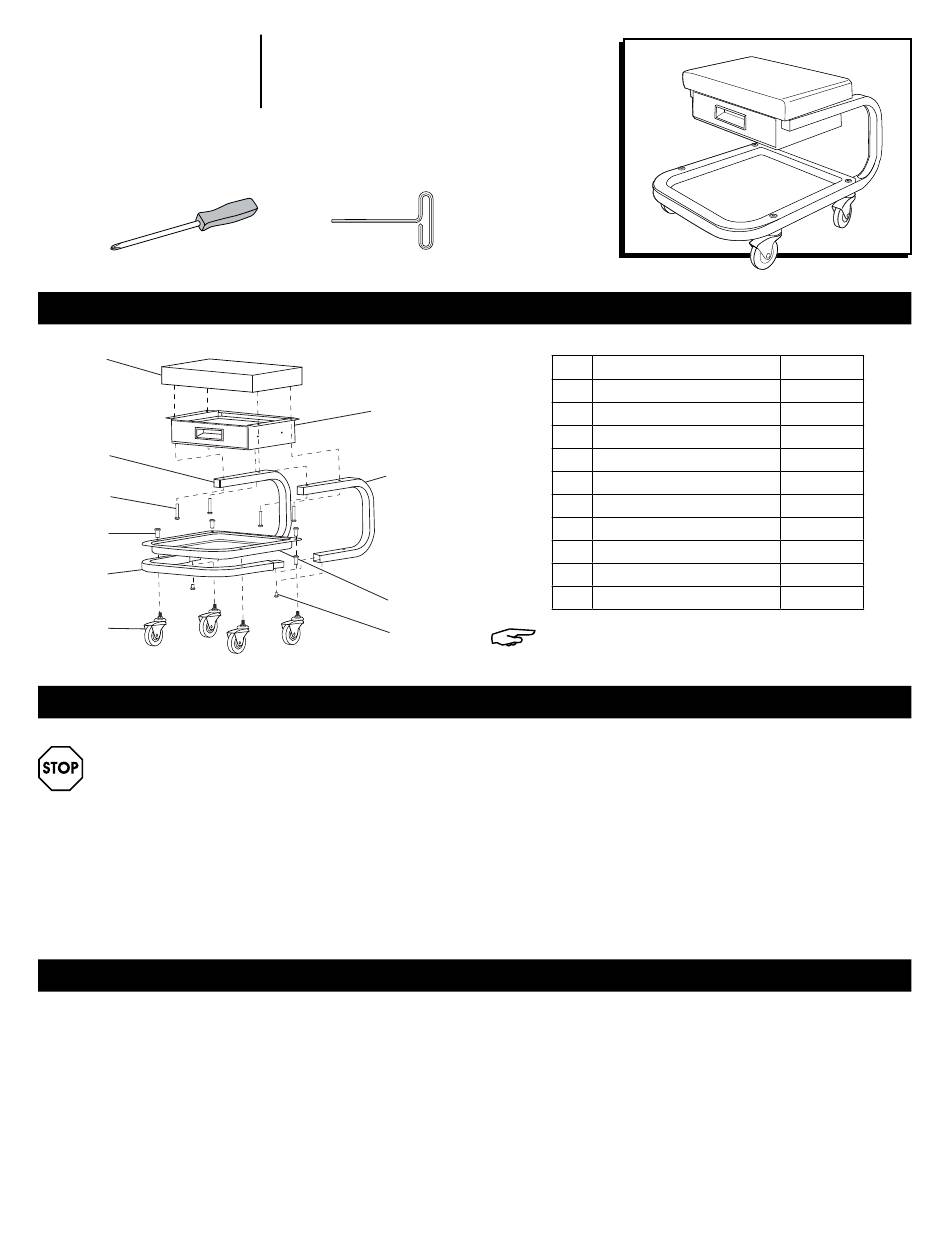

PARTS
10
9
8
4
SAFETY
ASSEMBLY
REF. DESCRIPTION
1 Seat Cushion
2 Plastic Insert
3 Bolt (M6 x 40)
4 Bolt (M5 x 10)
5 Nut (M8 x 26)
6 Lower Base Frame
7 Caster
8 Plastic Tray
9 Upper Base Frame
10 Drawer Assembly
NOTE: Items shown for assembly use only;
replacement parts are unavailable.
• Sit down gently. Avoid shock loads to product
caused by jumping or falling onto seat.
• Various components on this chair may present
a pinch hazard.
• Do not stand on seat.
• Avoid sitting on edge of seat.
3. Use M8 x 26 bolts to attach plastic tray and casters
to the lower base frame and upper base frame.
4. Tighten all bolts and nuts.
Para Español, vea página 2.
Pour le français, consulter la page 3.
QTY.
1
1
4
2
4
1
4
1
2
1
0421 IH-7355
