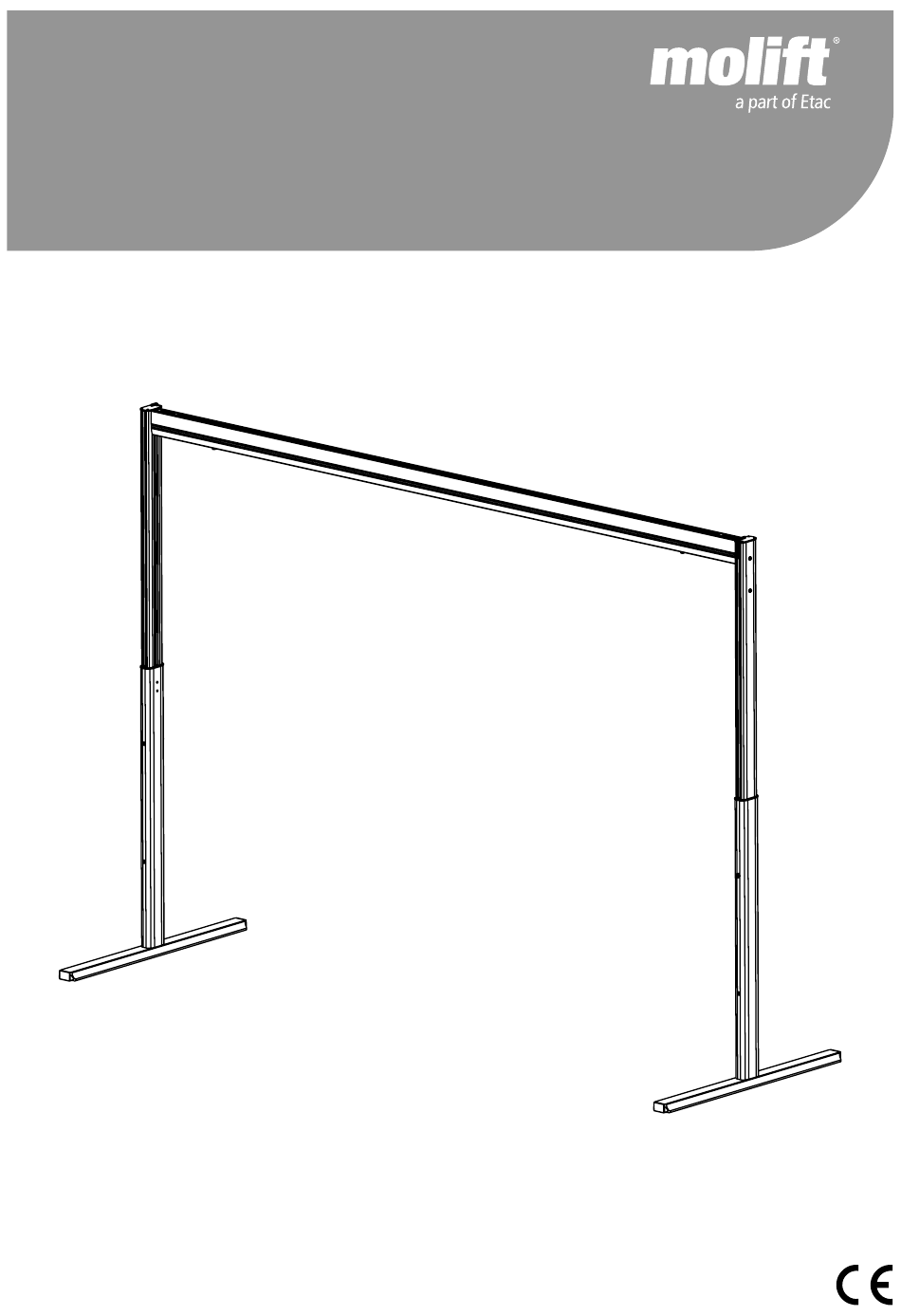

- Page 1 MRS Duo EN - User manual BM20001 Rev. B 2014-11-13...
-
Page 2: Table Of Contents
Molift MRS Duo / www.etac.com English Manual Content Important MRS Duo ..........2 This User Manual contains important safety MRS components ........2 instructions and information regarding the use of About MRS Duo ........2 the MRS Duo and accessories. General .............3 Declaration of conformity ......3 In this manual the user is the person being lifted. -
Page 3: Mrs Duo

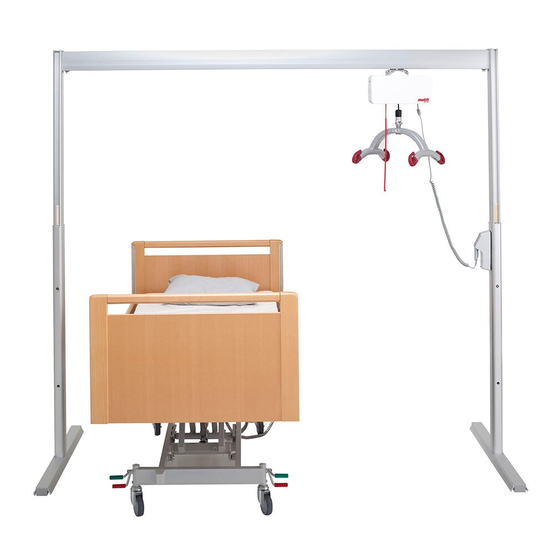

Molift MRS Duo / www.etac.com MRS Duo MRS Duo components: Boom End stop Inner post Height label Product label Control label Outer Quick release post bolt Transport hole Foot Adjustable screws About MRS Duo MRS Duo is a mobile 2 post gantry intended for meters and the lifting capacity is 300 kg (661 Molift Air and Molift Nomad lifters. -
Page 4: General
We recommend only using Molift components and spare parts. Declaration of conformity is not valid and Etac is not responsible for warranty if any modifications are made to the product. Etac shall not be liable for faults or accidents that can occur when using components made by other manufacturers. -
Page 5: Technical Data
Molift MRS Duo / www.etac.com Technical Data Safe Working Load (SWL) 300 kg (661 lbs) Weight of unit Post (complete): 14,8 kg/30,9 lbs Boom Kg/m: 4,2 kg/m/8,8 lbs/m Foot: 3,8 kg/6,6 lbs Post (without foot): 11 kg/24,3 lbs Total weight (2 posts and boom):... -
Page 6: Assembly
Molift MRS Duo / www.etac.com Assembly Supplied parts Mounting boom to post 1. Slide washer and post in to boom. 2. Insert bolts trough holes and washer in boom. 3. Use allen key, (located in top of post) to screw in bolts. -
Page 7: Adjusting Post Heights
Molift MRS Duo / www.etac.com Assembly Adjusting post heights Mounting charger to post 1. Remove plugs from holes on the post. 1. Lift the inner post and pull out quick release 2. Use the small allen key (located in top of post) bolt. -
Page 8: How To Use Mrs Duo
Molift MRS Duo / www.etac.com How to use MRS Duo Lifting user Never transport MRS Duo without quick release bolt inserted. Post may fall apart. Transport and storage MRS Duo can be stored and transported under temperatures between -25 - 70 °C and Relative 1. -
Page 9: Accessories
Molift MRS Duo / www.etac.com Accessories Battery charger Molift Nomad Molift Air or Molift Nomad ceiling hoist is charged Molift Nomad portable hoist is suitable for use through the hand control. The hand control with MRS Duo. charger can be mounted on the MRS Duo. -
Page 10: Maintenance
Report for MRS Duo. This can be found on www. inspection is performed and a label (with 6-digit etac.com. ID from Etac or distributor) showing who has per- formed the periodic control. The control label can In the event of danger to safety,... -
Page 11: Troubleshooting
Molift MRS Duo / www.etac.com Troubleshooting Symptom Possible Cause/Action Wobbly between foot and post. Check bolts in foot. Make sure bolts is properly fastened. Wobbly between inner and outer post. Check slider in outer post for wear. Change sliders. Wobbly between boom and post. - Page 12 Etac AS Etac Supply Gjøvik Hadelandsveien 2, 2816 Gjøvik, Norway Tel +47 4000 1004 molift@etac.com www.etac.com...
