- Page 1 EBA 20 C Operating Instructions 2012 Andreas Hettich GmbH & Co. KG AB2002-01C_EN...

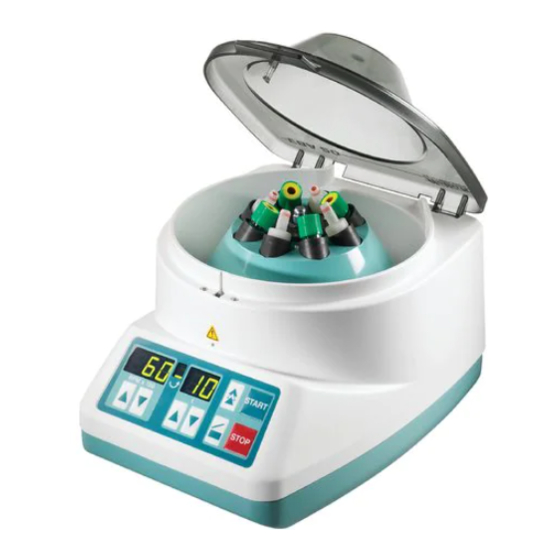

- Page 2 START RPM x 100 STOP Fig. 1 EBA 20 C 2/16...
- Page 3 Standards and regulations which apply to this device The device is a high-end technical product. It is subject to extensive testing and certification procedures according to the following standards and regulations in their respectively valid version: Electrical and mechanical safety for design and final testing: Standard series: IEC 61010 (conform to standards of DIN EN 61010) •...
- Page 4 Phone +49 (0)7461 / 705-0 +49 (0)7461 / 705-125 info@hettichlab.com, service@hettichlab.com www.hettichlab.com © 2012 by Andreas Hettich GmbH & Co. KG All rights reserved. No part of this publication may be reproduced without the written prior permission of the copyright owner. Modifications reserved!
-
Page 5: Table Of Contents
Contents Use according to specification ..........................6 Remaining risks ..............................6 Technical specifications ............................6 Notes on safety...............................7 Symbol meanings ..............................8 Delivery checklist ..............................8 Initial operation ...............................9 Opening and closing the lid.............................9 Opening the lid ..............................9 Closing the lid ..............................9 Loading the rotor..............................9 Control and display elements ..........................10 10.1 Symbols on the control panel........................10... -
Page 6: Use According To Specification
The centrifuge is only meant for this purpose. Another use or one which goes beyond this, is considered to be non-intended. The company Andreas Hettich GmbH & Co. KG is not liable for damage resulting from this. -
Page 7: Notes On Safety
• Repairs must only be carried out by personnel authorised to do so by the manufacturer. • Only original spare parts and original accessories licensed by the Andreas Hettich GmbH & Co. KG company are allowed to be utilised. 7/16... -
Page 8: Symbol Meanings
Notes on moving the equipment safely Operating instructions Counter-weight (is required for centrifugation of an individual cell separation container) Carbon brushes Carbon brush change must be carried out by authorised and qualified personnel. The model EBA 20 C is supplied complete with angle-rotor (2-times). 8/16... -
Page 9: Initial Operation
Initial operation • Position the centrifuge in a stable and level manner in a suitable place. During set-up, the required safety margin of 300 mm around the centrifuge is to be kept according to EN / IEC 61010-2-020. When the centrifuge is running, according to EN / IEC 61010-2-020, no persons, dangerous substances or objects may be within the safety margin of 300 mm around the centrifuge. -
Page 10: Control And Display Elements
Control and display elements See figure on page 2. Fig. 1: Display and control panel 10.1 Symbols on the control panel Rotation indicator. The rotation indicator lights up and rotates anticlockwise while the rotor is turning. When the rotor is stationary, the status of the lid is displayed by symbols in the rotation indicator: Symbol : Lid open Symbol... -
Page 11: Relative Centrifugal Force (Rcf)
Relative centrifugal force (RCF) The relative centrifugal force (RCF) is given as a multiple of the acceleration of gravity (g). It is a unit-free value and serves to compare the separation and sedimentation performance. These values are calculated using the formula below: ... -
Page 12: Maintenance And Servicing
Maintenance and servicing The device can be contaminated. Pull the mains plug before cleaning. Before any other cleaning or decontamination process other than that recommended by the manufacturer is applied, the user has to check with the manufacturer that the planned process does not damage the device. •... -
Page 13: Rotor And Accessories
14.2 Rotor and accessories For safety reasons, the rotor may not be dismantled. • To avoid corrosion and changes to the materials, the rotor and accessories have to be cleaned regularly with soap or a mild cleaning agent and a moist cloth. Cleaning is recommended at least once a week. Contaminants must be removed immediately. -
Page 14: Faults
Faults If the fault cannot be eliminated with the help of the fault table, please inform Customer Service. Please specify the type of centrifuge and the serial number. Both numbers can be found on the name plate of the centrifuge. Perform a MAINS RESET: −... -
Page 15: Change Mains Input Fuses
Before returning the device, a transport securing device has to be installed. If the device or its accessories are returned to Andreas Hettich GmbH & Co. KG, in order to provide protection for people, the environment and materials, it has to be decontaminated and cleaned before being shipped. -
Page 16: Anhang / Appendix
Anhang / Appendix 19.1 Rotor und Zubehör / Rotor and accessories E1824 E1823 E1822 E3435 E3436 Angle rotor 2-times VitaPrep Plasma CellPaker Separator 30° Capacity Dimensions ∅ x L Number p. rotor Speed 4000 4000 1574 1574 Radius (97%) Sample temp. rise E3434 E3435 E3436...
