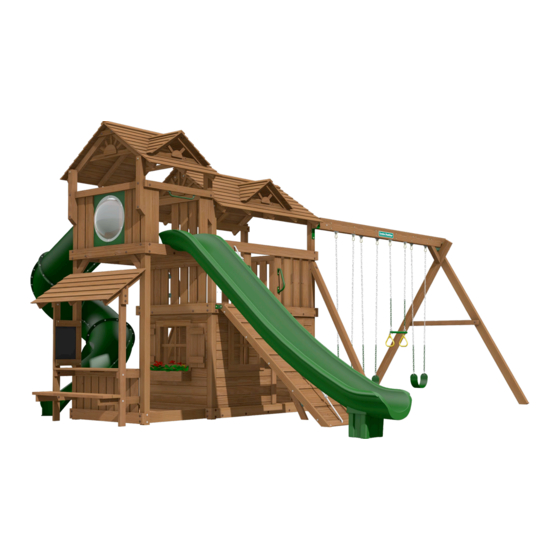

Creative Playthings Lexington Premium Pack 18 Quick Start Manual

CHILDHOOD STARTS HERE
Cartons for this Play Set:
1 63007-421 Lexington Gym 1 (Hardware)
1 63007-422 Lexington Gym 2
1 63007-423 Lexington Gym 3
1 63007-445 Lexington Roof (Hdwre & Instr)
1 SH946-102 Access Ladder, 5ft
1 AG942-400 Access Ladder Handles (Hdwre & Instr)
1 63058-202 4 Position Swing Beam
1 63060-222 9ft Swing Beam Legs (Hdwre & Instr)
1 50546-777 3 Swings, 1 Trapeze
1 SM964-402 Gable Fans (Hdwre & Instr)
2 SM963-402 Dormer (Hdwre & Instr)
1 SH922-800Q Ramp (Hdwre & Instr)
1 AH201-102Q Rock Climbing Wall (Hdwre & Instr)
1 63081-102 Ice Cream Stand (Hdwre & Instr)
1 SC910-800Q Lexington Play Floor (Hdwre & Instr)
63008-221 Skybox 1 (Hdwre & Instr)
1 63008-222 Skybox 2
1 SJ926-810 Skybox Wood Roof (Hdwre & Instr)
1 SC904-800Q Skybox Play Floor (Hdwre & Instr)
1 15140-400 14ft Swoosh Slide
1 50398-700 Swoosh Skybox Kit (Hdwre & Instr)
1 8400-202 Spiral Slide, Green (Hardware)
1 63033-102 Spiral Mount (Hdwre & Instr)
2 40456-402 End Panel
1 40459-402 Double Window Panel
1 40460-402 Door & Window Panel (Hardware)
1 63073-101 Clubhouse Window Pk (Hdwre & Instr)
1 AP970-104 Bubble Panel (Hdwre & Instr)
1 AG943-400 Slide Handle (Hdwre & Instr)
© Copyright 2018, Creative Playthings
Lexington Premium Pack 18
Dormers
The components of this gym can be combined with others to
create different play sets. This is the best order of assembly
Read this sheet and all instructions included with the
See the Instructions and Owner's Manual included in carton
63007-445 for important safety information.
• Start by assembling the Lexington tower. Instructions and hard-
ware are in the cartons noted at left. The gym is rotated 90° from
the position shown in the instructions.
• Wait to install the Access Ladder, Slide, and
Wall Slats until after the rest of the play set is
complete.
• Lex step 2. Omit the sandbox end from the end
of the gym adjacent to the Skybox. It will be
altered to fit the Skybox and play floors.
• Lex step 7. Do not install the safety rail.
• Lex step 8. Do not install the angle braces.
• Lex step 14. Do not install the end wall support
on the Skybox end of the tower.
• Lex step 15. The swing mount isn't needed.

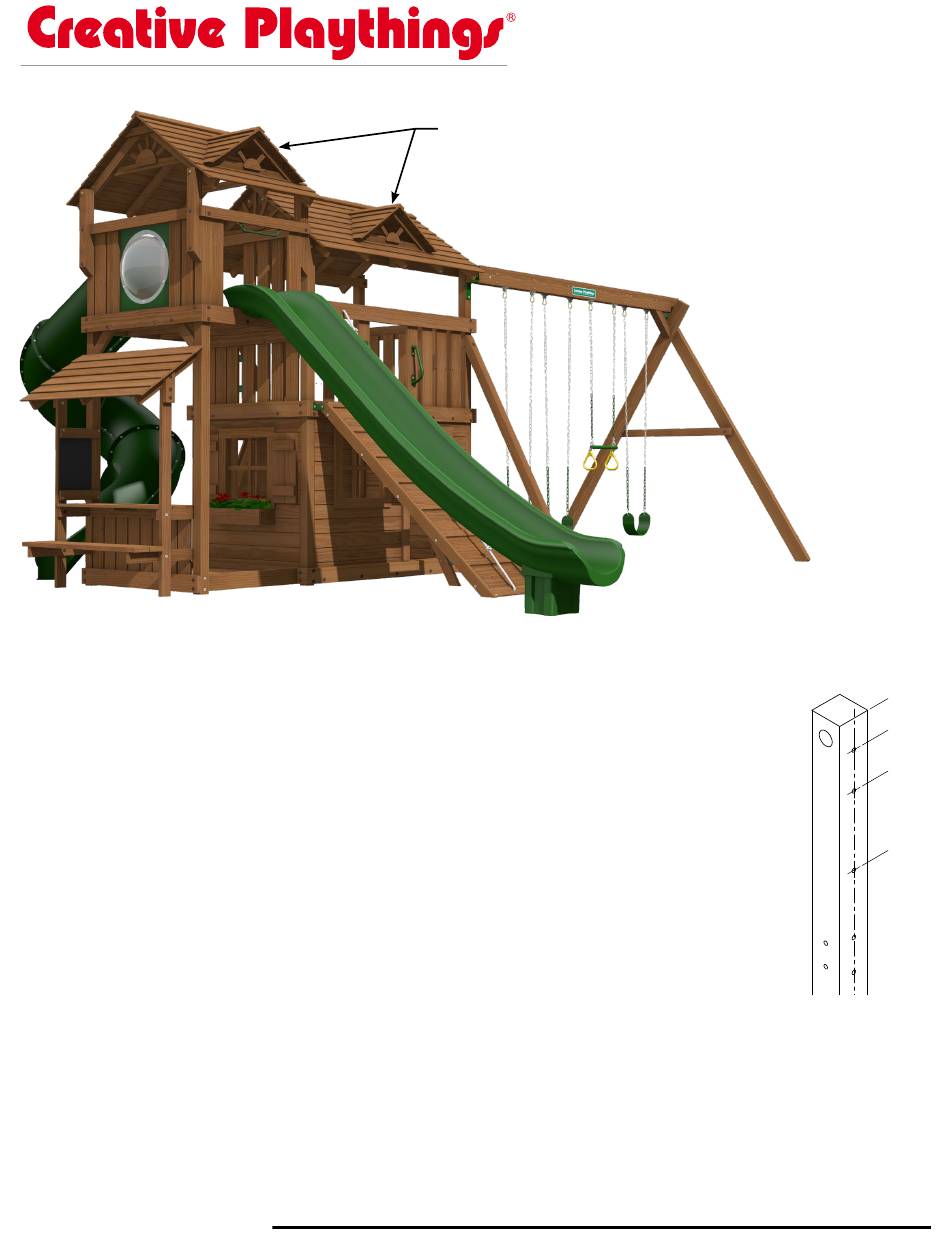

• Lex step 25. Before installing the roof, find the
post where the swing beam will mount. Drill
7/16" diameter holes through the post at 3",
7-1/4" and 15-1/2" below the top of the post as
shown at right.The beam will be mounted to the front of the post
using these holes. Insert one 5/16" weld nut into the top hole on
the inside face of the post. Be sure the threads on the weld nut are
clear, it will be captured by the roof support. Install the roof.
• Mount the Swing Beam using instructions and hardware included
in 63060-222. Mount the beam to the previously drilled holes at
right rather than the way shown in the instructions. You may need
to temporarily disconnect the roof from the post to put the beam in
place.
LEXI9WPP18
to create this specific set.
different parts before assembly.
Dimensions of assembled package:
24' 4" wide x 20' 7" deep x 12' 9" tall
LEXINGTON PREMIUM PACK 18
LEXI9WPP18-100 Rev C (05-20)
0 "
3 "
/ 4 "
7 1
"
1 / 2
1 5
