KBL megaSun pureENERGY 5.0 Operating Instructions Manual

Hide thumbs Also See for megaSun pureENERGY 5.0:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the megaSun pureENERGY 5.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KBL megaSun pureENERGY 5.0

Summary of Contents for KBL megaSun pureENERGY 5.0

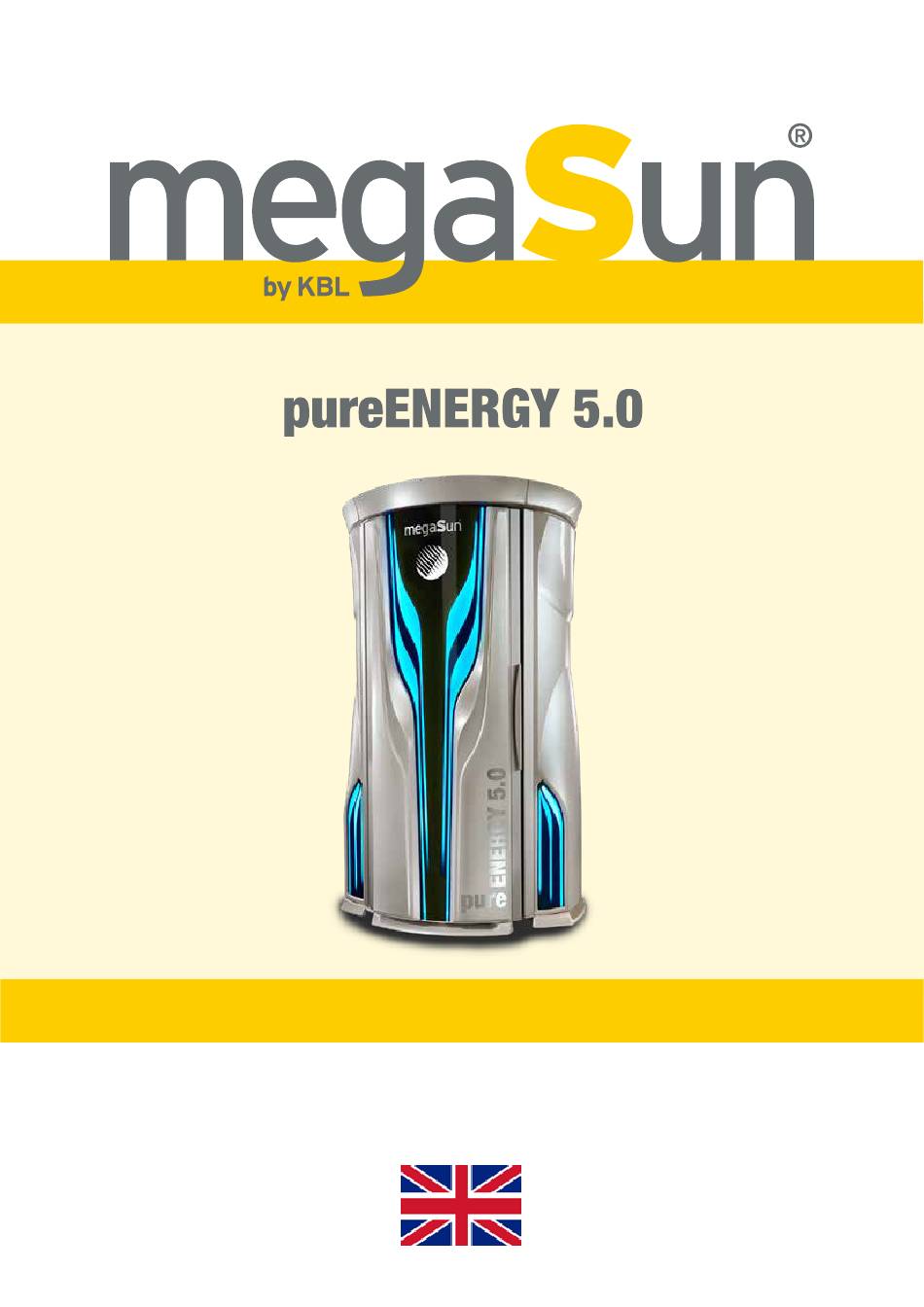

  • Page 1 OPERATING INSTRUCTIONS...
  • Page 3 Technical equipment and versions of the devices are in accordance with the legal prescriptions of the respective country of destination. Export to the USA and Canada of the KBL products, listed in this guide, or operation of the systems in these countries, are not permitted. KBL does not accept any manufacturers liability in case this direction is not adhered to.

  • Page 4: Table Of Contents

    Contents General information ..........5 Service menu - options ......... 25 About these instructions ......... 5 Set decorative lighting ........... 36 Safety signs ............. 5 Signal words ............5 Maintenance and cleaning ......... 37 Transport by forklift truck ........6 Instructions for cleaning and care ......

  • Page 5: General Information

    General information About these instructions This symbol indicates the danger of This operating manual is intended for use by burns from hot lamps and housing parts. • operating staff, If the tanning device was operated before being switched off and opened, •...

  • Page 6: Transport By Forklift Truck

    Old equipment disposal To accomplish the update download the “USB- Connect” software offered by KBL. For detailed This tanning device consists of information press the help-button in the main menu. components that cannot be thrown into the...

  • Page 7: Safety Notes

    Safety notes This chapter provides a summary of general infor- • Persons, who do not tan at all or cannot tan with- mation on safety and proper handling of the tanning out getting sunburn. device. More specific safety advice is given in other •...

  • Page 8: Duties Of The Operator

    Only use spare parts approved by KBL, otherwise system! operating authorization and terms of guarantee will Exhaust air -> become invalid. Only replace tubes and high pres- sure lamps with those listed on the tanning device.

  • Page 9: Description Of The Tanning Device

    Description of the tanning device Standards ① Door This tanning device complies with the following ② Door handle standards in their respectively applicable version: ③ Ceiling grab handle with interior control panel • EN 60335-2-27 • EMC 2014/30/EU ④ Ceiling design element with integrated fan •...

  • Page 10: Functionality

    Front view, door opened Functionality The ”Tower pureEnergy 5.0“ (simply called “tanning device” in the following) is intended for use for the ⑪ tanning of one single adult person at a time; this person must have a skin type that tolerates tanning. The client is standing upright while tanning.

  • Page 11: Connections - Audio

    Connections - Audio For information on further tanning device connections, refer your ASSEMBLY INSTRUCTION in the sec- tion “Connections & Initial operation”. Connecting an external audio source The cinch marked in the illustration is connected to the external audio source where the line-out of the sound player or the headphone/loudspeaker jack are available for connection.

  • Page 12: Bluetooth Connection

    EXTERNAL 100 V AUDIO SIGNAL (OPTIONAL FEATURE) If you decide for a connection to a 100 V audio system, you will need a transformer (KBL no.: 9100 0170 00) for the transmission of the audio signal. This connection must be made by trained and authorised personnel.
  • Page 13 COMPATIBILITY OF BLUETOOTH DEVICES KBL AG attaches great importance to hardware com- patibility. Due to the large number of manufacturers, KBL can not guarantee a 100 % compatibility. In rare cases, it may happen that a bluetooth connection can not be established.

  • Page 14: Start-Up

    Start-up Before switching on for the first time: TANNING MODE • Fix the supplied warning sign or one with the The tubes are switched on and a tanning session is following wording permanently to the wall close to in progress. While the tanning device is in tanning the tanning device: mode, the settings for the ongoing tanning session can be changed via the interior control panel.

  • Page 15: Tanning Instructions

    Tanning instructions As a rule, an averagely tanning skin has achieved • In cases of pronounced individual sensitivity or allergic reactions to UV-radiation, a physician should be con- a uniform tan after three to five tanning sessions. sulted before beginning tanning. These sessions should take place every second day.

  • Page 16: Tanning Times

    Tanning times Please refer to the following tables for learning the individually applicable tanning times that depend on the skin type. If the tanning session sequence is interrupted for 4 weeks or more, you will have to start with the first ses- sion again.

  • Page 17: Tanning Mode

    Tanning mode Operation during the tanning WARNING session Excessive dose of UV radiation You can control the functions of the tanning device via Excessively prolonged tanning sessions the interior control panel during the tanning session. may cause severe damage to skin and It is particularly easy for you to access the basic eyes.
  • Page 18 During the tanning session, you need quick access to basic functions such as volume control, body fan and aquaCool. You should also be in a position to change the subordinate functions. The interior control panel caters for both requirements. You have BASIC FUNCTIONS •...

  • Page 19: Basic Functions

    Basic functions max/on aquaCool Body fan An ongoing spraying process cannot be stopped. The body fan is auto- If the aquaCool supply is running low, a corre- matically controlled sponding message is displayed in the standby by ACS. As soon mode.
  • Page 20 AUDIO FUNCTIONS MODEL: ACTIVATING AUDIO FUNCTIONS There is a maximum of three audio sources available at the user’s disposal. If you change over to another source, you must ACTIVATE activate it first. The activation is effected by pressing the or the button.

  • Page 21: Standby Mode / Service Mode

    Standby mode / service mode While the tanning device is in standby mode, you can Switching the decorative switch the decorative lighting of the tanning device lighting on and off on and off and trigger an aquaCool spraying test (1 spraying cycle).

  • Page 22: Service Menu - Basics

    SERVICE MENU - BASIC OPERATION Service menu - Basics The service menu is divided into the main menu and SERVICE MENU - STANDARD OPERATING subordinate groups of functions. ELEMENTS If you choose a menu item, e.g. “AUDIO”, you will get After having entered the service CODE, the service access to all functions related to this item.
  • Page 23 CHANGE SETTINGS STORE & EXIT • Save your settings by pressing the button 3 • Depending on the respective function, you can (STORE). If you fail to do so, the system will not change values, select options and switch functions take over the changes you made.

  • Page 24: Service Menu - Overview

    Service menu - Overview KBL-7 VERSION: 01.53 ENVIRONMENT AROMA ① Language ㊹ Aroma ② Contrast ㊺ Aroma status reset ③ TIME AND DATE ㊻ Cycle time ④ TIMER DECORATIVE LIGHTING ㊼ Aroma cabin automatic ⑤ Maximum tanning time ㊽ Aroma cycles per hour ㊾...

  • Page 25: Service Codes

    Service codes Service menu - options SERVICE-CODE LEVEL 1 In order to avoid operating errors, read Access to the service menu start window is pro- through the basics at the beginning of tected by CODE 1. When delivered, this CODE is the “Service Menu”...
  • Page 26 ③ The menu item „Timer decorative lighting“ offers you ENVIRONMENT 03/05 two switching cycles (A and B) for each day of the TIME AND DATE week. > press ENTER Entry of date and time. Invoke the submenu by NOTE - SWITCHING CYCLES pressing START (ENTER).
  • Page 27 ⑤ ④ ENVIRONMENT 05/05 ENVIRONMENT 04/05 Maximum tanning time TIMER DEKOLIGHT > > press ENTER > 5min .. . 45min Entering switching times for the decorative lighting. Sets the maximum tanning time for all timers. In the easyCare operating mode, the setting has been The submenu is invoked by fixed to 30 minutes.
  • Page 28 ⑨ ⑬ HOUR METERS 04/04 PRESELECTION 04/06 Number of sunbaths Aircon (Aircondition) > 0000 Reset: press `-` for 2s > 2 sec. = reset Not available in this system. Indicates the number of tanning sessions (sunbaths) and includes a reset function. ⑭...
  • Page 29 ㉒ ⑱ AUDIO 07/22 AUDIO 03/22 Studio channel selection megaVoice language > bcd > > English > > puls code > German > off > ... Allows for the change-over between pulse-code Fixes the language setting of the megaVoice system. and BCD-code mode with the Studio music signal The following languages are fully supported: pending and deactivates the external-channel...
  • Page 30 ㉖ ㉛ AUDIO 11/22 AUDIO 16/22 Default volume tanning Treble MP3 - USB > > > 0 .. . 9 > -14 .. . +14 dB Sets the volume for the tanning mode. Sets the treble for MP3 - USB operation. Factory setting: 6 Factory setting: +14 dB ㉗...
  • Page 31 ㊱ ㊶ AUDIO 21/22 AQUA 04/06 High-bass Studio Line-in aquaCool start testcycle > > Start: press `+` for 2s > -14 .. . +14 dB Sets the high-bass for studio music operation. Starts the aquaCool test (1 cycle). Factory setting: +08 dB ㊲...
  • Page 32 ㊾ ㊺ AROMA 02/07 AROMA 06/07 Aromastatus reset TIMER AROMA > Reset: press `-` for 2s > press ENTER Not available in this system. Not available in this system. ㊿ AROMA 07/07 ㊻ Aroma start testcycle AROMA 03/07 > Start: press `+` for 2s Cycle time >...
  • Page 33 EASYCARE 01/03 SERVICE\SERVICE-CODE 01/02 SETTINGS service code level 1 > press ENTER > press SET to enter code Not available in this system. Enter new service code 1 and repeat the entry. Service Code-Level 1: entry: repeat: 00000 00000 UV-LEVEL 01/01 press ‚0‘...
  • Page 34 SERVICE 07/11 SERVICE/BLUETOOTH 01/02 RGB-Setup NAME megaSun: > > > 01 - 99 To fit your Studio environment (multiple units) differ- Not available in this system. ent numbers can be added to the bluetooth device name (megaSun xx) of each tanning device. SERVICE 08/11 Factory setting: 01...
  • Page 35 SERVICE 09/11 EVENTLOG 01/01 SOLARIUM IDENTIFICATION > > press enter Show the characteristics of the tanning device: Lists the latest 99 events (error codes & info- - Configuration code messages). Detailed information is available by - Variant code pressing the Start button. - Serial number Example: time...

  • Page 36: Set Decorative Lighting

    Set decorative lighting COLORMOTION CONTROLLER For remote control of the color mode, you may use Decorative lighting our colorMotion controller. Available only for tanning On / Off devices with LED technology. Program selection switch colorWheel Brightness or frequency increase / decrease To control the eason color mode of the tanning colorMotion controller - control elements device use the stylish colorMotion controller with its...

  • Page 37: Maintenance And Cleaning

    • Depending on the level of knowledge required to cleansing agent and disinfectant “megaClean plus“ carry out maintenance work, it may only be done by supplied by KBL and dilute it according to manufac- “trained persons” or exclusively by “qualified and turer instructions.

  • Page 38: Maintenance Intervals

    Maintenance intervals REMOVING ACRYLIC PANES Component/ Cleaning Replacement wearing part The illustration shows the disassembly at the door. Typical value after Disassembling of sides and rear wall is carried out in Tubes After approx. about 800 operating - Electronic 200 operating hours.

  • Page 39: Tubes

    INSTALLING ACRYLIC PANES After the pane and the tubes (if necessary) have been cleaned, reinsert the pane into the guide rails and close the side covering strip. Tubes By regularly cleaning the tubes you can help pre- serve their tanning power. •...

  • Page 40: Replacing The Unit Lighting

    • If aquaCool is not used for one week, clean the system before the next application. Use the KBL cleaning set 5100003061 for this purpose. O p e r a t i n g I n s t r u c t i o n s | megaSun tower pureEnergy 5.0...

  • Page 41: Aquacool Nozzles

    • Screw the cover. REPLACE THE AQUACOOL FILTER Replace the aquaCool filter as specified in the chapter on Maintenance Intervals . Use the KBL spare parts kit 5100003062 for this purpose. aquaCool nozzles After 1000 hours of operation, the aquaCool noz- zles must be replaced in order to ensure that the aquaCool system functions properly.

  • Page 42: System Messages

    System messages ERROR MESSAGES After the error has been eliminated, all error messages must be acknowledged by pressing START on the interior control panel. Status message Description Remedy Excess temperature Check the air-intake/air-discharge system. Let Bimetal switch triggers. bimetal the tanning device cool down. Enabling signal from coin-box system comes in longer than the time value Maximum tanning time!
  • Page 43 INFORMATION MESSAGES Info. message Description Remedy The content of the aquaCool canister is Replace the empty aquaCool canister with a full Fill level aquaCool canis- sufficient for another 2.5 hours of op- one. Do not replace aquaCool with any other liq- ter low eration with a spraying time of 6 sec- uid.

  • Page 44: Technical Data

    /h / Exhaust-air socket - Diameter 300 mm Exhaust-air hose Diameter 300 mm Unit data megaSun pureEnergy 5.0 - UV type 3 and 0.3 W/m in compliance with EN 60335-2-27 Tubes 52x ultimate 2008 R 180W - Item no: 3230076116...

  • Page 45: Views

    Views Front view RHS view, door opened 1843 mm (≈72,56 inches) 1395 mm (≈54,93 inches) Top view RHS view with central exhaust air module 332 mm (≈13,07 inches) 2175 mm (≈85,63 inches) O p e r a t i n g I n s t r u c t i o n s | megaSun tower pureEnergy 5.0...
  • Page 46 Remarks O p e r a t i n g I n s t r u c t i o n s | megaSun tower pureEnergy 5.0...
  • Page 48 Ringstraße 24-26 56307 Dernbach / Germany fon: +49 (0) 26 89.94 26-0 fax: +49 (0) 26 89.94 26-66 mail: megaSun@kbl.de www.megaSun.de...
